Liquid filling equipment
Liquid Filling Machines for Bottles and Production Lines
Choose a filling machine around your liquid, bottle, fill volume, target output and factory layout. LEKA can review a standalone filler or plan filling with capping, labeling and conveying for a connected bottle line.
Soft-tube filling and sealing is a different family from bottle liquid filling. For collapsible plastic, laminated, or aluminum tubes, see the automatic tube filling and sealing machines. Bottle and liquid projects stay on this page.
Machine selection
Choose an Automatic Liquid Filling Machine for Your Production Plan
Compare how bottles are presented to the filler, how many filling heads are needed and whether the machine must connect to a wider line. Final equipment selection depends on your product and package samples.
- Water-like liquidsStart with the LEKA-FLWS gear-pump series.
- Foam or drip controlStart with a servo pump filler and confirm the nozzle on samples. Compare FLDT, FLSF and FLSFZ.
- Liquids with particlesSend a sample before choosing a pump. Do not treat a sauce with pieces as a water-like fill.

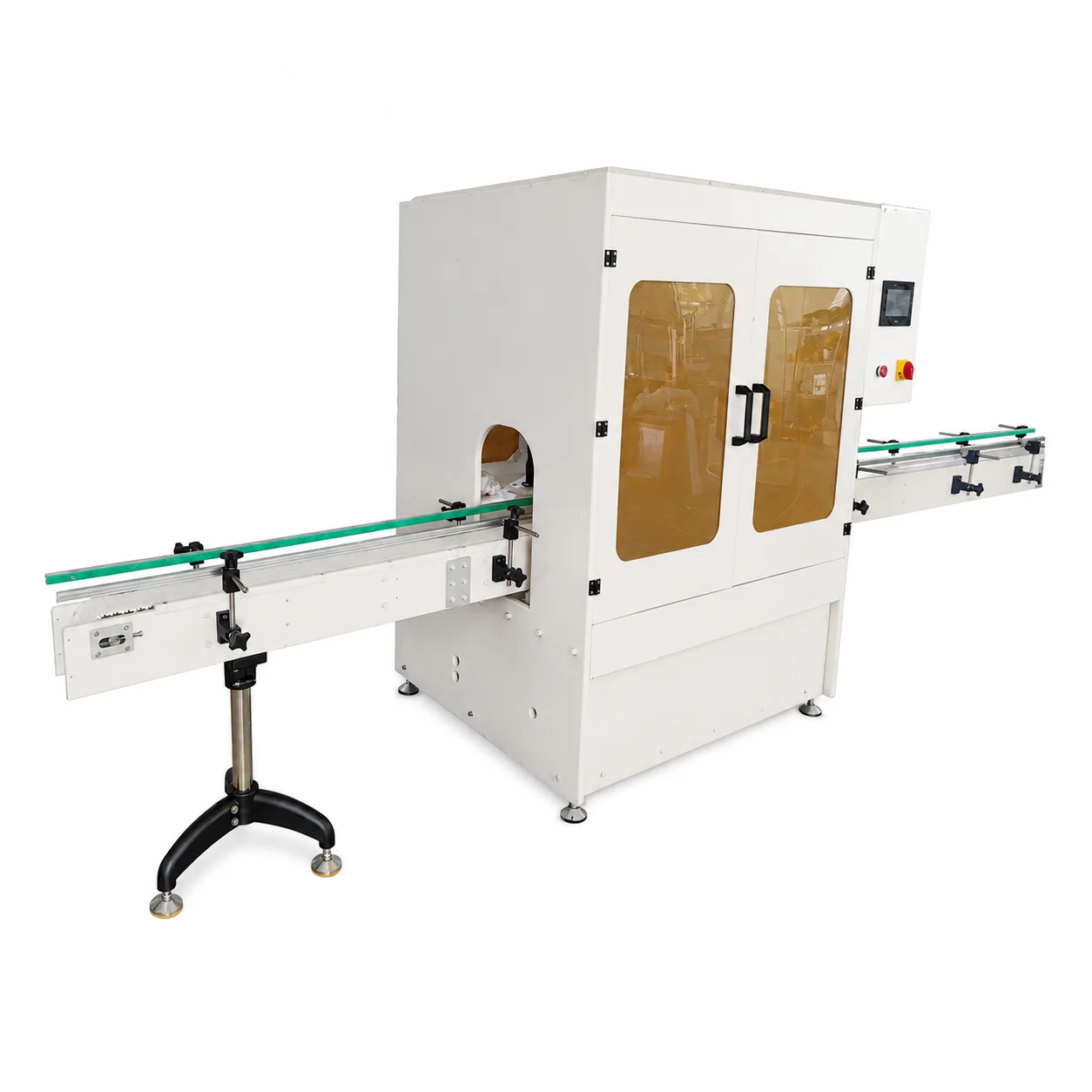

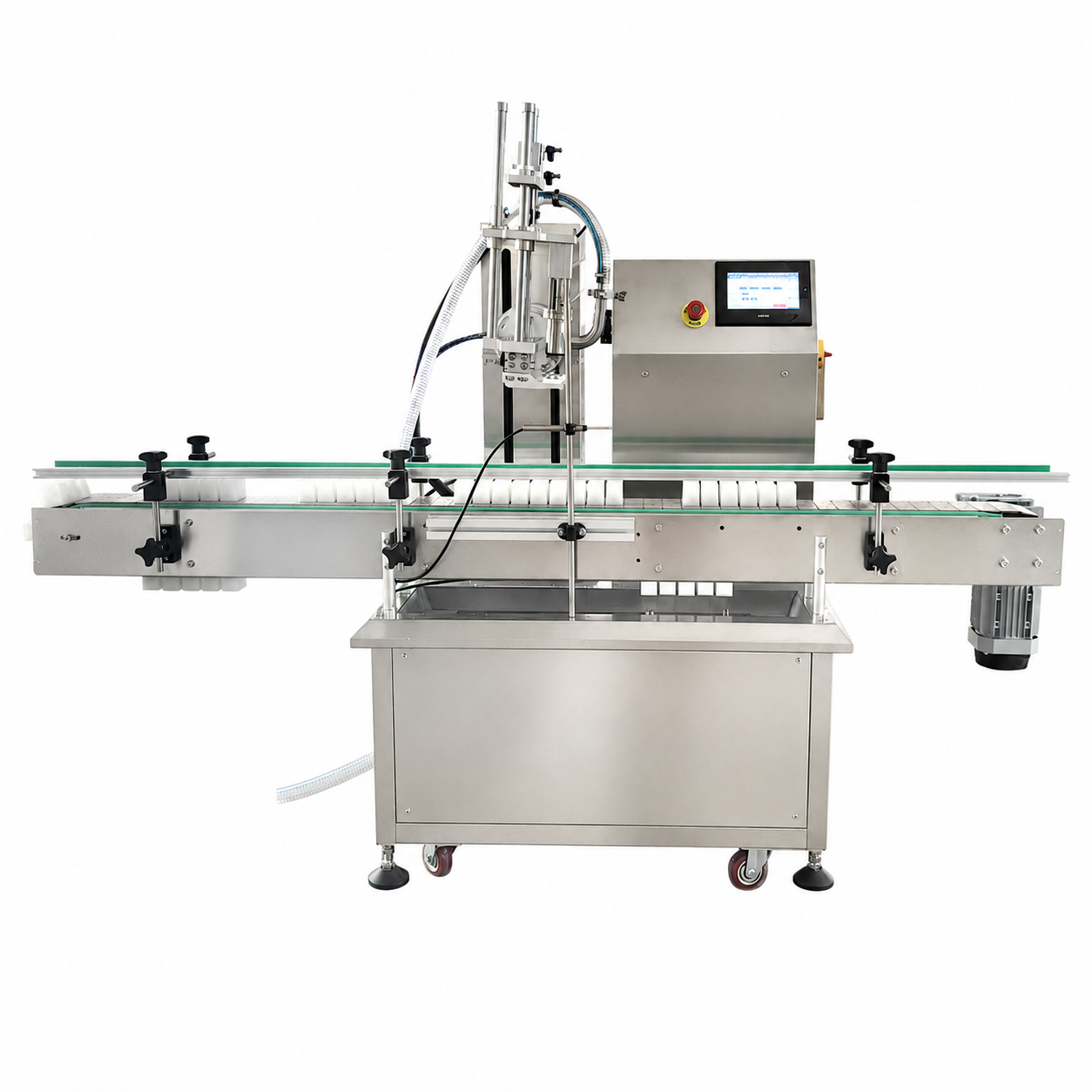

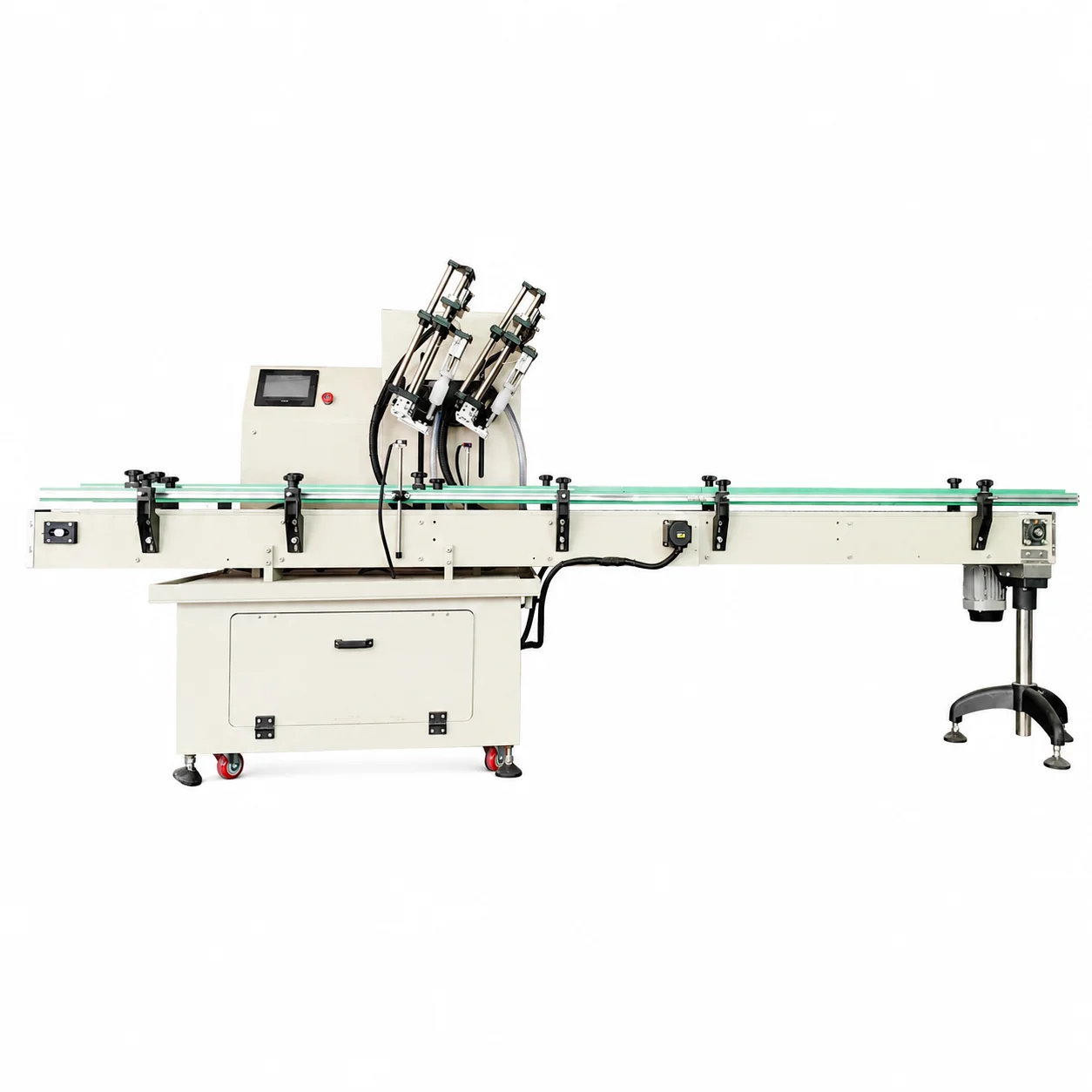

- Corrosive liquidsConfirm contact materials on the chemical filling page before selecting a model.
- Heavy pails and drumsFor 10–25L pails and 50/60–220L drums, review the drum and pail weighing filling line.

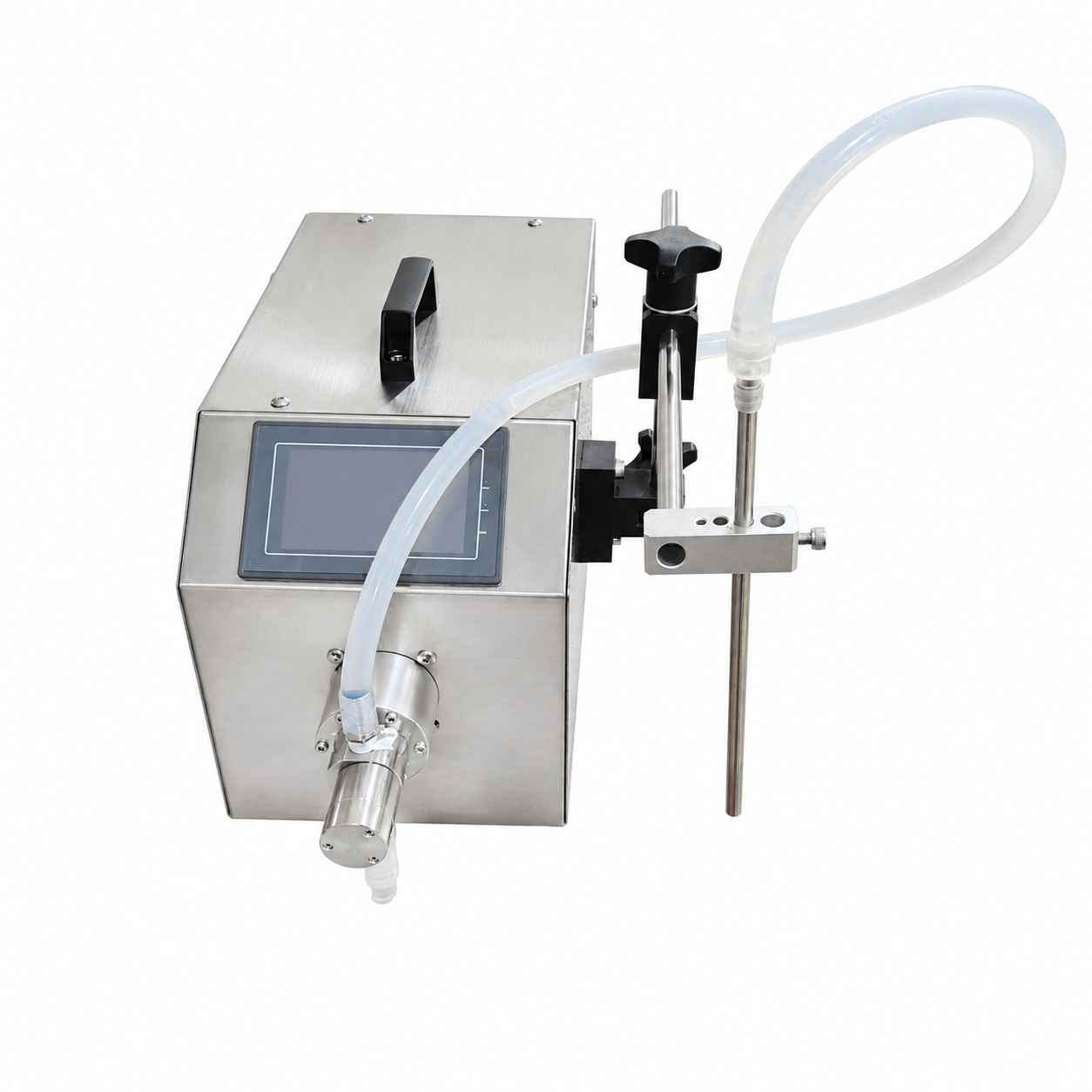

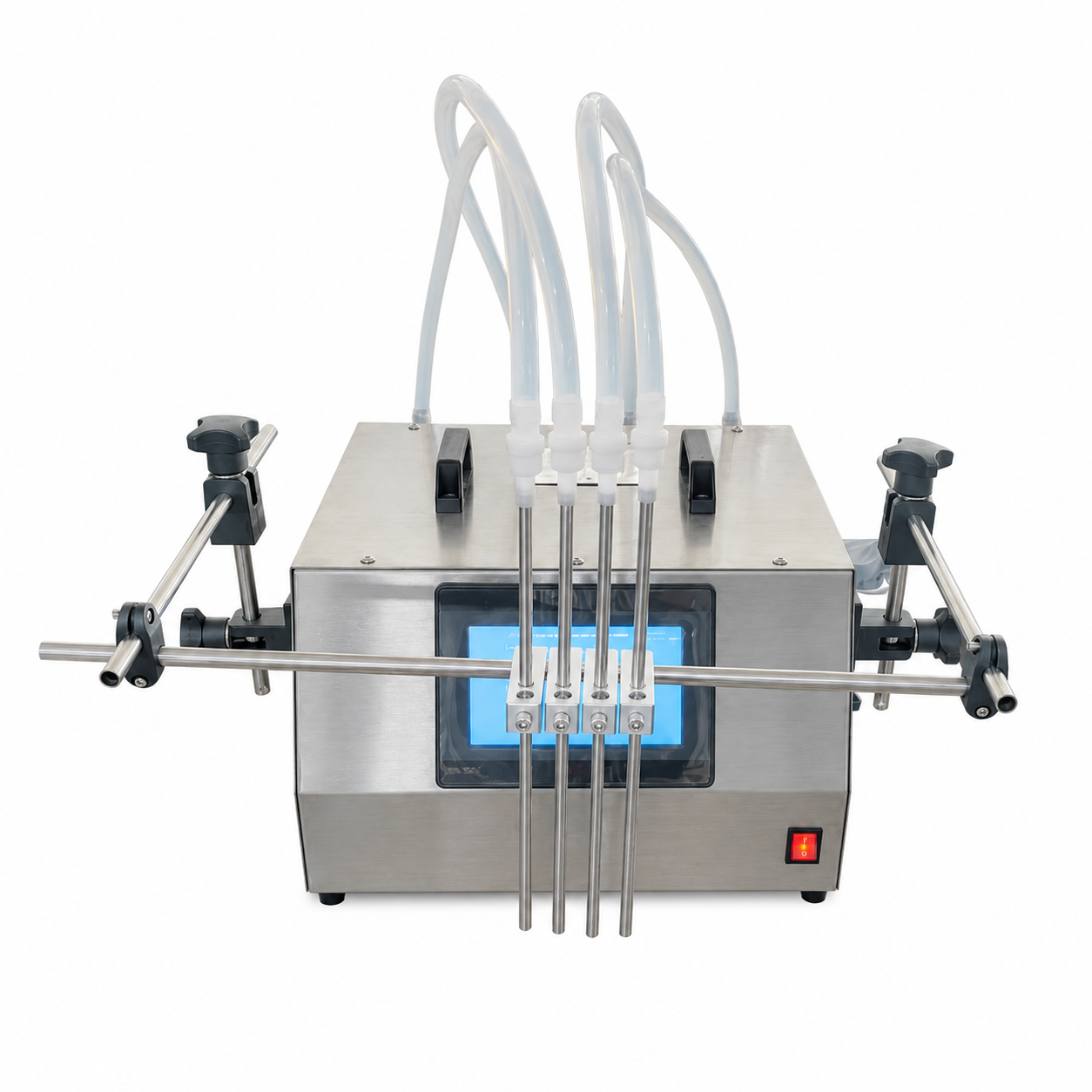

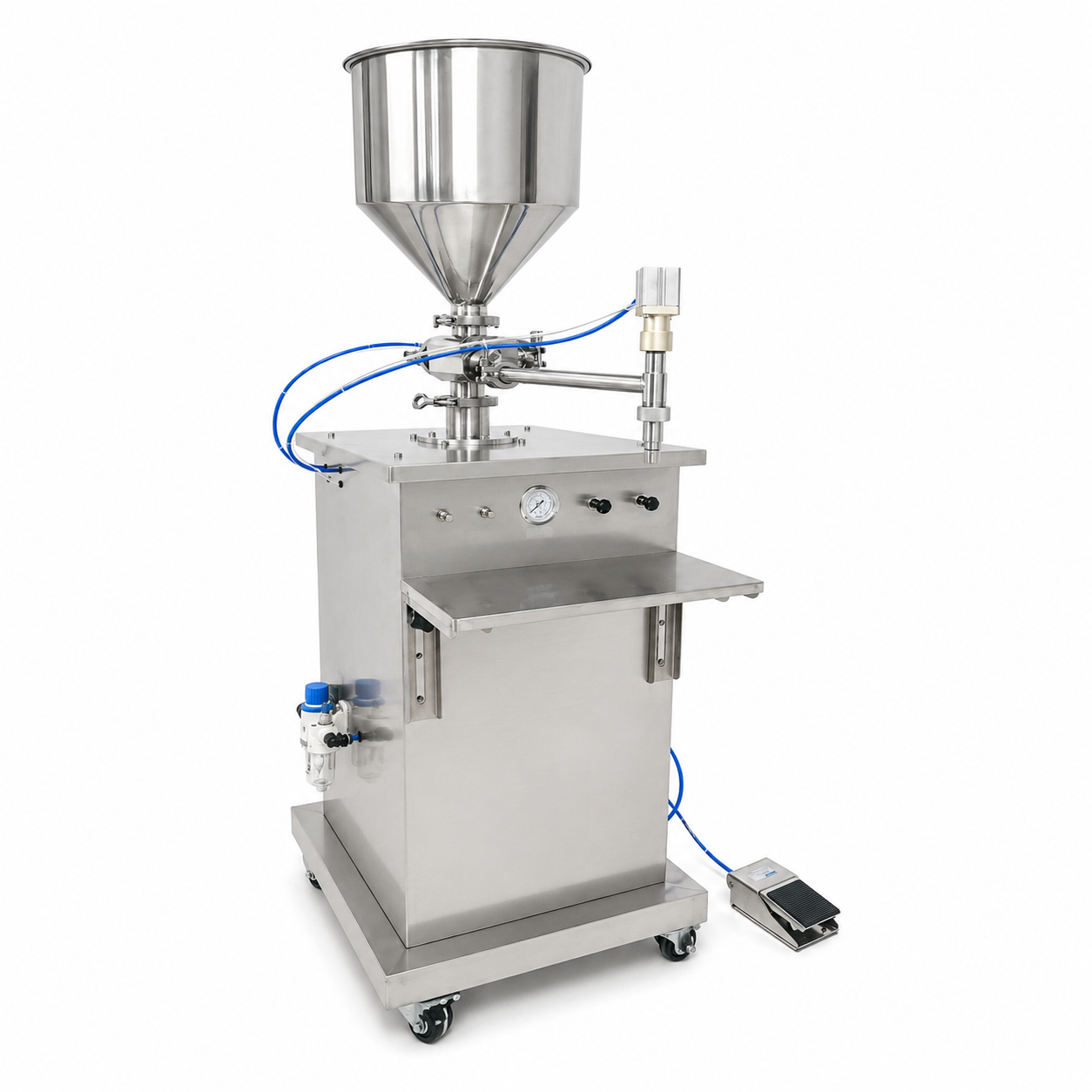

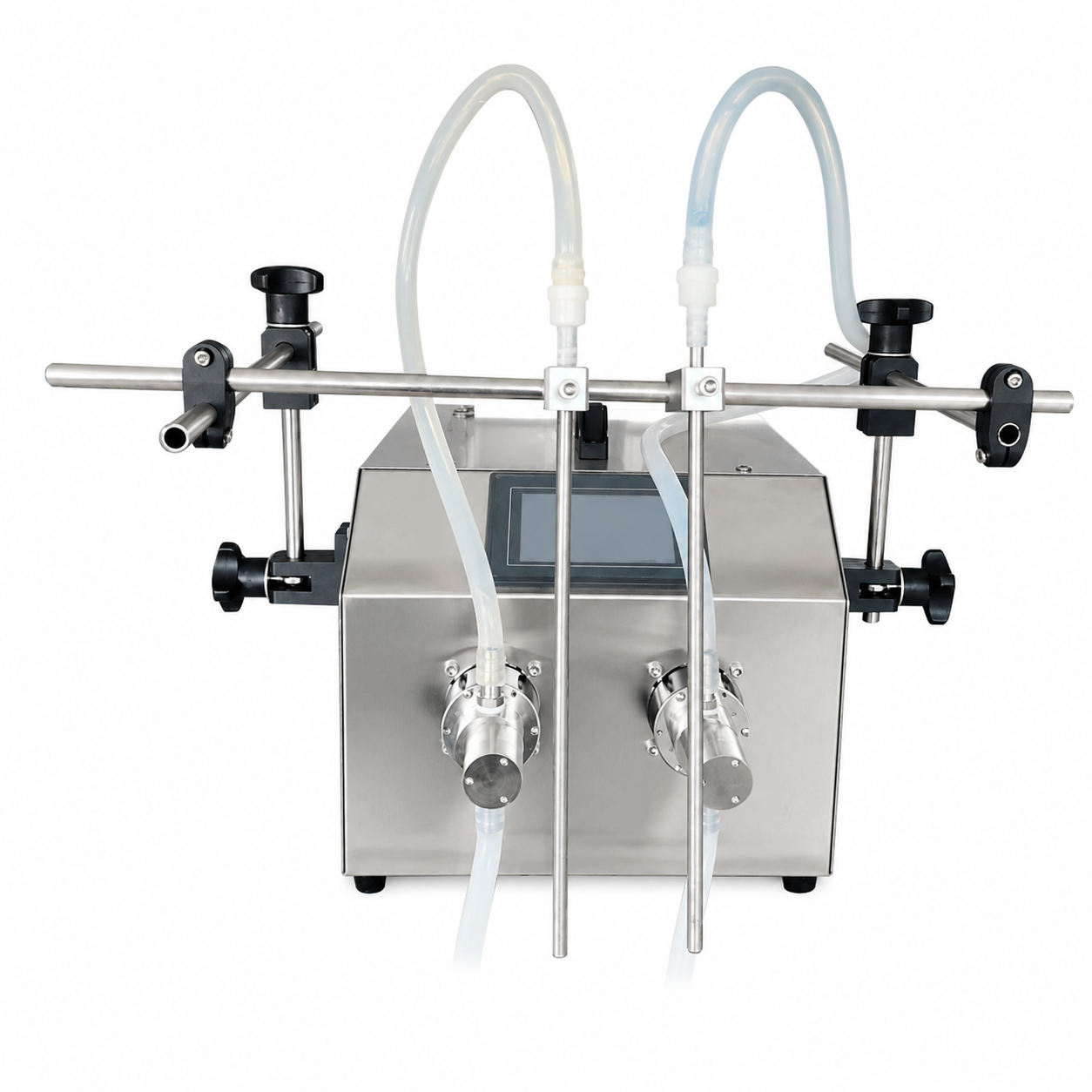

LEKA-BZDSemi-Automatic Filling
Automatic metering with manual bottle handling offers a practical starting point for modest output and operator-led batches.
Reference output target200–350 BPH/1000ml; confirm with product samples and operator workflow.
View LEKA-BZD Series

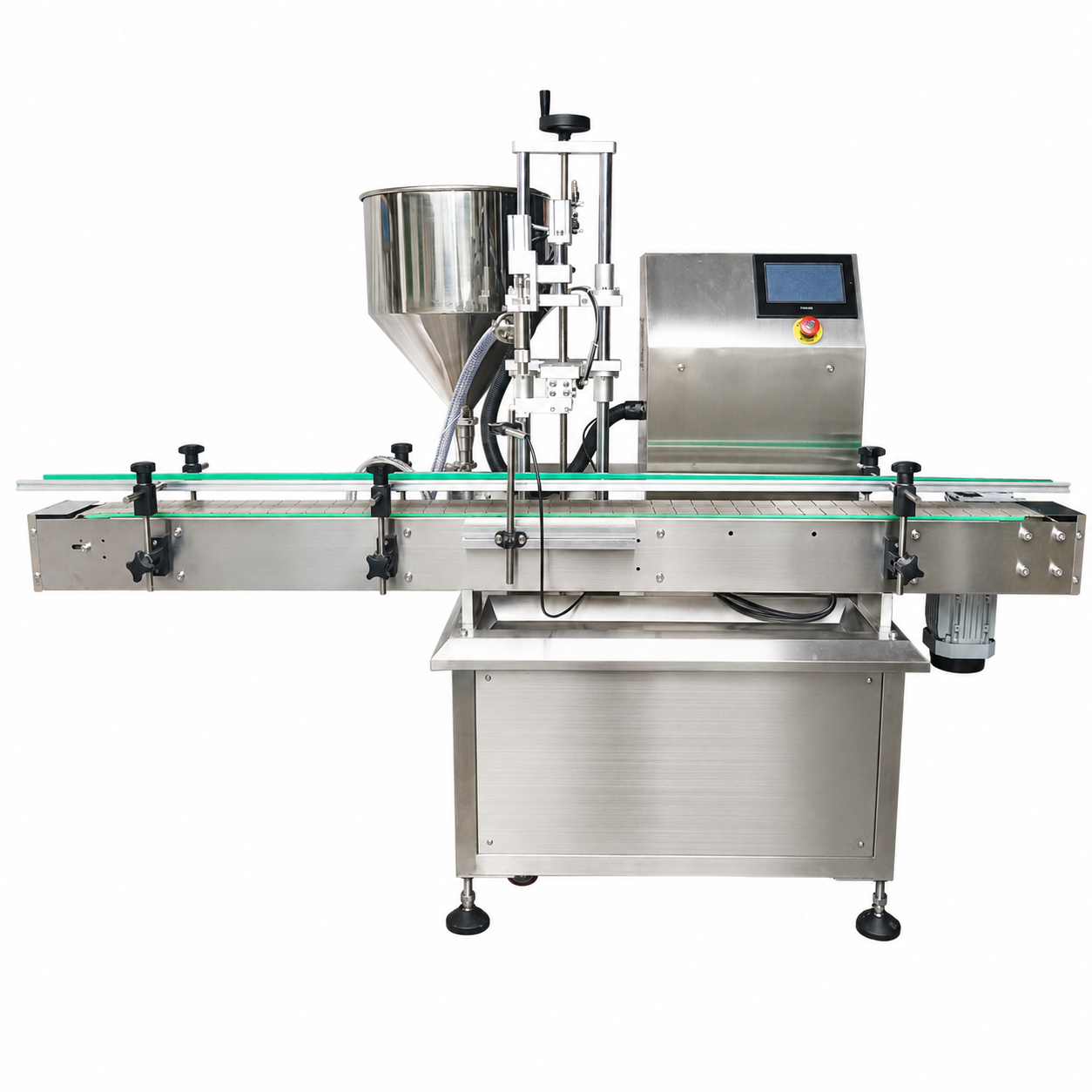

LEKA-FLDTSingle-Head Servo Pump Filling
Use one controlled pump head for smaller fills needing faster cycles or larger fills at a lower output target.
Published model referenceFLDT-CLB01: 1,800–2,800 BPH/500ml.
View LEKA-FLDT Series
LEKA-FLSFMulti-Head Servo Filling
Multi-head servo filling supports higher-output automatic production. Match head count and fill cycle to your liquid and bottle line.
Published model referenceFLSF-06-C: 2,000–2,800 BPH/1000ml, 100ml–5000ml. FLSF-04-A, 4 heads: 240–480 barrels/h, 5L–30L.
View LEKA-FLSF Series

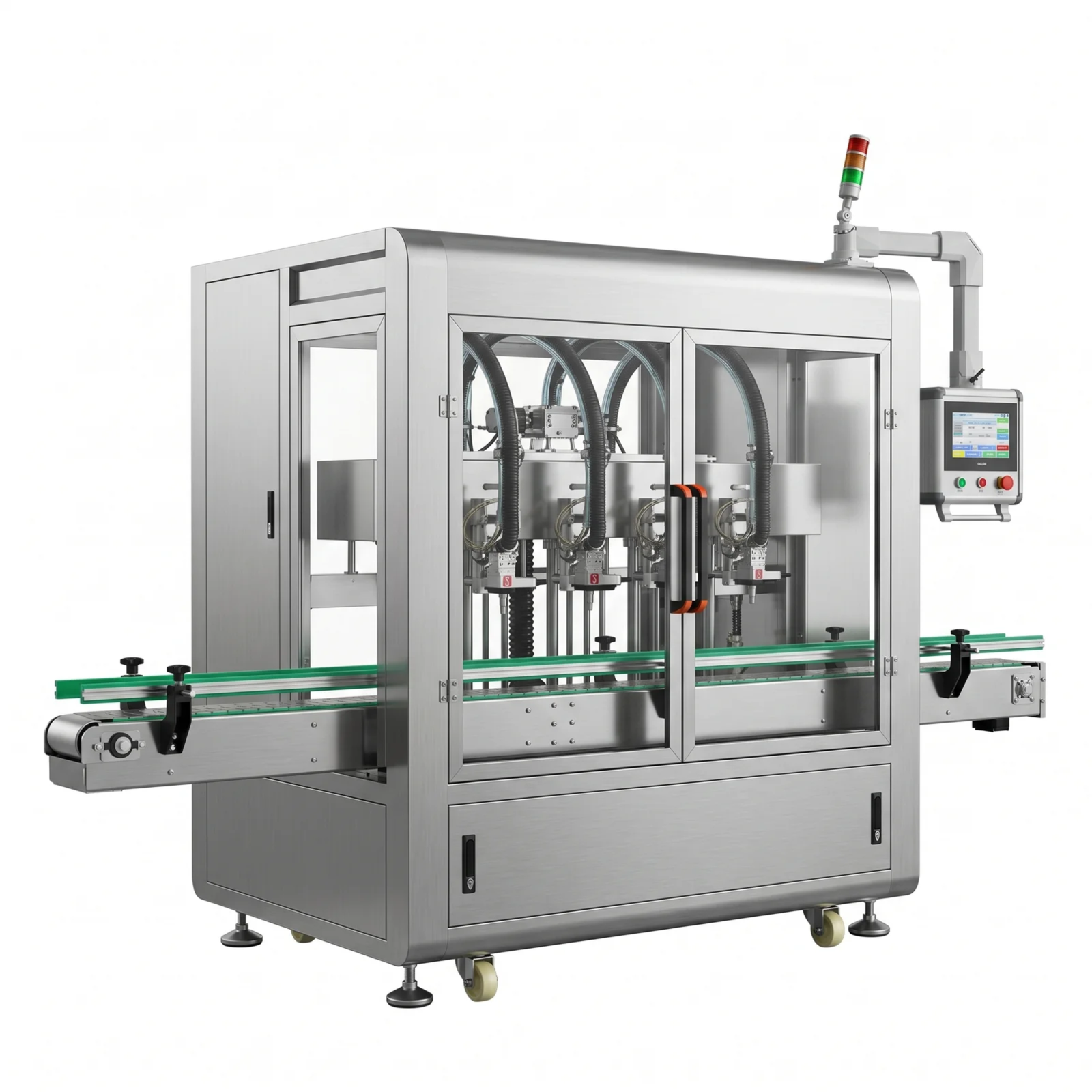

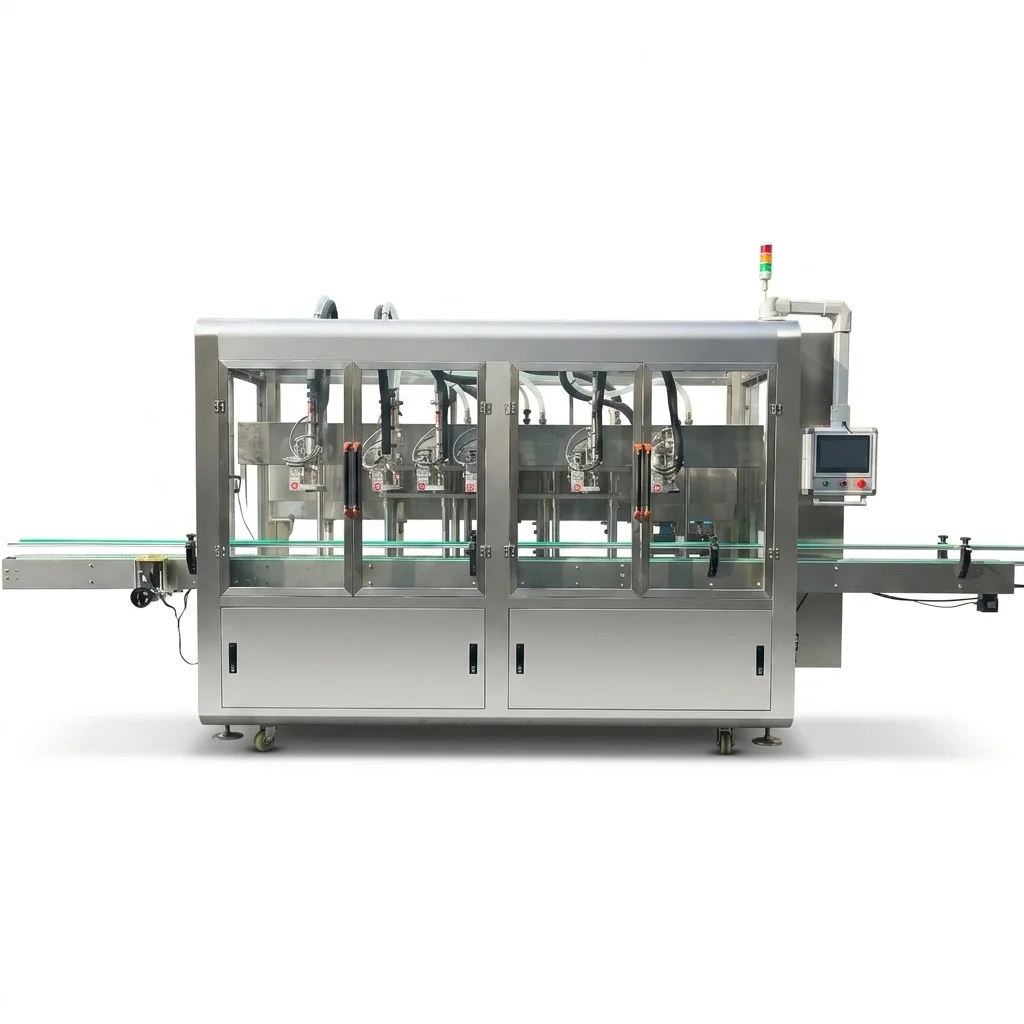

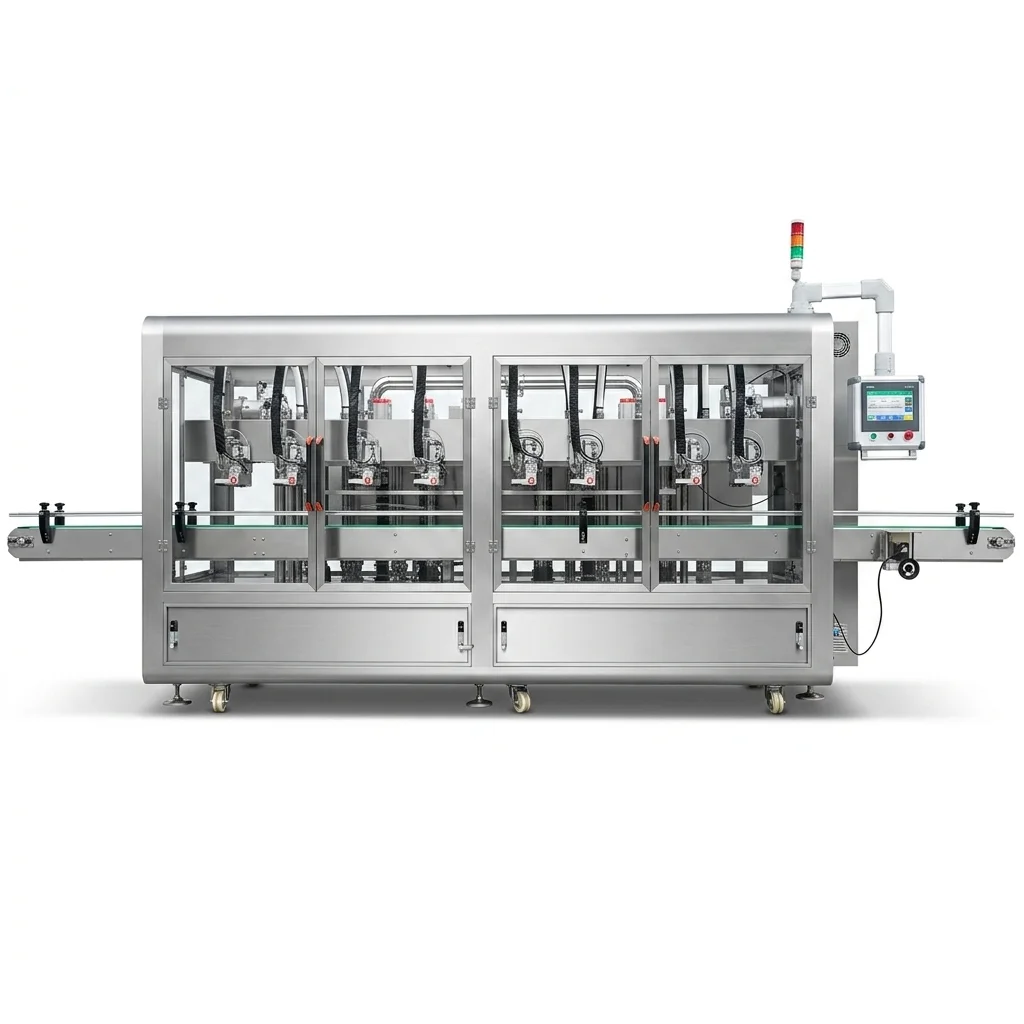

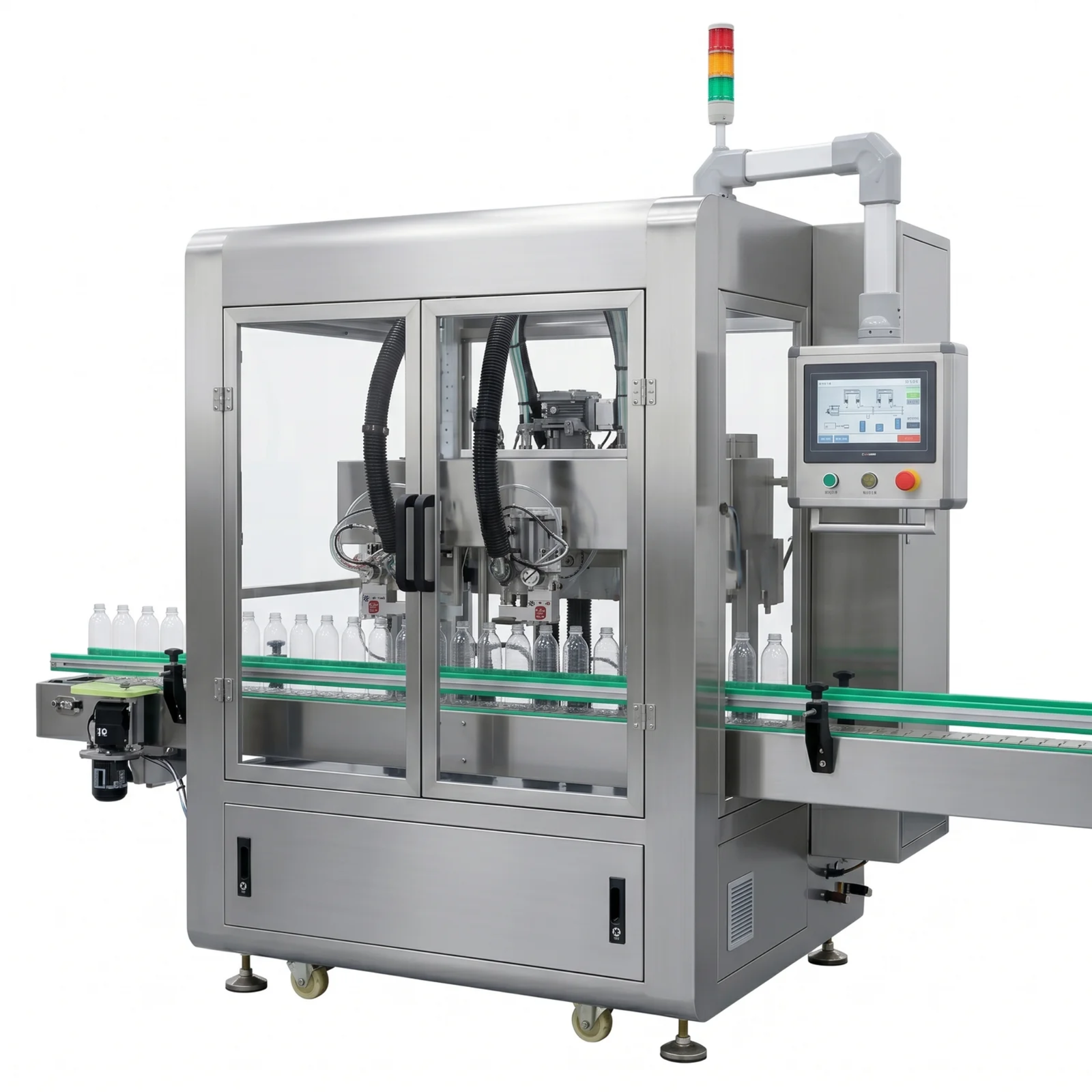

LEKA-FLSFZTracking Servo Filling
Tracking heads fill bottles while they move, supporting faster automatic lines when container stability and transfer are matched. Compared with conventional stop-and-fill operation, tracking filling can run at approximately 2× the speed under matched product, container and line conditions.
Published series referenceFLSFZ-02-A, 2 heads: 2,000–2,800 BPH/1000ml, 100ml–5000ml.
View LEKA-FLSFZ Series

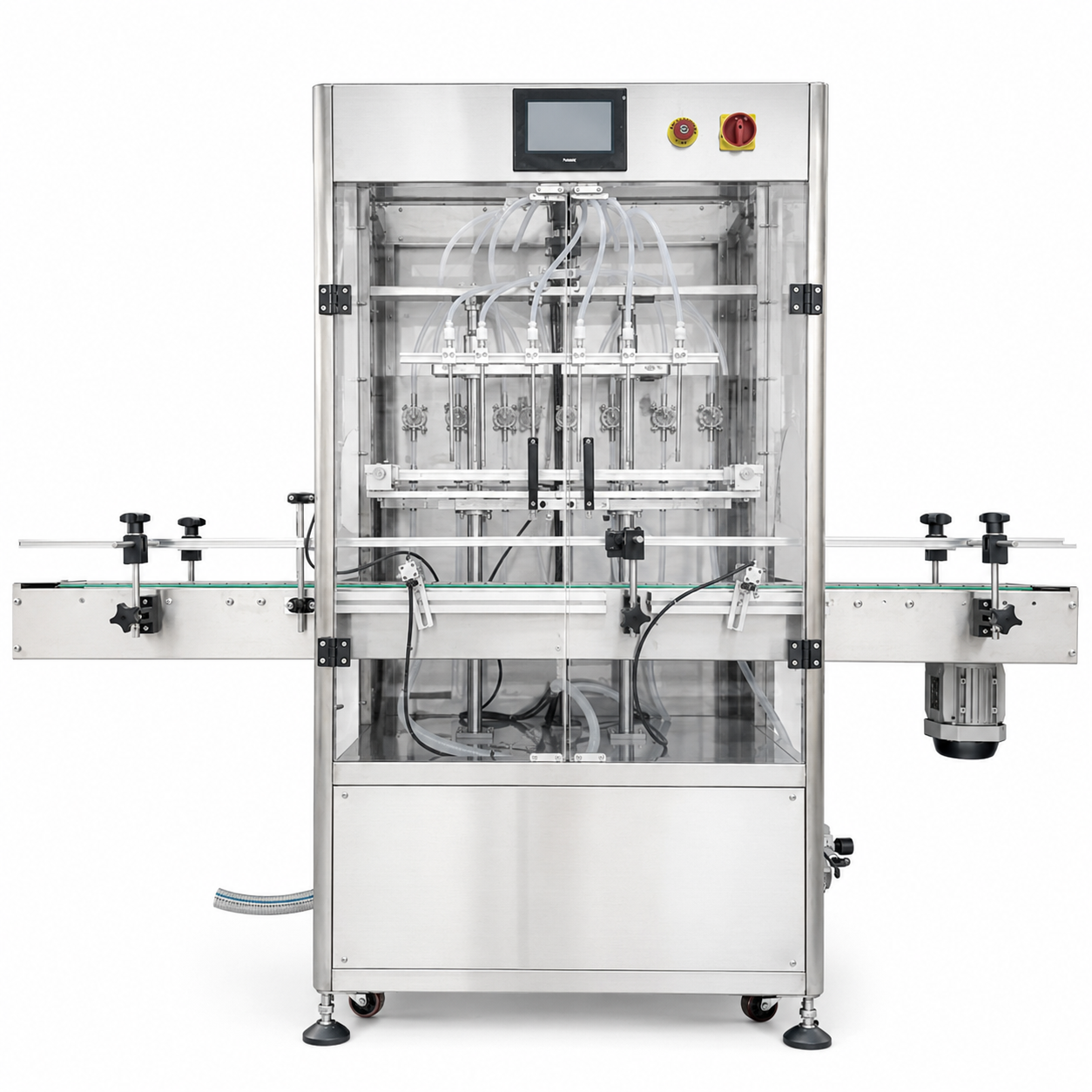

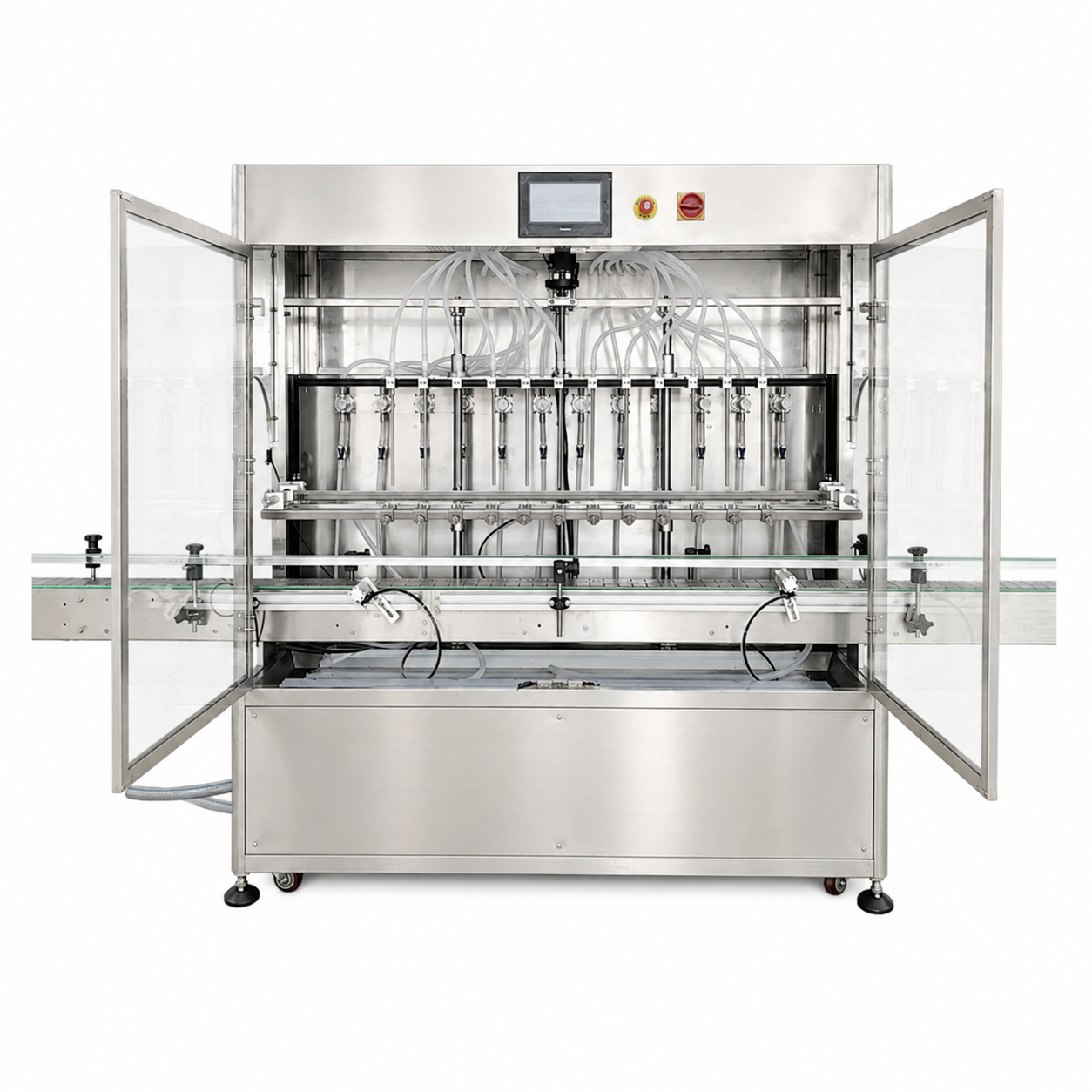

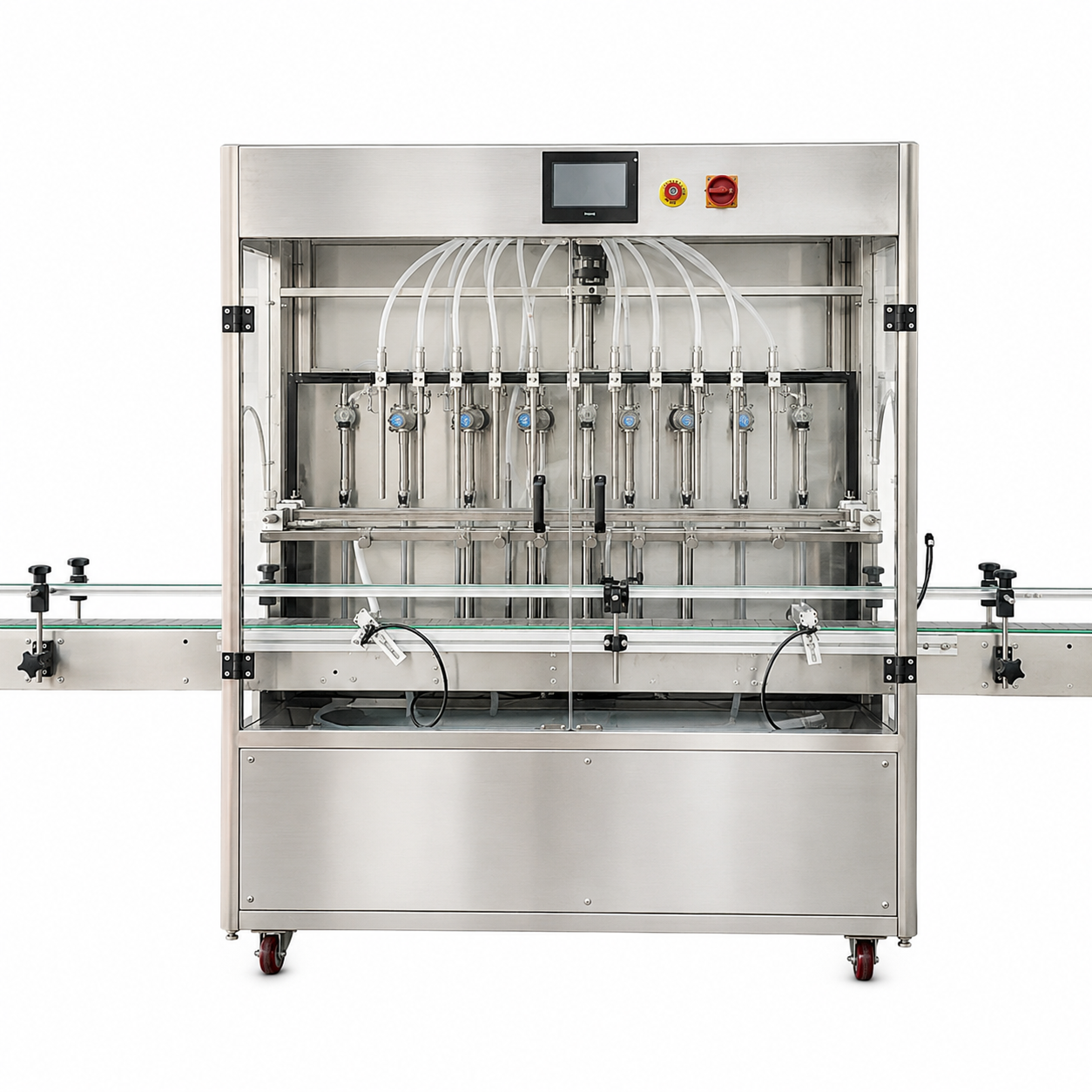

LEKA-FLWSWater-Based Gear Pump Filling
For water-like liquids and larger fill volumes, the FLWS gear-pump platform can be customized from 2 to 16 filling heads to match the required capacity.
Custom head configuration2–16 filling heads. Representative 8-head output: 1,600–3,000 BPH/1000ml.
View LEKA-FLWS Series
LEKA-DPWFDrum & Pail Weighing Filling Line
For heavy pails and drums: destack or position containers, net-weight fill, then press the lid or close the cap. Suited to paints, coatings, chemicals and lubricants in 10–25L pails and 50/60–220L drums, with 1000L IBC available by project.
Project / line referenceSemi-auto up to ~40 drums/hour; automatic drum line up to ~120 drums/hour. Confirm with product and workflow.
View Drum & Pail Filling SolutionsSeries comparison
Compare Representative Liquid Filling Machines
Compare representative machines from each LEKA filling series, including the 4-head high-capacity model. Head count, reference output, filling range and machine size help narrow the selection. The output basis is shown on each row.
Swipe sideways to see output, range, size and accuracy.
| Series / Representative Model | Filling Heads | Reference Output | Filling Range | Machine Size (mm, L×W×H) | Reference Filling Accuracy |
|---|---|---|---|---|---|
| LEKA-BZD-CLB01 Semi-automatic, small-batch production | 1 | 200–350 BPH/1000ml | 100ml–30L | 550 × 350 × 400 | ±1% |
| LEKA-FLDT-CLB01 Single-head servo pump filling | 1 | 1,800–2,800 BPH/500ml | 100ml–30L | 2,000 × 850 × 1,700 | ±0.03–0.05% |
| LEKA-FLSF-06-C Multi-head servo filling | 6 | 2,000–2,800 BPH/1000ml | 100ml–5000ml | 4,000 × 950 × 1,750 | ±0.03–0.05% |

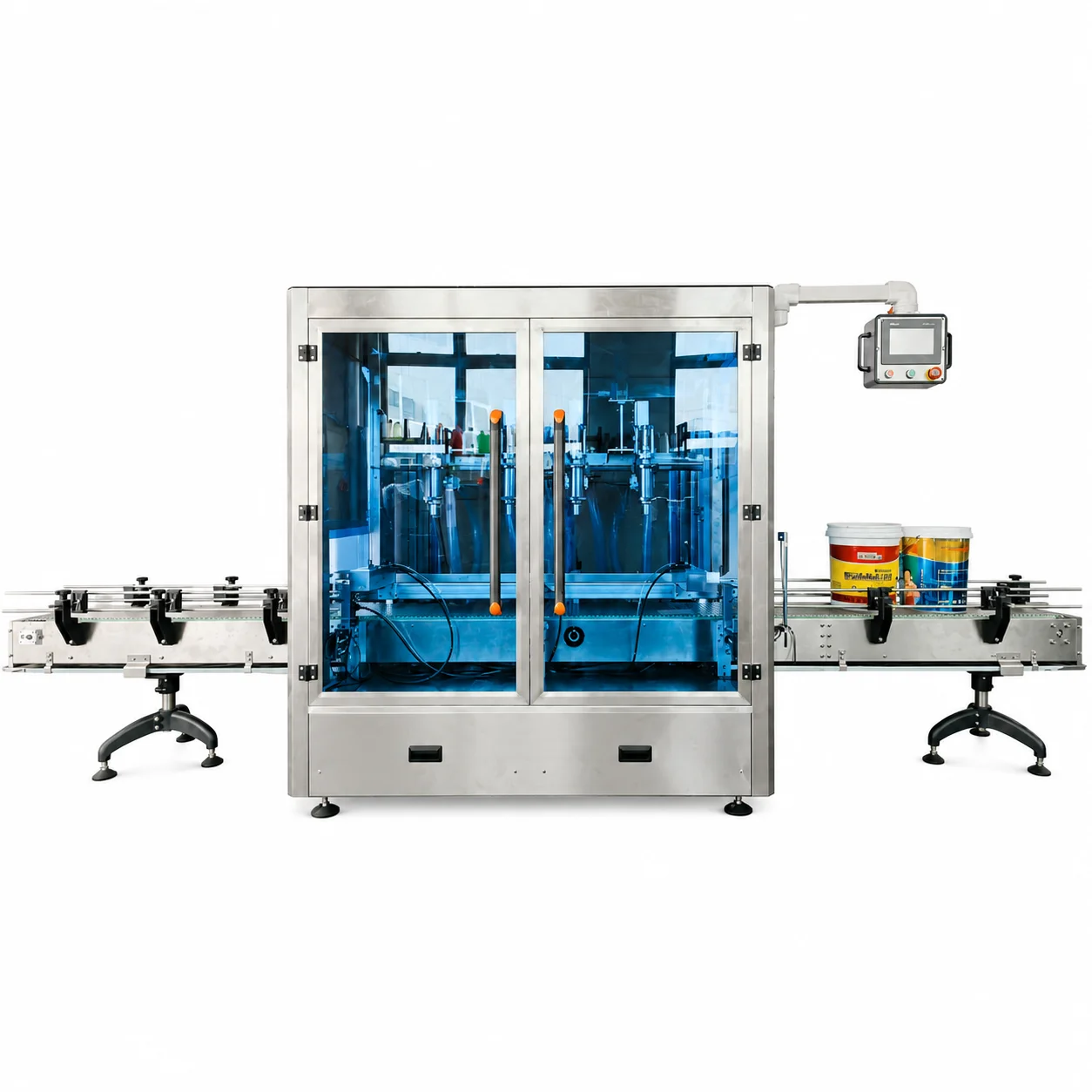

| LEKA-FLSF-04-A 4-head high-capacity servo filling | 4 | 240–480 barrels/h | 5L–30L | 4,000 × 1,050 × 1,750 | ±0.03–0.05% |
| LEKA-FLSFZ-02-A Continuous tracking servo filling | 2 | 2,000–2,800 BPH/1000ml | 100ml–5000ml | 2,000 × 950 × 1,720 | ±0.03–0.05% |
| LEKA-FLWS-CLB08 Water-based gear pump filling | 8 | 1,600–3,000 BPH/1000ml | 100ml–30L | 2,000 × 850 × 1,700 | ±0.03–0.05% |
All figures are project reference values. Output basis and filling range are shown on each row. Machine size is length × width × height. Final output and filling accuracy are confirmed through sample testing before production.
Project examples
These pages show what was delivered on that project. A speed published there belongs to that line, not to the comparison table above.
- Thailand mango juice line Tracking fill, automatic cap feeding, four-wheel capping and conveyor for juice without pulp. The page does not include labeling or bottle washing in the delivered scope.
- Thailand edible oil line A clear-bottle project for 1 L and 2 L oil. Read the speed on that page as a project result only.
- Australia lubricant line Eight-head servo filling, cap handling, capping and double-side labeling for that lubricant.
Find your application
Match the Filler to Your Liquid and Container
Use the closest application page to review the questions that matter for your product. LEKA can then check the exact liquid, bottle and requested production scope.
Water-Based Liquids
Review bottle handling, fill range and output for water-like products.
Explore Water-Based FillingEdible Oils
Plan around oil temperature, bottle neck, fill volume and drip control.
Explore Edible Oil FillingSauces and Dressings
Confirm texture, particles, temperature, container opening and cleaning needs.
Explore Sauce FillingCosmetics and Personal Care
Review the product, bottle shape, nozzle and changeover plan together.
Explore Cosmetic FillingCleaning and Chemical Liquids
Confirm product compatibility and contact materials before choosing equipment.
Explore Chemical FillingBottle Filling Equipment
Compare container handling and automatic filling options for your bottle project.
Explore Bottle Filling MachinesBottle fit

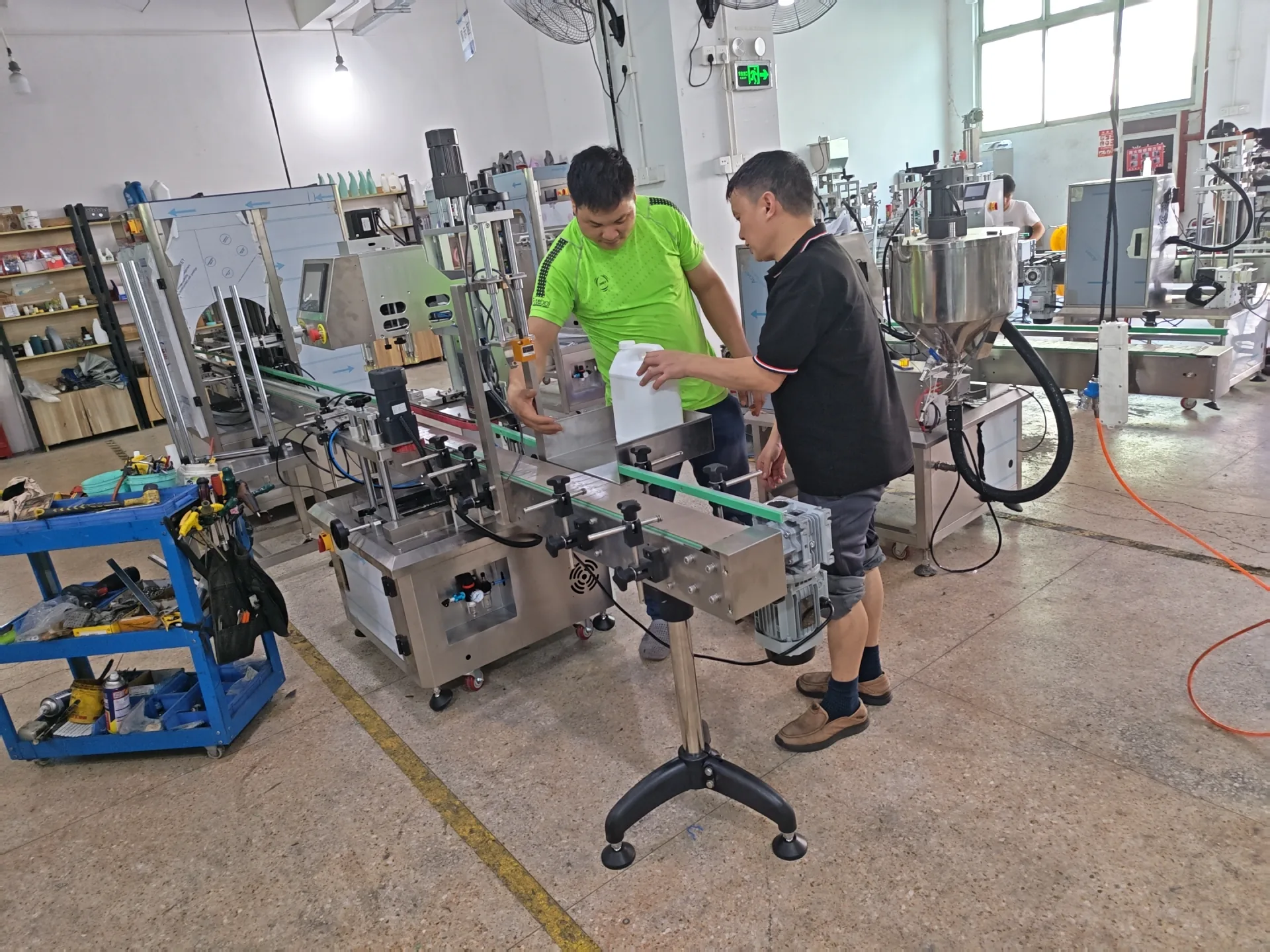

Check Every Bottle Before Selecting the Machine
Share your smallest and largest container, even when both use the same liquid. Bottle height, body width, shape, neck opening and stability affect guide rails, nozzle entry, spacing and change parts.
- Container photos, drawings or samples
- Material, body dimensions and neck opening
- Fill volumes and frequency of changeover
- Caps, labels and required output for each format

Line integration

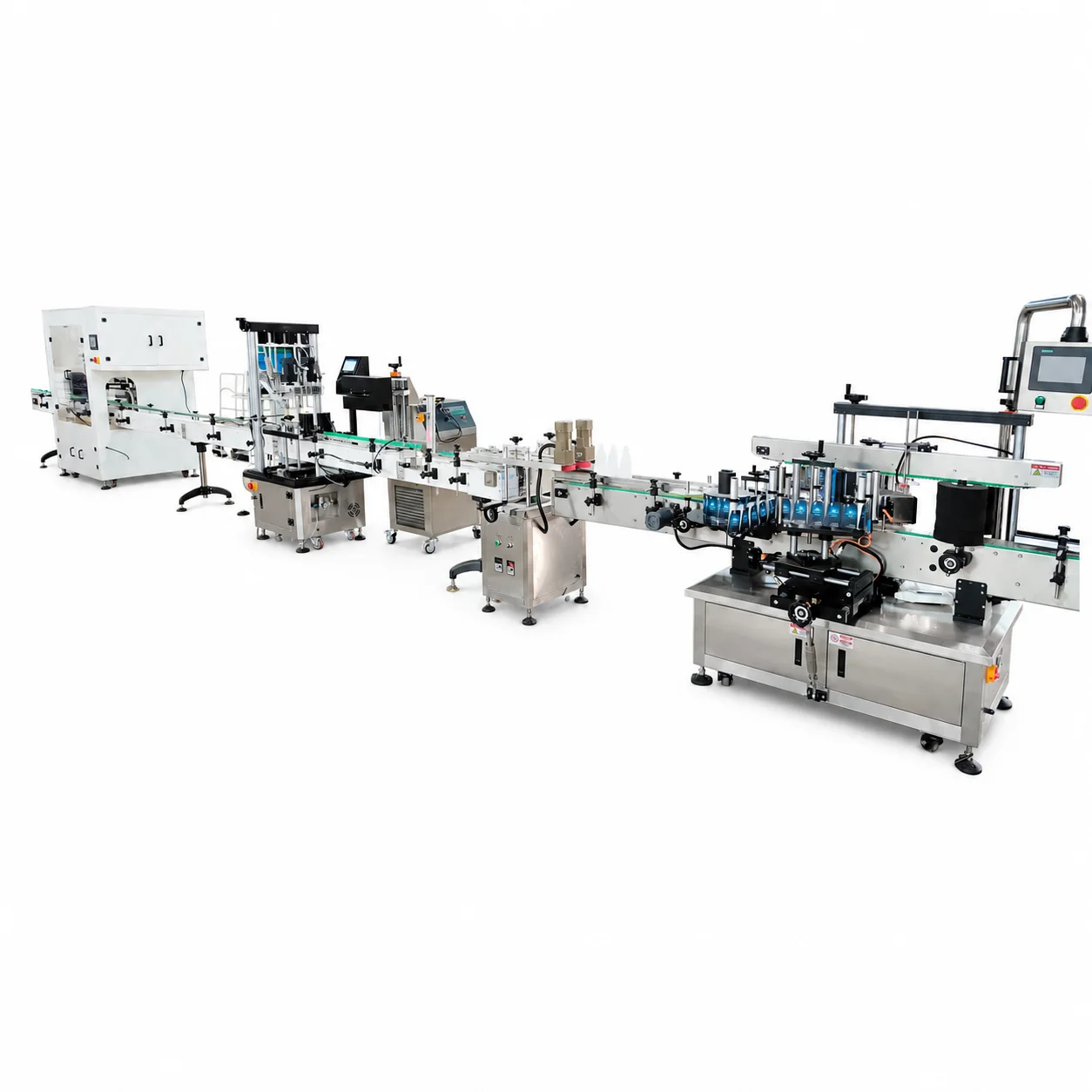

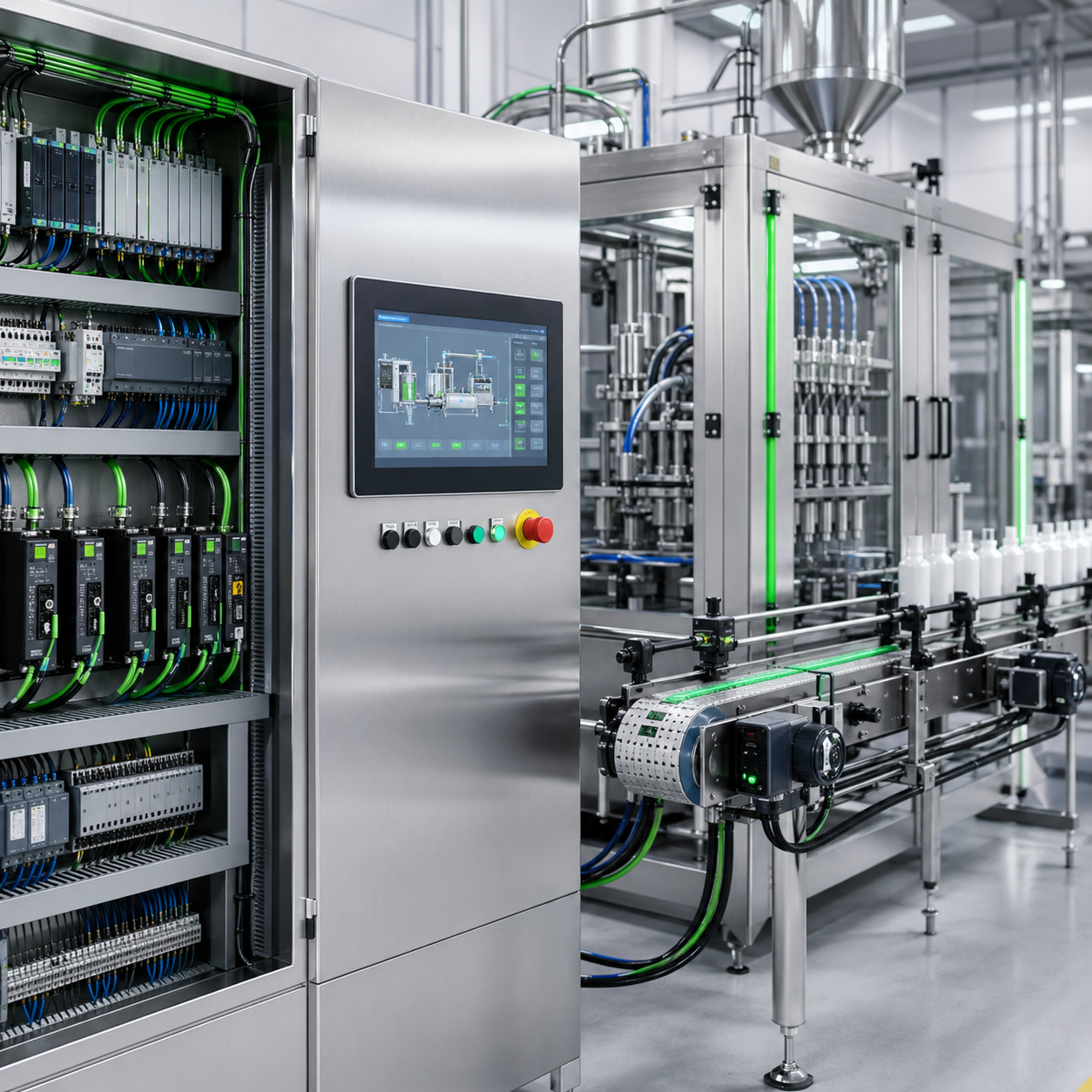

Connect Filling with Capping and Labeling
For a connected bottle filling line, define the bottle route, closure, label position, coding needs and operator access before fixing the machine scope.
- FillMatch dosing, nozzles and bottle movement to the liquid and target output.
- CapPlan cap feeding, placement and tightening after filling. Explore Capping Machines
- LabelMatch label format, bottle shape and application position. Explore Labeling Machines
Also confirm conveyor transfer between stations and where date or batch marks are applied. Outer carton sealing is quoted separately when the project needs it.
Explore Complete Liquid Filling Lines
Open the other equipment hubs
Buyer questions
Questions to Resolve Before Quotation
Can one machine fill several liquids?
That depends on the products, contact materials, dosing method and cleaning process. Send each liquid planned for the same machine so changeover can be reviewed.
Can one filler handle several bottle sizes?
Share the complete range of bottles and fill volumes. The required adjustments depend on neck opening, body dimensions, stability and nozzle position.
Should we request a standalone filler or a complete line?
Tell LEKA which steps your factory already handles and which must be connected. A complete proposal can include filling, capping, labeling and conveying when required.
Guides for Common Buyer Questions
Read the guide that matches the question, then send the product and bottle details for a quotation.
Request a project review
Send Your Liquid, Bottle and Output Requirements
Include product details, container sizes, fill volumes, target output, cap and label type, voltage and available floor space. LEKA can review a suitable filler or a connected packaging line around that scope.
Request a Filling Proposal
