LEKA GZWS-CLB Water-Based Liquid Filling Machine Series

Water-Based Liquid Filling Machine

LEKA GZWS-CLB water-based liquid filling machine series covers six-head, eight-head, ten-head, and twelve-head filling configurations for water-based liquid products. It can be selected as a standalone liquid filling machine or planned with conveyors, capping, labeling, coding, and downstream packing equipment according to bottle samples, filling volume, output target, voltage, and factory layout.

← Back to Filling Machine Center

Filling Range10–5000 ml / 100–10000 ml

Available Heads6 / 8 / 10 / 12 heads

Reference Speed1200–4000 bottles/hour

ApplicationWater-based liquid products

Overview

The GZWS-CLB water-based liquid filling machine series is used for water-based liquid filling projects where filling volume, bottle stability, and output requirement need to be matched carefully. The series includes six-head, eight-head, ten-head, and twelve-head configurations, with reference speeds from 1200 to 4000 bottles per hour depending on model, filling volume, and line conditions.

For B2B production planning, this machine should not be selected only by head count. Bottle dimensions, bottle rigidity, product flow behavior, target output, compressed air condition, industrial voltage, and downstream automation should be reviewed together. LEKA can also evaluate this unit as part of a wider filling machine line with capping, labeling, and packing equipment.

Multiple Head ConfigurationsSix-head, eight-head, ten-head, and twelve-head layouts can be reviewed according to target bottles per hour and bottle handling stability.

Water-Based Liquid FillingThe series is positioned for water-based liquids and similar low-to-medium viscosity products. Foaming, corrosive, or non-standard products require sample testing.

Servo Lifting OptionsCLB10 and CLB12 configurations include servo lifting and drop filling descriptions in the supplied product sheet. Final nozzle movement should be confirmed by bottle height and filling requirement.

Line Integration SupportConveyors, bottle detection, capping, labeling, coding, and packing sections can be evaluated during layout planning for a complete liquid filling line.

Available Models

GZWS-CLB06

Six-head small-capacity filling machine for 10–5000 ml water-based liquid filling. It is suitable for projects that require smaller filling volumes and controlled filling accuracy after sample confirmation.

6-head10–5000 mlSmall capacityLiquid filling

GZWS-CLB06-12L

Six-head high-capacity filling machine for larger filling volumes. The usable filling range should be confirmed against bottle size, product flow behavior, and required output.

6-headHigh capacity100–10000 mlLiquid filling

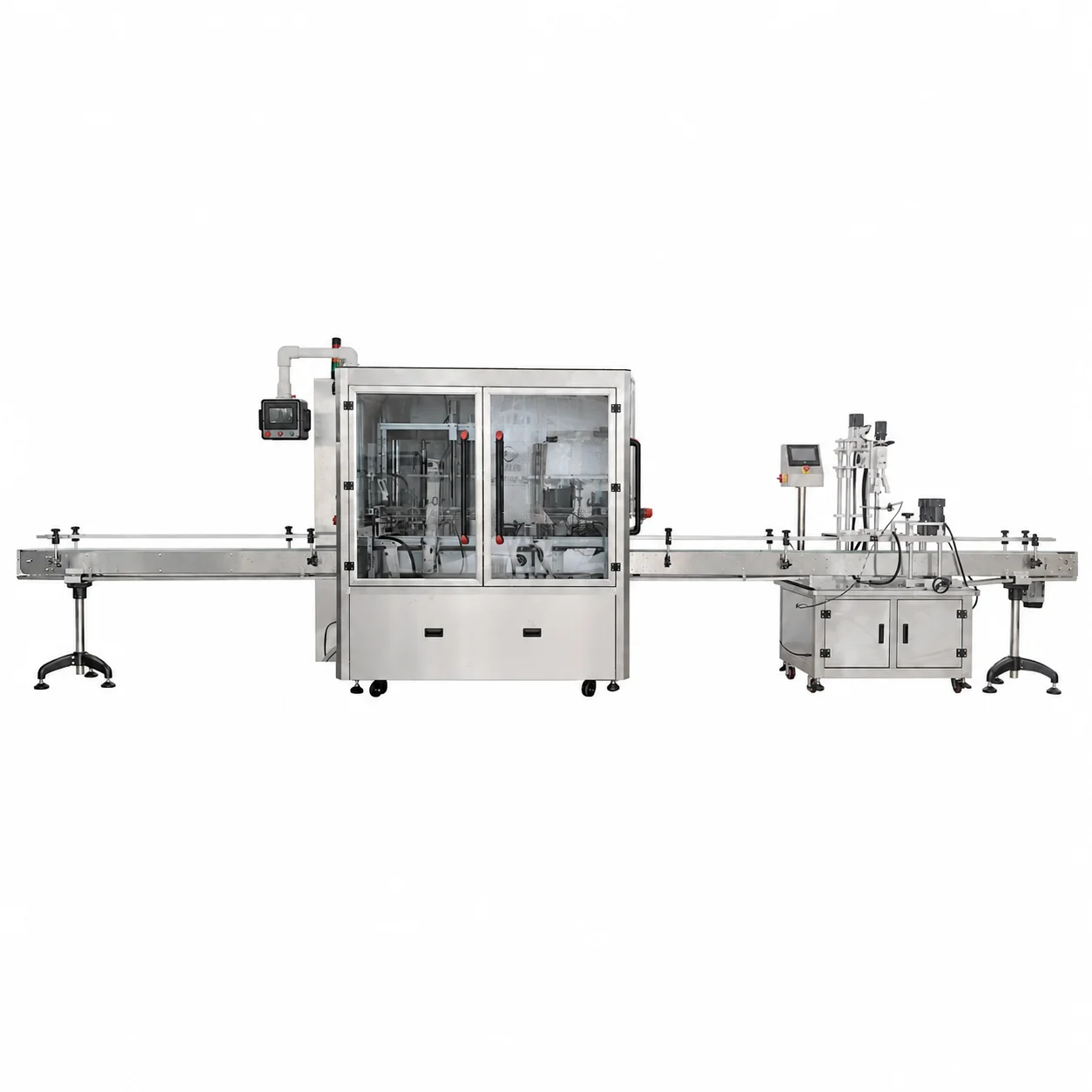

GZWS-CLB08

Eight-head liquid filling machine for water-based liquid products. Final speed and filling stability depend on filling volume, bottle shape, and conveyor handling.

8-head1600–3000 b/hLiquid fillingCustom confirmation

GZWS-CLB10

Ten-head liquid filling machine with servo lifting and drop filling configuration. It can be evaluated for projects requiring higher output and stable bottle positioning.

10-headServo liftingDrop filling2000–3000 b/h

GZWS-CLB12

Twelve-head water filling machine with servo lifting and drop filling. It is used for higher-throughput water-based liquid filling projects after sample and layout review.

12-headWater fillingServo lifting2800–4000 b/h

Model Comparison

View Larger

Parameter	GZWS-CLB06	GZWS-CLB06-12L	GZWS-CLB08	GZWS-CLB10	GZWS-CLB12	Notes
Machine Name	6-head Small Capacity Filling Machine	6-head Big Capacity Filling Machine	8-head Liquid Filling Machine	10-head Liquid Filling Machine	12-head Liquid Filling Machine	Names follow the supplied parameter sheet; final configuration should be confirmed before quotation.
Model	GZWS-CLB06	GZWS-CLB06-12L	GZWS-CLB08	GZWS-CLB10	GZWS-CLB12	Model selection depends on filling volume, target speed, bottle dimensions, and line layout.
Filling Head Configuration	6 heads	6 heads	8 heads	10 heads	12 heads	Head count should be matched to output target and product handling stability.
Filling Range	10–5000 ml	100–10000 ml / confirmation required	Custom confirmation required	Custom confirmation required	Custom confirmation required	Filling range may vary with product viscosity, bottle shape, and pump/nozzle configuration.
Filling Speed	1400–2000 bottles/hour	1200–2000 bottles/hour	1600–3000 bottles/hour	2000–3000 bottles/hour	2800–4000 bottles/hour	Speed is a reference range and depends on filling volume, liquid flow behavior, bottle stability, and line connection.
Filling Method	Liquid filling	Liquid filling	Liquid filling	Servo lifting and drop filling	Servo lifting and drop filling	Final filling method should be confirmed after sample review and accuracy requirement check.
Applicable Materials	Water-based liquids	Water-based liquids	Water-based liquids	Liquid products	Water-based liquid products	Subject to sample testing, especially for foaming, corrosive, or high-viscosity products.
Pump Configuration	316 stainless steel gear pump	316 stainless steel gear pump	316 stainless steel gear pump	316 stainless steel gear pump	316 stainless steel gear pump	Pump suitability should be checked against product characteristics and cleaning method.
Power	2.2 kW	2.2 kW	3.5 kW	4.0 kW	5.0 kW	Power is based on supplied data and may change with customized configuration.
Machine Size (L × W × H)	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	Line layout should also consider conveyor length, capping section, labeling section, and workshop access.

Key Component Specifications

View Larger

Component	Configuration	Notes
PLC Controller	Siemens / Delta / Xinjie	Control brand can be selected according to project requirement and component availability.
Detection Sensor	Panasonic / Sick	Used for bottle detection, filling positioning, and production control.
Touchscreen HMI	Delta / Xinjie	Operator interface for filling parameters, production adjustment, and alarm display.
Cylinder Solenoid Valve	Airtac / CHNT / Star	Pneumatic configuration should be confirmed according to final design.
Pump	316 stainless steel gear pump	Pump selection should be reviewed based on filling material, cleaning method, and accuracy requirement.
Switch Mode Power Supply	Taiwan Mean Well	Electrical component configuration should match the selected control system.
Voltage	220V / 50Hz	Other voltage standards require confirmation before production.
Air Pressure	0.4–0.6 MPa	Stable compressed air is required for pneumatic sections.
Conveyor Belt Motor	750W with frequency converter	Conveyor speed should be matched with filling speed and downstream equipment.
Lifting Servo	Xinjie / JMC	Servo lifting configuration depends on nozzle structure and bottle height range.

FAQ

How should I choose between GZWS-CLB06, GZWS-CLB06-12L, CLB08, CLB10, and CLB12?

GZWS-CLB06 is normally considered for smaller filling volumes, GZWS-CLB06-12L is used for larger filling-volume requirements, and CLB08, CLB10, and CLB12 provide higher head-count options. Final selection should be based on filling volume, target bottles per hour, bottle dimensions, product flow behavior, voltage, and line layout.

What is the difference between GZWS-CLB06 and GZWS-CLB06-12L?

Both are six-head configurations, but the CLB06 is positioned for smaller-capacity filling, while the CLB06-12L is positioned for higher-capacity filling. The practical filling range should be confirmed with bottle samples and the required filling volume.

Can this machine fill only water, or other liquids as well?

The series is designed for water-based liquid filling and similar low-to-medium viscosity liquid products. Products with foam, particles, corrosive ingredients, or higher viscosity should be tested before confirming the pump and nozzle structure. For broader selection, review LEKA filling machines.

Is the listed filling speed fixed?

No. The listed speed ranges are reference values from the supplied parameter sheet. Actual output depends on filling volume, liquid flow behavior, bottle shape, bottle stability, filling accuracy requirement, and whether the line connects with capping or labeling equipment.

Can the water-based liquid filling machine connect with capping and labeling equipment?

Yes. It can be planned as part of a filling machine line with conveyors, capping, labeling, coding, and packing sections. The complete line layout should be confirmed according to bottle samples, cap type, workshop space, and required automation level.

What information is needed before quotation?

Please provide product name, viscosity or product sample details, filling volume, bottle photo or drawing, target output, cap type if capping is required, factory voltage, air supply condition, and available line layout.
