Container feeding
Bottles, jars or cans are fed manually or by conveyor according to project scale.
Industry Packaging Line Solution

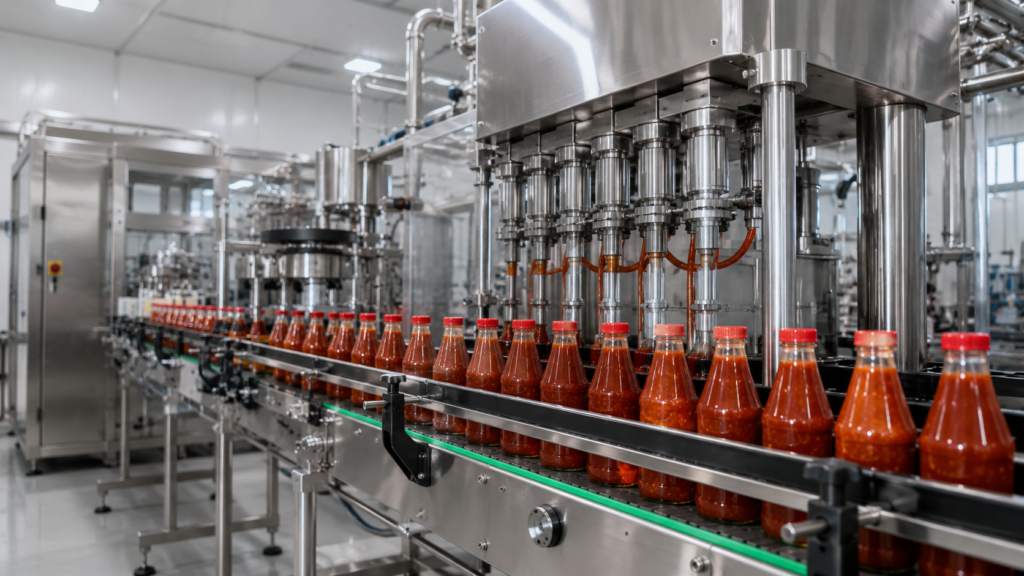

Food & Beverage Filling Line Solutions
Food and beverage products place different demands on the same packaging line. Sauce may contain particles, honey is sticky, edible oil needs clean cut-off, and juice or water usually needs faster bottle flow. LEKA configures food and beverage filling lines around product behavior, hygiene needs, container type and daily output.
Sauce
chili sauce
edible oil
cooking oil
honey
syrup
juice
Output Range1000-3000 containers/hour
Final output depends on sample, fill volume, product behavior and layout.
AutomationLine Integration
Filling, capping, labeling and packing modules can be connected by project.
Capacity Options1000-3000 BPH
Compact and standard references; integrated line by project.
Operators2-3 operators
Final labor depends on feeding, automation level and packing scope.

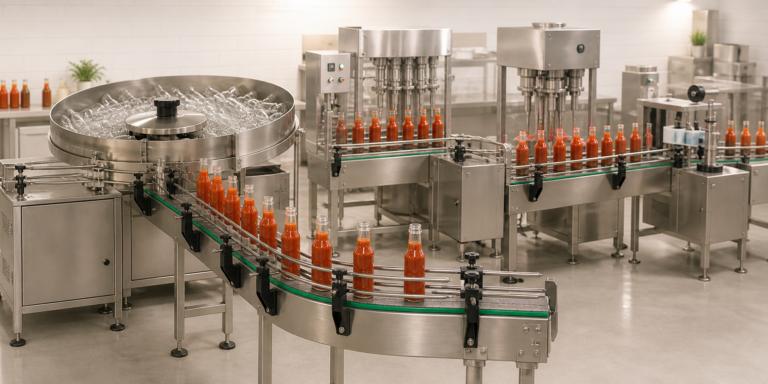

Real Line View
Complete automatic bottle packaging line with filling, capping, labeling and conveyor transfer for line configuration review.
Application Scope
Match the line to your product, container and production target.
LEKA Pack Line reviews the real product sample, bottle or container sample, closure style, label position and workshop layout before recommending a full line configuration.
Suitable Products
Sauce, chili sauce, edible oil, cooking oil, honey, syrup, juice, beverage, water and similar food-grade liquids.
Target Industries
Food factories, beverage plants, seasoning producers, cooking oil packers, honey processors and contract packaging companies.
Container Types
BottlesJarsBuckets / PailsCustom Containers
Bottle Shapes
Round BottlesSquare BottlesFlat BottlesJarsIrregular BottlesSample Review
Closure Options
Screw CapsPress CapsPump CapsTrigger CapsCustom Closures
Labeling Methods
Wrap-Around LabelingSingle-Side LabelingFront-Back LabelingFront BackCustom Labeling
Line Output Range
Food bottle reference: 1000-3000 containers/hour; sauces and honey run lower after sample testing.
Automation Level
Line Integration
Capacity Options
Compact 1000-2000 BPH reference; standard 1600-3000 BPH; sauce or oil line by project.
Line Boundary
From container feeding through food-grade filling, closing, labeling, coding and optional packing.
Product Fit
Choose the filling structure around real product behavior.
Different liquids need different filling structures. These tables help buyers compare product behavior, container range, filling method and line capacity before requesting a proposal.
| Suitable Products | Product Behavior | Packaging Challenge | Recommended Handling |
|---|---|---|---|
Sauce and Condiments |
Viscous, sticky or may contain small particles. |
The line must reduce dripping, blockage and cleaning difficulty. |
Servo piston filling, hopper mixing, heating and anti-drip nozzles can be reviewed. |
Edible Oil and Vinegar |
Free-flowing liquid with clean cut-off requirement. |
Bottle neck cleanliness and stable accuracy matter for retail packs. |
Pump, piston or flowmeter filling with anti-drip control can be configured. |
Honey and Syrup |
High viscosity and slow flow. |
Filling speed and clean cut-off should be confirmed by sample test. |
Heated piston, pump filling or larger nozzles can be reviewed. |
Filling Method
Match filling technology to viscosity, foam, particles and accuracy needs.
The final machine is confirmed after product sample review, but this guide shows the typical direction for common production requirements.
| Filling Solution | Suitable Products | Best For | Project Notes |
|---|---|---|---|
Piston Filling |
Sauce, paste, honey, syrup and viscous food products. |
Accurate filling for thick products. |
Can add hopper stirring, heating and anti-drip cutoff. |
Pump or Flowmeter Filling |
Edible oil, vinegar, juice and low-viscosity food liquids. |
Clean filling for free-flowing products. |
Selection depends on accuracy, filling volume and cleaning requirements. |
Hot-Fill or Sanitary Review |
Products that need temperature control or stronger cleaning access. |
Food projects with hygiene and process requirements. |
Confirm product temperature, cleaning method and contact material before design. |
Container Range
Plan containers, closures and labels as one connected line.
Container size, opening, stability, cap format and label position all affect machine selection and conveyor layout.
| Container Type | Volume Range | Closure Options | Labeling Options | Handling Notes |
|---|---|---|---|---|
Bottles and Jars |
100ml-5L |
Screw caps, lug caps, press caps or pump caps by sample. |
Wrap-around, front-back, sleeve or top labels. |
Sauce, oil, honey and beverage products need different filling structures after sample review. |
Jerry Cans and Food Pails |
5L-25L |
Screw caps, press lids or pail lids. |
Front-back labels, side labels or batch coding. |
Large food containers may need slower filling, stronger conveyors and clean packing access. |
Finished Cartons |
LEKA-CS reference: L150-500mm / W150-500mm / H120-500mm |
Tape sealing after product packing. |
Carton label or shipping label. |
Carton sealing uses 18m/min belt speed reference; practical output depends on carton loading. |
Capacity Planning
Compare line levels before confirming automation scope.
A practical line proposal should match output target, floor space, operator plan, packing end and later capacity growth needs.
| Solution Type | Typical Output | Machine Configuration | Operators | Floor Space | Production Use |
|---|---|---|---|---|---|
Compact / Semi-Automatic Line |
1000-2000 BPH reference for small bottles; final output depends on sample and filling volume. |
Manual or turntable feeding with automatic filling, capping, labeling and collection. |
2-3 operators reference |
Compact inline layout; final drawing required. |
Suitable for new projects, smaller factories and flexible SKU changeover. |
Standard Automatic Inline Line |
1600-3000 BPH LEKA 8-head filler reference for suitable low-viscosity products; sauces and honey may run lower. |
Automatic filling, cap feeding, capping, labeling, coding and packing preparation. |
2-3 operators reference |
Straight, L-shaped or U-shaped layout after workshop review. |
Suitable for regular daily production with stable bottle flow. |
Higher-Output / Integrated Line |
Matched by project; bottle feeding reference 60-120 bottles/minute and labeling up to 15000 BPH can be integrated when required. |
Bottle unscrambler, multi-head filling, capping, labeling, inspection, carton sealing or palletizing by project. |
Confirmed by line scope |
Layout drawing required with buffer and packing end. |
Suitable for buyers planning connected production from empty bottles to finished cartons. |

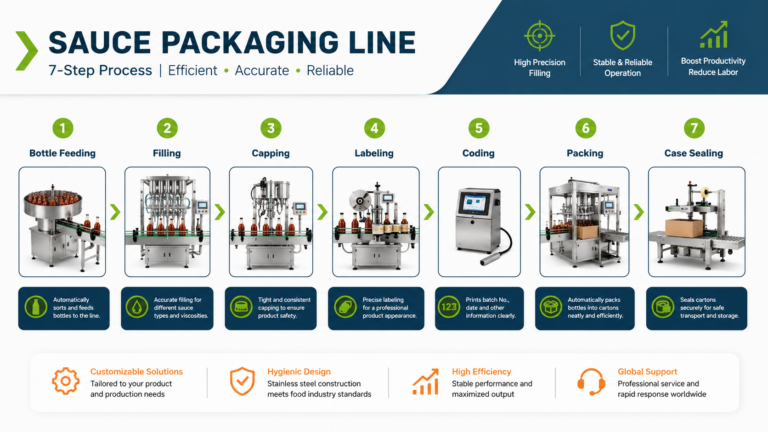

Production Flow
Typical line process from container feeding to finished packing.
The process can be shortened or expanded according to the customer product, available floor space and required automation level.
Food-grade filling
Filling structure is selected for product viscosity, particles, foam and target accuracy.
Capping or sealing
Screw capping, press capping or sealing is matched to the closure sample.
Labeling and coding
Product labels, date codes and batch codes can be added after capping.
Packing
Finished products can be sent to manual packing, carton sealing or shrink packing.
Machine Configuration
Core machines and optional modules can be combined as one complete line.
Each stage is selected around the product behavior, container samples, output target and downstream packing method.
| Line Stage | Machine Role | Recommended Equipment | Qty | Output Match | Production Use | Configuration Notes |
|---|---|---|---|---|---|---|
| Container Feeding and Line Conveying | Feeds empty containers into the line and keeps transfer stable between machines. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Line Integration | Bottle unscrambler, bottle receiving table, accumulation table or conveyor layout is selected by container stability and workshop space. Conveyor length, turning direction and accumulation buffer can be customized. | |
| Bottle Washing / Air Rinsing | Removes dust from empty bottles before filling when container storage, hygiene or product quality requires it. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Optional Module | Bottle washer or air rinsing module is added according to bottle material, cleanliness requirement and line speed. Flip-type air blow washing, ion air cleaning or rinsing structure can be reviewed. | |
| Filling | Fills the target product into bottles, jars, pails or containers. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Core Machine | Filling equipment is selected by viscosity, foaming, particles, corrosion risk, filling accuracy and target capacity. Servo control, more filling heads, diving nozzles, heating or anti-corrosion structure can be reviewed. | |
| Cap Feeding / Cap Elevating | Feeds caps to the capping machine and reduces manual cap loading during continuous production. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Optional Module | Cap elevator or vibratory feeder is selected by cap size, cap shape and feeding stability. Customized cap sorting and cap feeding direction can be reviewed. | |
| Capping | Tightens screw caps, press caps or other matched closures according to the container and cap sample. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Line Integration | Capping structure is selected according to cap type, torque requirement and bottle stability. Servo capping, claw-type capping or press-cap structure can be integrated. | |
| Foil Sealing | Adds induction sealing after capping when leakage control, freshness, tamper evidence or product protection is required. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Optional Module | Foil sealing is configured by bottle mouth size, foil material, cap structure and line speed. Air-cooled or water-cooled sealing models can be selected by production requirement. | |
| Labeling and Coding | Applies product labels and production date information before final packing. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Line Integration | Labeling method is matched to container shape, label position and packaging style. Single-side, double-side, wrap-around, top labeling, sleeve labeling and coding can be integrated. | |
| End-of-Line Packing | Prepares finished products for carton sealing, shrink packing, case packing or palletizing. |
1 | Confirmed by bottle or container size, filling volume, product characteristics and packing end requirement. |
Optional Module | Packing end is configured according to carton size, case packing method, labor plan and shipping requirement. Carton sealing, shrink packing, automatic case packing or palletizing can be configured by project. |

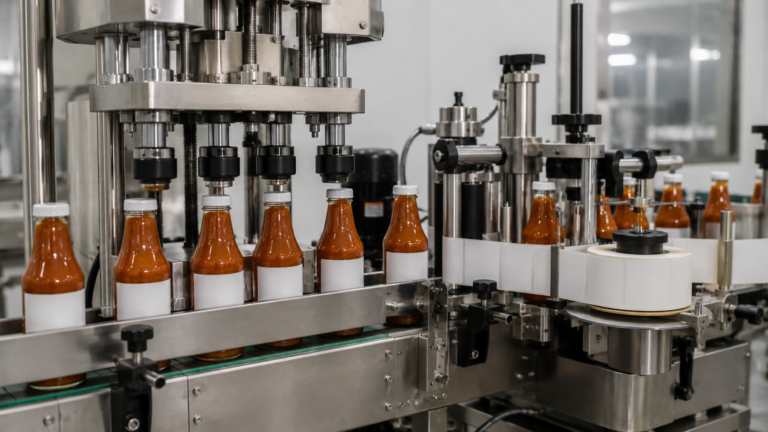

Line Details
Review real equipment details before planning your line.
Use these photos to check machine structure, filling heads, container handling, conveyors and factory test details.
Optional Integration
Add the modules that make the line fit your factory workflow.
Optional modules are selected after checking required inspection, coding, sealing, packing and labor-saving needs.
Hopper stirring or heating
Useful for sauces, honey or products that need better flow before filling.
Anti-drip nozzles
Helps keep bottle mouths and conveyors cleaner.
Bottle washing
Available for beverage and water bottle applications.
Weight checking
Supports more stable production control for retail packs.
Packing conveyor
Connects filling output with carton packing or manual packing stations.
Materials and Safety
Confirm contact materials and safety configuration before production.
Material selection and safety options are reviewed by product formula, viscosity, corrosion risk, flammability, cleaning method and local factory requirements.
| Option Area | Available Configuration | Suitable Products | Project Notes |
|---|---|---|---|
Food-Grade Contact Parts |
SUS304 or SUS316 contact parts with food-grade hoses and nozzles. |
Sauce, oil, honey, juice and food liquids. |
Cleaning access should match product viscosity and hygiene needs. |
Anti-Drip and Clean Filling |
Suck-back nozzles, anti-drip trays and controlled filling speed. |
Oil, sauce, honey and sticky food products. |
Helps keep bottle mouths and conveyors cleaner. |
Cleaning-Friendly Design |
Removable hopper, accessible product path and washdown discussion. |
Food lines with frequent product changeover. |
Final structure depends on formula, cleaning method and production schedule. |
Quality Control
Add inspection modules where the line needs stronger control.
Inspection and rejection modules help factories check fill level, weight, cap status, labels and finished package quality before packing.
| Module | Production Use | When to Add |
|---|---|---|
Checkweigher |
Checks product weight after filling or packing. |
Add when the project needs automatic underweight or overweight rejection. |
Fill-Level or Light Inspection |
Helps operators review fill level, container condition and obvious product issues. |
Add for transparent bottles, beverage products or higher quality control needs. |
Date Coding and Batch Coding |
Prints production date, batch number or tracking information. |
Add when retail packaging, distributor requirements or traceability rules require coding. |
Factory Planning
Layout, utilities and customization are confirmed before production.
The same product may need a different line structure when bottle shape, cap style, output target or workshop direction changes.
Bottle Specifications
Confirm container volume, height, diameter, mouth size, material and stability before final line design.
Cap Specifications
Confirm cap type, cap diameter, cap height, torque requirement and whether automatic cap feeding is required.
Label Specifications
Confirm label type, label roll size, label position and whether front/back, wrap-around, sleeve or top labeling is needed.
Layout Notes
Straight line, U-shaped line or custom layout
Food and beverage lines should leave enough access for cleaning, sample checking, cap replenishment and label roll replacement.
Required Floor Space
Layout drawing required for filling, capping, labeling and cleaning access. Bottle feeding and carton sealing can use LEKA-BU and LEKA-CS reference dimensions during planning.
Utility Requirements
Final power and air supply depend on filling method. Heating, mixing or food-grade pump modules may add separate power requirements by project.
Operators Required
2-3 operators for compact/standard reference; final labor depends on cleaning and packing scope.
Labor-saving Notes
Automatic feeding, filling, capping, labeling and conveyor integration can reduce repeated manual handling.
Customization Options
Contact material, hopper style, pump type, filling nozzle, bottle holder, cap handling, labeling method and cleaning-friendly design can be customized.
Upstream and Downstream Connection
Upstream bottle supply and downstream carton packing, collection or palletizing can be connected after layout review.
Packing End Options
Manual packing table, carton sealer, shrink tunnel and weighing label printer can be added according to project needs.
Quotation Preparation
Send these project details for a more accurate line proposal.
Clear samples and production targets help our team recommend the right filling method, machine quantity, automation level and layout direction.
Product sample or product description
Helps confirm viscosity, foaming, particles, corrosion risk and filling method.
Bottle, jar, drum or pail size
Helps match filling heads, conveyors, holders, capping structure and line layout.
Target output per hour
Helps size the number of filling heads, automation level and downstream equipment.
Cap, label and packing style
Helps integrate capping, sealing, labeling, coding and end-of-line packing.
Workshop layout and utility conditions
Helps confirm conveyor direction, machine footprint, power, air supply and installation plan.
Delivery Support
From line planning to factory testing and after-sales support.
LEKA supports B2B customers with practical configuration discussion, sample review, line testing and remote technical guidance.
Project Delivery Scope
LEKA can support line planning, machine configuration, layout drawing, sample testing, factory acceptance test, packing for shipment and installation guidance.
Factory Acceptance Test
Before shipment, the configured line can be tested with customer samples or comparable products to check filling accuracy, capping stability, labeling position, conveyor flow and basic operation.
Installation Support
Remote installation guidance, operation training and troubleshooting support are available. On-site service can be discussed according to project location and schedule.
Spare Parts Support
Wear parts, electrical parts and common maintenance parts can be prepared according to the final machine configuration.
Project Timeline
Project timeline is confirmed after product samples, container samples, cap samples, target capacity and layout are reviewed.
Warranty Terms
Warranty terms are confirmed in the final quotation and contract.
Project Review
Useful materials for quotation and internal review.
Use these review items to prepare product information, container samples, factory layout and line requirements before final configuration.
Quotation Checklist
Prepare product, container, cap, label, output and factory layout details before requesting a proposal.
Line Layout Review
Share workshop dimensions and flow direction so LEKA can review conveyor direction, machine order and packing area.
Factory Test Review
Use sample testing photos or videos to check filling accuracy, capping stability, labeling position and conveyor transfer before shipment.
Connected Resources
Related Application Pages
Review product-specific filling pages that connect with this line solution.
Application PageSauce Filling LineSauce filling projects need stable dosing even when the product is thick, sticky or contains small particles. LEKA…
Application PageEdible Oil Filling LineEdible oil filling lines need accurate dosing, clean cut-off and stable handling for different bottle sizes. LEKA can…
Application PageHoney Filling LineHoney filling requires controlled flow, accurate volume and clean cut-off because the product is sticky and slow-moving. LEKA…
Connected Resources
Recommended Equipment
Check the main filling, capping, labeling, conveying and packing machines used in this line.
EquipmentLEKA-FLsemi-HS01 Single-Head Paste Filling MachinePaste, sauce, cream, gel and liquid products containing small particles, using self-priming or hopper feeding according to product…
EquipmentLEKA-CP-A-servo Servo Four-Wheel Capping MachineLEKA-CP-A-servo is a servo four-wheel capping machine with servo-controlled lifting adjustment for different bottle heights. It is suitable…
EquipmentLEKA-LB020 Automatic Double-Side Multifunction Labeling MachineLEKA-LB020 is an automatic double-side labeling machine for square bottles, flat bottles, and rectangular containers, with optional round…
EquipmentLEKA-CS Carton Sealing MachineLEKA-CS semi-automatic carton sealing machine for end-of-line carton tape sealing, suitable for cartons from 150-500mm length, 150-500mm width…
Customer Questions
Common questions before confirming a line proposal.
These answers help buyers prepare product samples, container information, capacity targets and factory details before requesting a quotation.
What information should I send before requesting a food and beverage filling line proposal?
Please send product details, container photos or drawings, filling volume, cap type, label position, target output and available factory layout.
Can the line be customized for my container and cap samples?
Yes. LEKA reviews real samples or drawings before confirming guides, conveyors, filling nozzles, cap handling, labeling position and packing end.
How is the filling method selected?
Food and beverage filling is selected by viscosity, particles, foam, filling temperature, hygiene needs and container opening.
Can capping, labeling and packing be connected in one line?
Yes. Filling, capping, sealing, labeling, coding, inspection and downstream packing can be combined according to project scope.
Do you provide testing before shipment?
Factory testing can be arranged with customer samples or comparable products. Test videos and photos can be provided for review before shipment.
Ready to configure this production line?
Send your product, container, cap, label and capacity requirements. LEKA Pack Line will review the details and prepare a suitable filling and packaging line plan.
