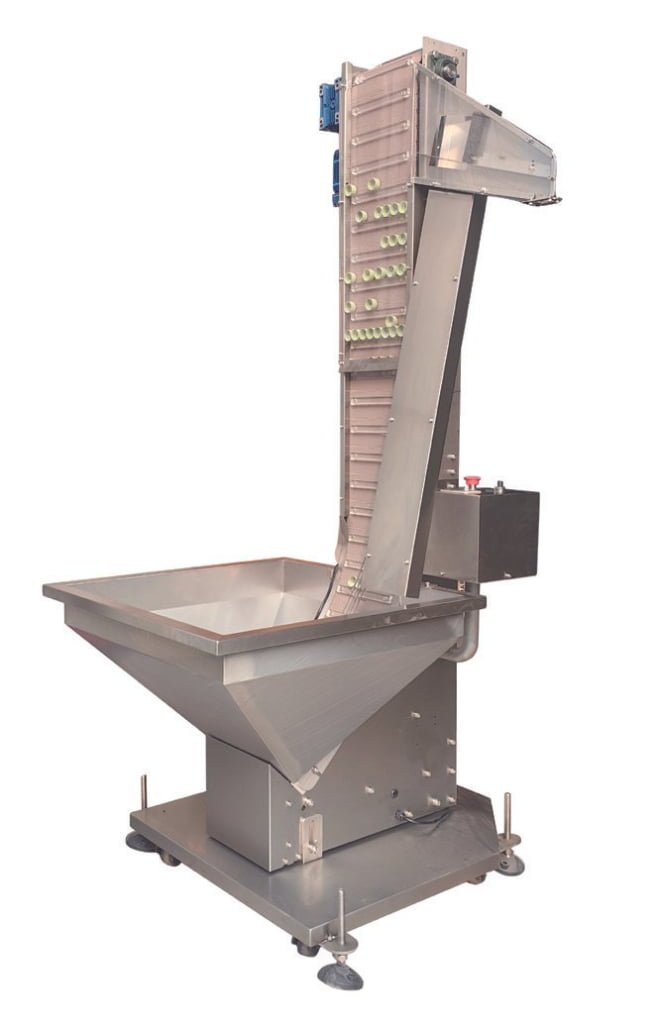

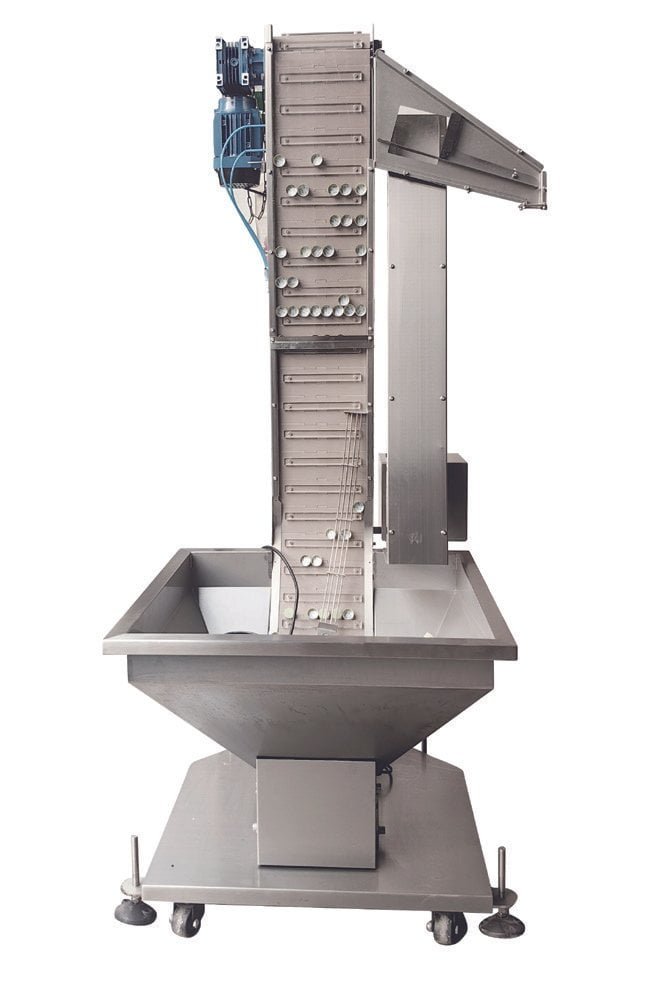

The LEKA-CE cap elevator is used to lift different cap types from the lower hopper to the cap collection or sorting section of an automatic capping machine. It helps reduce manual cap loading and supports stable cap supply for bottle filling and capping lines.
Use this section to judge whether the machine fits your product, container, speed target, and line integration plan.
Lifts caps from the hopper into the cap collection device to support continuous automatic capping.
Can handle plastic caps, metal caps and different cap specifications after sample checking.
Uses a high-strength wear-resistant plate chain to extend service life for both the chain and cap buckets.
Can be matched with automatic capping machines and complete filling, capping, labeling and packing lines.
The template now displays the real compatibility fields from the equipment backend instead of only showing a generic labeling machine layout.
Plastic caps, metal caps and common bottle closures used in food, beverage, sauce, edible oil, cosmetic, daily chemical and chemical liquid packaging lines. Cap samples should be checked before final configuration.
Installed before the cap sorting or cap collection device and connected with automatic capping equipment in a filling, capping, labeling and packing line.
Auxiliary machines are selected by process stage, capacity match, line direction, and the equipment they connect with.
Custom Auxiliary Equipment
Cap feeding before automatic capping
Conveying speed is configured according to cap size, cap weight, capping machine demand and line speed. Final capacity should be confirmed with cap samples and the connected capping machine.
Confirm capping machine position, cap hopper location, discharge height, line direction, available floor space and local voltage before layout confirmation.
Values are shown from the equipment backend. Final configuration should be confirmed with product samples, container drawings, output target, and destination voltage.
This section uses the fields that were hidden in the old template, so buyers can understand not only the machine, but also daily operation and project support.
Depends on cap size and connected capping machine setup.
Clean the hopper, chain surface and cap contact areas according to product cleanliness requirements.
Check chain wear, bucket condition, motor, reducer, electrical cabinet and pneumatic components during routine maintenance.
Wear-resistant chain parts, cap buckets, sensors and selected electrical or pneumatic components can be supplied according to final configuration.
Normally one operator can monitor cap loading and line operation together with the capping line.
Emergency stop and guarding can be configured according to final line layout.
Hopper size, discharge height, line direction, electrical configuration and connection with cap sorting devices can be customized by project.
LEKA Pack Line supports project confirmation, machine testing, export packing, installation guidance, spare parts supply and remote after-sales support.
This machine can be matched with upstream and downstream equipment according to your product, bottle, cap, label, output, and factory layout.
LEKA-BU is a bottle unscrambler and bottle receiving machine for feeding empty bottles into an automatic packaging line. The turntable uses variable-frequency stepless speed control so...
LEKA-CW is an inline checkweigher for automatic weight detection, upper and lower limit judgment, and overweight or underweight rejection in packaging lines. It can be matched...
LEKA-CS is a semi-automatic carton sealing machine for end-of-line packing after filling, capping, labeling and coding. Operators pre-fold the carton flaps and push the carton into...
Auxiliary equipment for automatic capping lines
Automatic cap elevator for lifting plastic and metal caps into the cap collection device of a capping machine, supporting stable cap feeding in bottle packaging lines.
Installed before the cap sorting or cap collection device and connected with automatic capping equipment in a filling, capping, labeling and packing line.
| Three phase asynchronous motor | RISCO |
|---|---|
| Gear reduction unit | RISCO |
| Frequency converter | Keken |
| Solenoid valve | Airtac |
| Air source processor | Airtac |
| Voltage | 220V 50Hz |
| Size | 1200mm * 780mm * 2320mm |
| Weight | 100KG |
LEKA Pack Line can match the LEKA-CE cap elevator with automatic capping machines, filling machines, conveyors, labeling machines and downstream packing equipment according to cap samples, required output, line direction and factory layout.
Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. LEKA can review samples or drawings before quotation.
Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.
Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.
Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
LEKA engineers will review your product, bottle, cap, label, output, automation level, and factory layout, then recommend a suitable machine or complete line configuration.
Used to confirm cap size, cap weight, cap material and lifting stability.
Used to confirm discharge height, feeding direction and integration position.
Used to match cap feeding speed with automatic capping demand.
Used to confirm voltage, machine placement and installation layout.
