Water-cooled aluminum foil sealing LEKA-GLF-4000

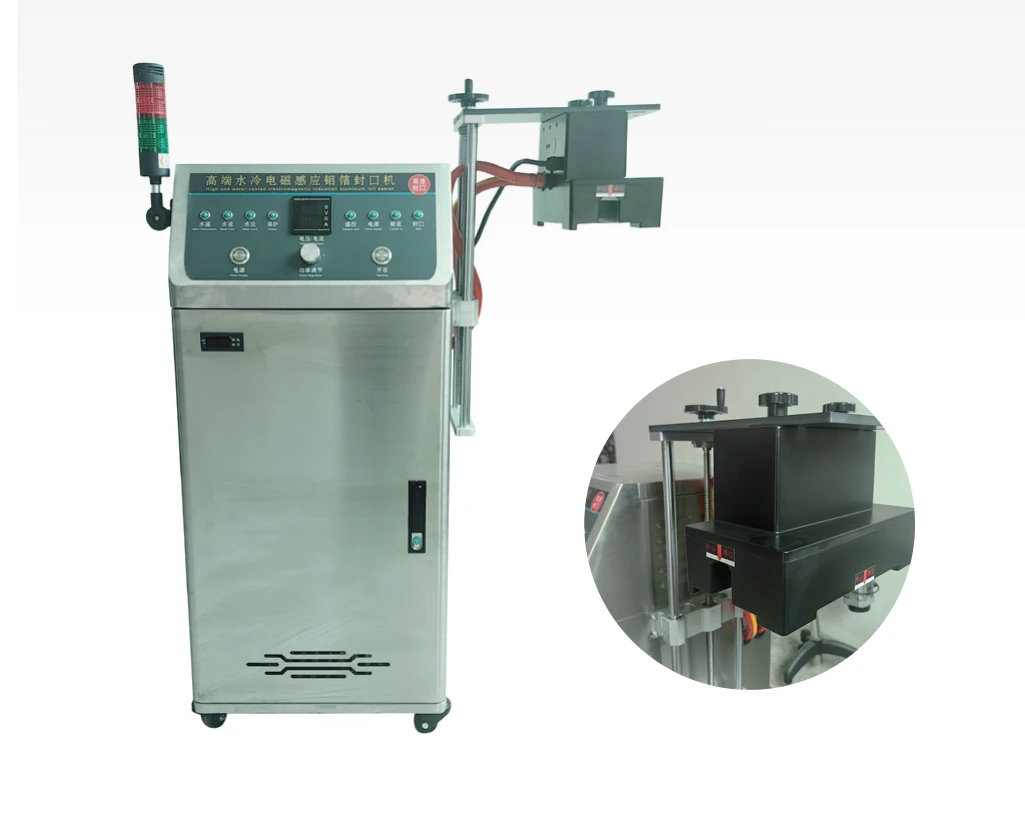

LEKA-GLF-4000 Water-Cooled Aluminum Foil Sealing Machine

LEKA-GLF-4000 is a high-speed water-cooled aluminum foil sealing machine for inline bottle sealing. It is suitable for production lines that require stable continuous sealing for plastic and composite bottle openings after filling and capping.

Water-cooled continuous sealing 15–60 mm & 40–120 mm range Up to 12,000 BPH reference Adjustable sealing head
Interest

Continuous water-cooled sealing for higher-output lines

For production lines that need stable continuous foil sealing on plastic and composite bottle openings after filling and capping — water cooling for continuous heat control, confirmed with bottle and foil testing.

01

Water-Cooled Continuous Sealing

Water cooling supports stable continuous sealing for higher-speed production lines.

02

High Sealing Efficiency

Designed for efficient inline sealing with stable sealing quality after bottle and foil testing.

03

Automatic Start and Stop

Supports automatic start/stop and continuous operation for easier line use.

04

Adjustable Sealing Head

The sealing head support can be adjusted according to bottle height and conveyor layout.

05

Wide Application Range

Suitable for food, oils, daily chemicals, pharmaceuticals, pesticides and similar industries.

Photos

Machine views

Factory photos of LEKA-GLF-4000, including the control panel, water-circulation cooling, alarm stack, sealing head, and a sealing test.

LEKA-GLF-4000 water-cooled aluminum foil sealing machine Finished LEKA-GLF-4000 water-cooled aluminum foil sealing machines wrapped on the workshop floor Finished LEKA-GLF-4000 water-cooled aluminum foil sealing machines wrapped on the workshop floor Smart control panel on the LEKA-GLF-4000 water-cooled aluminum foil sealer, with power adjustment for different bottle shapes Water-circulation cooling unit inside the LEKA-GLF-4000, with radiator, fan, pump, and coolant hoses Stack light and control panel of the LEKA-GLF-4000, which alarms for low tank water, high water temperature, or a fault Handwheel-adjustable sealing head on the LEKA-GLF-4000, shown for mouths from 15 to 180 mm Front of a LEKA-GLF-4000 water-cooled foil sealer with the panel lit, stack light on, and sealing head extended Three-quarter view of the LEKA-GLF-4000 cabinet, stack light, and extended sealing head Side view of the LEKA-GLF-4000 showing the handwheel height column, side vents, and sealing head LEKA-GLF-4000 water-cooled foil sealer standing beside a stainless conveyor with guide rails Radiator, cooling fan, pump, and red coolant hoses inside the LEKA-GLF-4000 cabinet
Desire

Specs that matter for a quote

Figures below are from the current configuration sheet. Final settings are confirmed with samples.

Machine ModelLEKA-GLF-4000
Machine TypeHigh-speed water-cooled aluminum foil sealing machine
Cooling TypeWater-cooled aluminum foil sealing
Sealing MethodNon-contact electromagnetic induction heating
Sealing Range15-60mm, 40-120mm
Output Referenceup to 12,000 bottles/hour (BPH) (≈200 bottles/min), depending on bottle size, foil liner and line speed
Suitable ContainersPlastic bottles and composite plastic bottle openings
Line PositionAfter filling and capping, before labeling or downstream packing
StructureStainless steel mold-formed exterior with adjustable sealing head support

Higher-output fill lines

Continuous foil sealing with stable heat control on higher-output filling lines.

After fill & cap

After filling and capping, before labeling or downstream packing.

Food / oils / daily chemical

Food, oils, daily chemicals, pharmaceuticals, pesticides and similar industries after sample review.

Free sample trial — what to send

We review your bottle opening, cap and foil liner before quotation so sealing range, water-cooling layout and line speed can be checked.

  • Bottle samples or drawings (opening size)
  • Cap samples with foil liner structure
  • Target capacity and factory voltage
  • Factory layout or available conveyor space
Action

Request a sample trial or project quote

Share bottle, foil liner and line details once — we confirm fit, then quote the LEKA-GLF-4000 configuration that matches your sealing station.

Need to send

  • Bottle samples or drawings (opening size)
  • Cap samples with foil liner structure
  • Target capacity and factory voltage
  • Factory layout or available conveyor space
FAQ

Quick answers

How does GLF-4000 differ from air-cooled GLF-1900?

GLF-4000 uses water-cooled aluminum foil sealing for continuous sealing on higher-speed lines. GLF-1900 uses air-cooled sealing. Both use non-contact induction heating in the published sealing ranges.

What sealing ranges are published?

15–60 mm and 40–120 mm for plastic bottles and composite plastic bottle openings. Confirm with bottle and foil liner samples.

What output is published?

Up to 12,000 bottles/hour (≈200 bottles/min) as a reference. Actual speed depends on bottle size, foil liner and line speed.

Can it connect to capping and labeling?

Yes. It can be matched with filling, capping, labeling, coding and conveyor systems according to samples, target capacity and factory layout.
