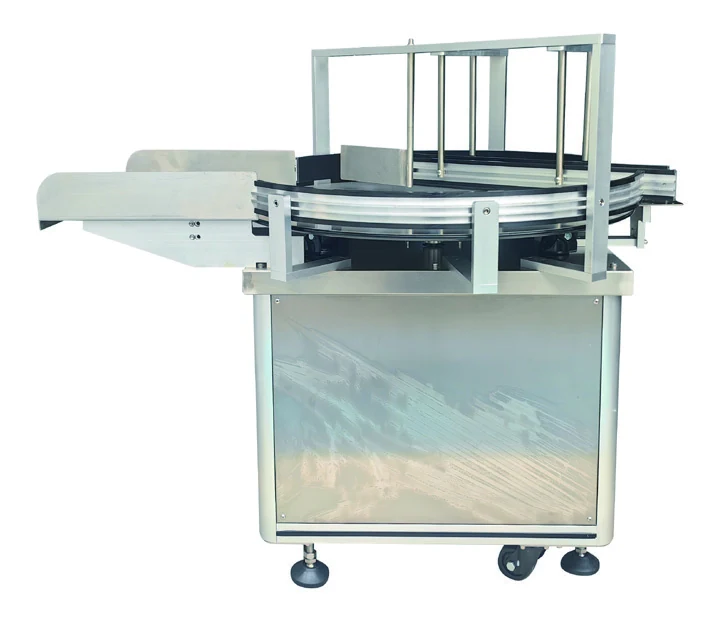

LEKA-BU is a bottle unscrambler and bottle receiving machine for feeding empty bottles into an automatic packaging line. The turntable uses variable-frequency stepless speed control so bottles enter the conveyor in sequence, helping factories reduce manual handling and keep the filling, capping and labeling process more stable.
Use this section to judge whether the machine fits your product, container, speed target, and line integration plan.
Variable-frequency stepless speed control supports smoother bottle feeding and one-touch speed adjustment.
Bottles enter the conveyor sequentially so the unscrambler can match filling, capping, labeling and collection equipment.
The turntable helps reduce manual bottle feeding and improves production workflow consistency.
The main machine structure uses stainless steel for practical packaging workshop use.
Can be supplied as a standalone receiving machine or integrated into a complete bottle packaging line.
The template now displays the real compatibility fields from the equipment backend instead of only showing a generic labeling machine layout.
Empty glass bottles before filling
Empty plastic bottles before filling
PET bottles for food, beverage, chemical, pesticide and daily chemical packaging lines
Bottle feeding and bottle receiving projects for small, medium and large workshops
Bottle feeding, bottle unscrambling or bottle receiving stage before filling, capping, labeling or collection.
Auxiliary machines are selected by process stage, capacity match, line direction, and the equipment they connect with.
Bottle Unscrambler
Bottle feeding or bottle receiving before filling, capping, labeling or collection
Matched with packaging lines requiring 60-120 bottles/minute bottle feeding or receiving support.
Turntable direction, conveyor height, bottle outlet direction, guide rail structure, receiving table layout, voltage and line connection can be customized according to bottle samples and factory layout.
Values are shown from the equipment backend. Final configuration should be confirmed with product samples, container drawings, output target, and destination voltage.
This section uses the fields that were hidden in the old template, so buyers can understand not only the machine, but also daily operation and project support.
Changeover depends on bottle size, product format, and connected equipment.
No product-contact cleaning process; routine surface cleaning and bottle contact area cleaning are recommended before production.
Check the turntable surface, guide rails, outlet conveyor connection, frequency controller, motor, wheels and bottle contact parts before production. Keep the turntable clean and confirm stable bottle transfer during changeover.
Recommended spare parts can be prepared according to the final machine configuration.
1 operator recommended for routine monitoring and bottle changeover.
Emergency stop, stable bottle transfer checking and motor protection should be confirmed according to final line configuration.
Turntable direction, conveyor height, bottle outlet direction, guide rail structure, receiving table layout, voltage and line connection can be customized according to bottle samples and factory layout.
Support includes bottle sample review, line layout confirmation, factory testing video support, installation guidance, spare parts and remote technical support.
This machine can be matched with upstream and downstream equipment according to your product, bottle, cap, label, output, and factory layout.
The LEKA-CE cap elevator is used to lift different cap types from the lower hopper to the cap collection or sorting section of an automatic capping...
LEKA-CW is an inline checkweigher for automatic weight detection, upper and lower limit judgment, and overweight or underweight rejection in packaging lines. It can be matched...
LEKA-CS is a semi-automatic carton sealing machine for end-of-line packing after filling, capping, labeling and coding. Operators pre-fold the carton flaps and push the carton into...
Auxiliary Equipment
LEKA-BU is a bottle unscrambler and bottle receiving machine for feeding empty bottles into an automatic packaging line. The turntable uses variable-frequency stepless speed control so bottles enter the conveyor in sequence, helping factories reduce manual handling and keep the filling, capping and labeling process more stable.
Bottle feeding, bottle unscrambling or bottle receiving stage before filling, capping, labeling or collection.
Glass bottles, plastic bottles and PET bottles. Final suitability should be confirmed according to bottle diameter, bottle height, bottle shape, bottle stability and conveyor connection.
| Machine Model | LEKA-BU |
|---|---|
| Machine Type | Bottle Unscrambler / Bottle Receiving Machine |
| Machine Dimensions | 1000 x 800 x 900 mm |
| Weight | 50 kg |
| Suitable Bottle Diameter | 40-100 mm |
| Turntable Diameter | 800 mm |
| Power Supply | AC220V, 50Hz |
| Power | 0.5 kW |
| Conveyor Motor | 750W AC motor with frequency converter |
| Production Capacity | 60-120 bottles/minute |
| Speed Control | Frequency-controlled motor speed with one-touch adjustment |
| Main Structure | SUS304 stainless-steel main structure |
LEKA Pack Line can match this bottle unscrambler with filling, capping, labeling, coding, conveyor and downstream packing equipment according to bottle samples, target output and factory layout.
Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. LEKA can review samples or drawings before quotation.
Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.
Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.
Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
LEKA engineers will review your product, bottle, cap, label, output, automation level, and factory layout, then recommend a suitable machine or complete line configuration.
Used to confirm turntable diameter match, outlet guide rail design and bottle transfer stability.
Used to match bottle feeding speed with filling, capping, labeling or collection equipment.
Used to confirm motor configuration, outlet direction and line connection layout.
Used to check bottle stability, guide rail spacing and changeover requirements.
