Servo four-wheel belt capping LEKA-CP-A-servo

Servo Four-Wheel Capping with Height Lift

LEKA-CP-A-servo is a servo four-wheel belt capping machine with servo-controlled lifting adjustment for different bottle heights — dual-motor belt grip and XINJE PLC with 7-inch touchscreen.

Output: 2200–3000 BPH Four-wheel belt capping Servo lifting adjustment Dual-motor belt grip
Interest

Four-wheel belt capping with servo height control

When bottle heights change across SKUs, servo lifting helps set the four-wheel belt head while dual side belts keep bottles stable during tightening.

01

Four friction wheels

Belt-style four-wheel screw capping (not chuck) for common screw-cap bottles after sample review.

02

Servo lifting

Servo-controlled lifting supports more controlled height adjustment for different bottle sizes.

03

Dual-motor belt grip

Bottles are held by dual-motor belt-gripping conveyance under the capping section.

04

XINJE PLC + 7″ HMI

XINJE PLC and 7-inch touchscreen support practical setup and repeat production.

05

Line integration

Can connect with filling, sealing, labeling and conveyor systems after layout review.

06

Sample & line-fit review

Send bottle and cap samples (or drawings). We confirm height range, wheel setup and line layout before quotation — no free-trial promise.

Photos

Machine views

Views from the current equipment gallery for LEKA-CP-A-servo (existing media; no factory text banners added).

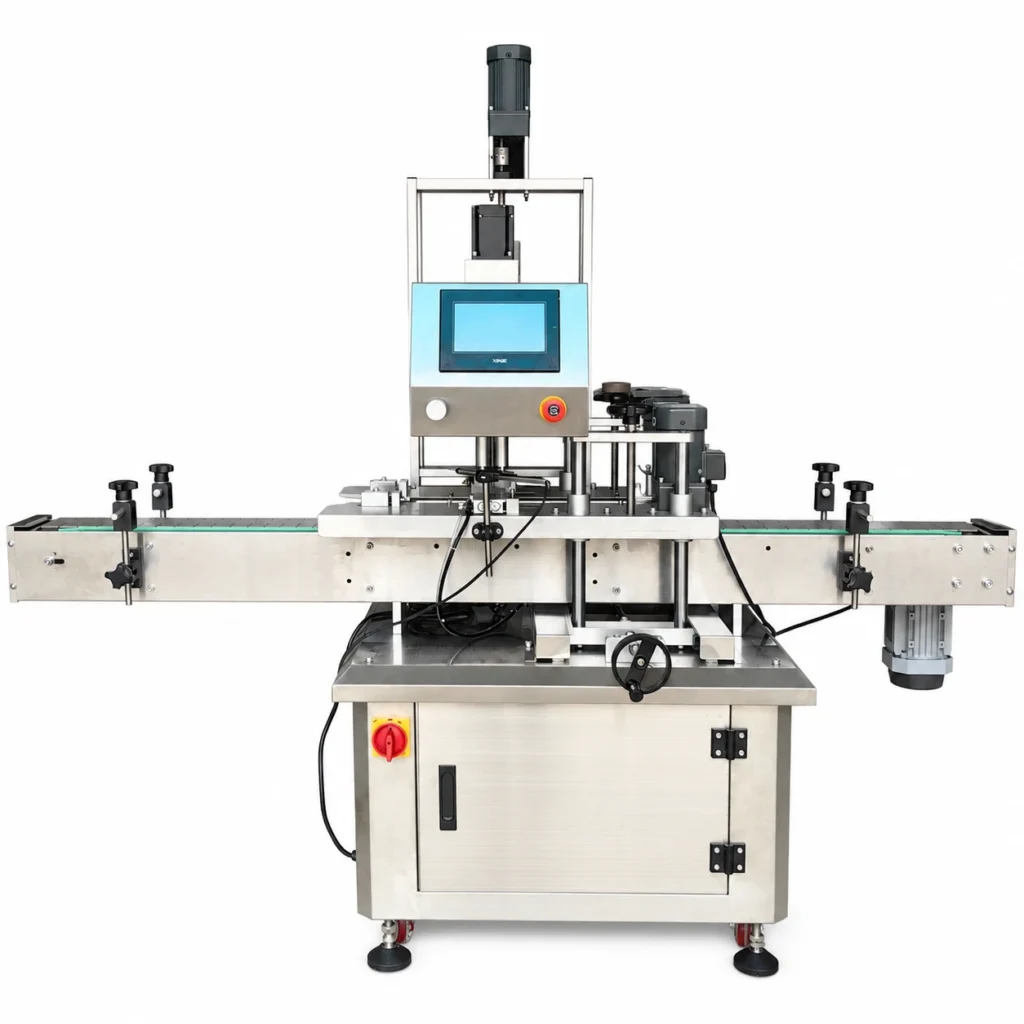

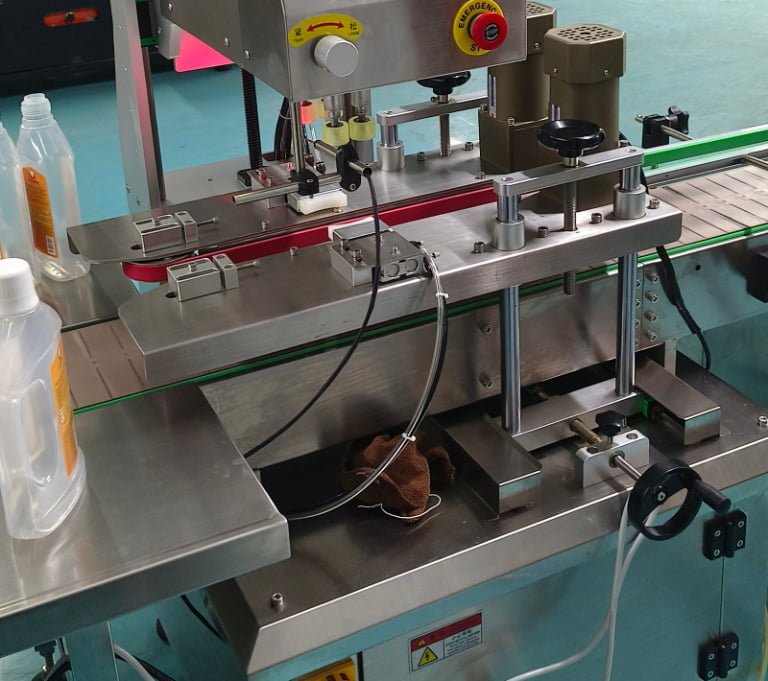

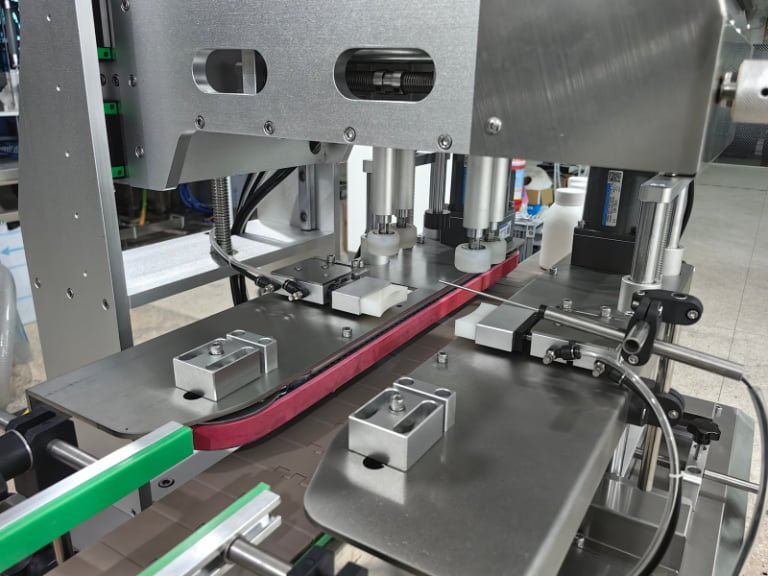

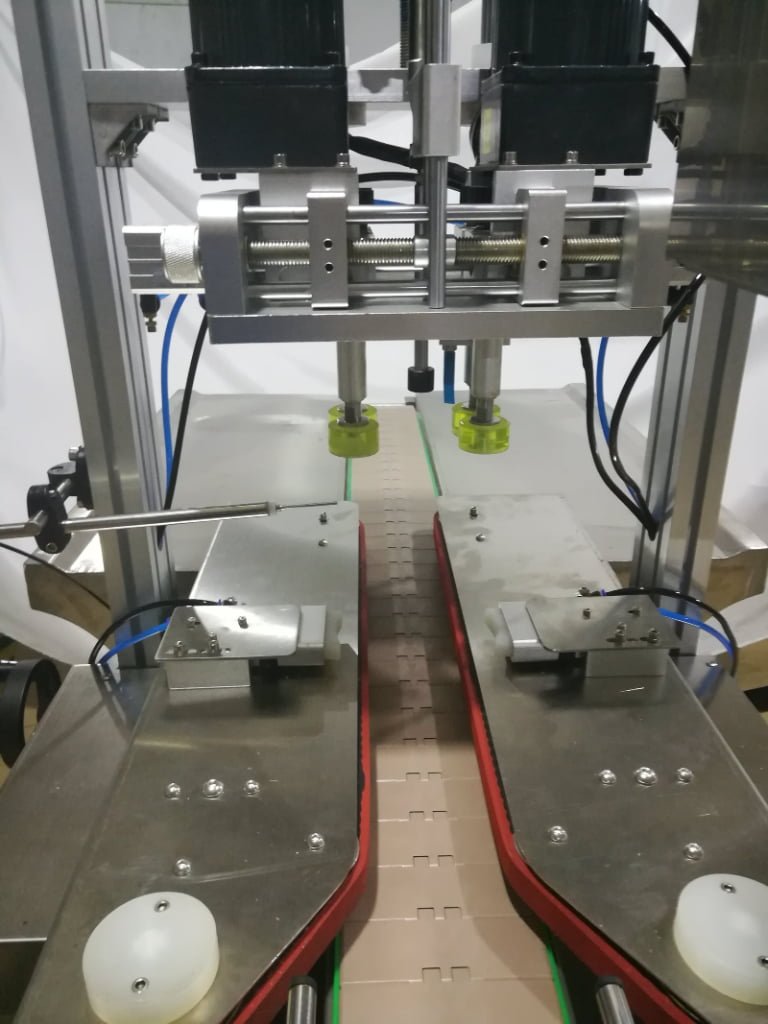

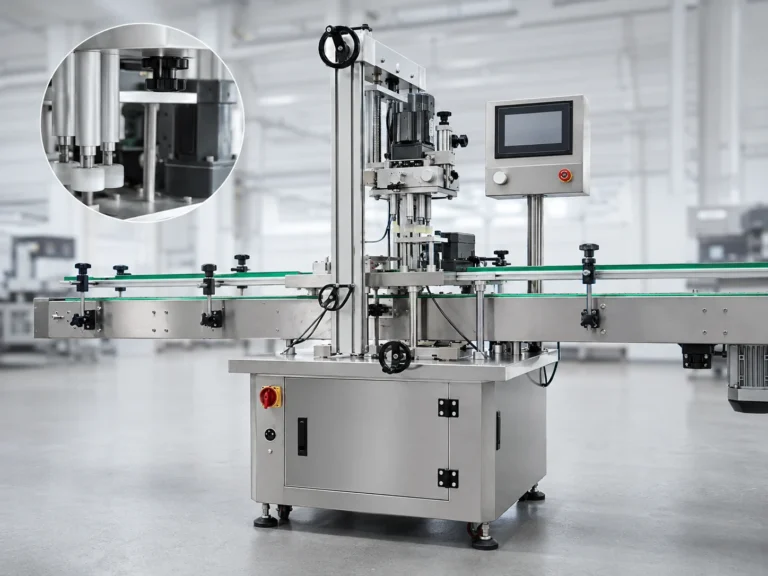

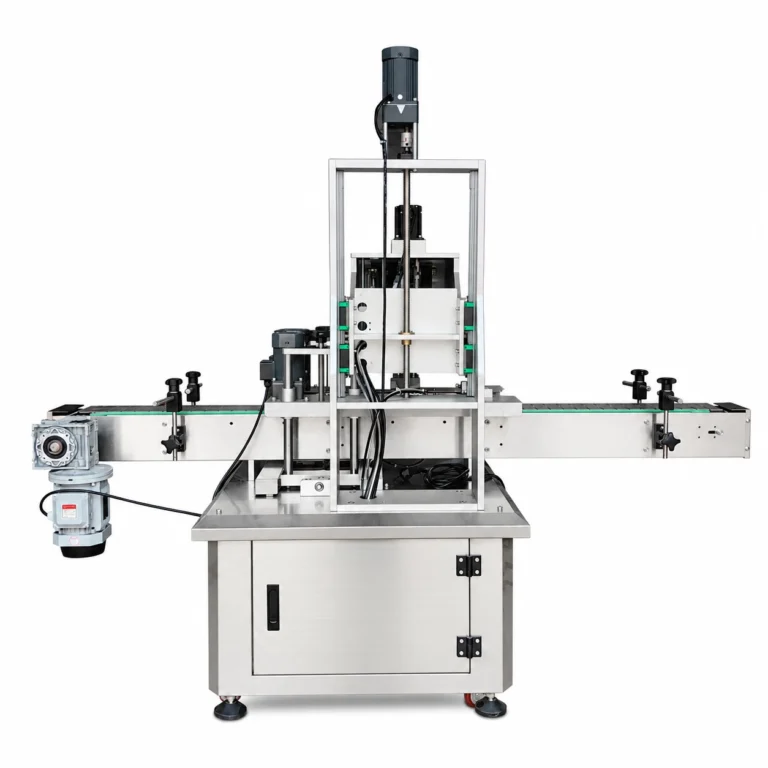

Automatic bottle capping machine with conveyor on white background LEKA-CP-A-servo capping machine view LEKA automatic four-wheel bottle capping machine with conveyor and bottle-gripping belts Servo capping machine with conveyor for controlled bottle cap tightening LEKA-CP-B-servo chuck-type servo lock capping machine LEKA bottle capping machine with bottle-gripping belts and tightening rollers Automatic bottle capping machine detail for screw cap packaging lines LEKA-CP-A-servo capping machine view
Desire

Specs that matter for a quote

Figures below come from the equipment record. Output and final settings depend on bottle, cap and line conditions — confirm with samples.

Machine ModelLEKA-CP-A-servo
Machine TypeServo four-wheel capping machine
ApplicationAutomatic capping for bottles with different height requirements
Speed (reference)2200–3000 BPH — depends on bottle, cap and line
Control SystemXINJE PLC with 7-inch touchscreen
AdjustmentServo-controlled lifting adjustment
ConveyanceDual-motor belt-gripping bottle conveyance
Container RangeBottles with different heights, cosmetic bottles, daily chemical bottles, food bottles and chemical bottles. Bottle height range should be confirmed before quotation.
Supported Cap TypesScrew caps, standard bottle caps and selected caps requiring controlled height adjustment.
Air RequirementAir source requirement should be confirmed if optional pneumatic cap handling modules are selected.
Machine DimensionsFinal machine size should be confirmed after bottle height range and line layout are reviewed.
Capping structureServo lifting four-wheel screw capping (belt, not chuck)
TorqueMechanical wheel setting with servo height control; confirmed with samples — no fixed Nm published

Variable bottle heights

Servo lifting helps adjust the capping section for different bottle height samples.

Screw-cap bottles

Cosmetic, daily chemical, food and chemical bottles with standard screw caps.

Repeat production

Touchscreen operation for practical changeover on repeat lines.

Sample / line-fit review — what to send

We review your parts before quotation so capping structure and line fit can be checked on your bottles and caps. This is a sample review, not a free production trial.

  • Product type and product characteristics
  • Bottle, cap and label samples or drawings
  • Target capacity and factory voltage
  • Factory layout or available space
Optional accessories

Cap feeder and aluminum foil sealing

These modules can be planned with LEKA-CP-A-servo after layout and sample review for cap supply and foil sealing.

LEKA vibratory cap feeder bowl with bottle caps on spiral track
Vibratory Cap Feeder

Vibratory bowl cap feeder

Orients bulk caps and feeds the track before capping. Confirm pairing with LEKA-CP-A-servo after sample review.

View Vibratory Cap Feeder
LEKA-GLF-1900 air-cooled aluminum foil sealing machine
LEKA-GLF-1900

Air-cooled aluminum foil sealing

Non-contact induction sealing for plastic and composite mouths; confirm sealing range and speed with samples.

View LEKA-GLF-1900
LEKA-GLF-4000 water-cooled aluminum foil sealing machine
LEKA-GLF-4000

Water-cooled aluminum foil sealing

Higher-duty induction sealing option when air-cooled is not enough — confirm with product and line review.

View LEKA-GLF-4000
Action

Request a sample review or project quote

Share bottle height range, cap samples and line goals once — we confirm CP-A-servo fit, then quote the configuration that matches your line.

Need to send

  • Product type and product characteristics
  • Bottle, cap and label samples or drawings
  • Target capacity and factory voltage
  • Factory layout or available space
FAQ

Quick answers

Is this a chuck or belt capper?

Four-wheel belt friction-wheel screw capping with servo lifting — not a chuck-type lock station.

How is height adjusted?

Servo-controlled lifting helps adjust the capping section for different bottle heights; final range is confirmed with samples.

What control system is used?

XINJE PLC with a 7-inch touchscreen for production and changeover adjustments.

Is torque published in Nm?

No fixed Nm is published. Mechanical capping-wheel pressure/position is set and confirmed with cap samples.

Can it connect to filling or labeling?

Yes. Cap feeder/sorter, foil sealing, labeling, coding and conveyor can be planned after layout review.

Is the standard machine CE / CSA / UL certified?

The standard machine is not CE / CSA / UL certified (and is not RCM or other regional-certified by default). Destination upgrades such as CE, CSA, UL or Australia RCM / AS·NZS can be discussed on RFQ.
