Standard four-wheel belt capping LEKA-CP-A

Standard Four-Wheel Screw Cap Capping

LEKA-CP-A is a compact automatic four-wheel belt capping machine for common screw-cap bottles — XINJE PLC with 7-inch touchscreen, dual-motor belt grip and a 2-meter packaging line platform reference.

Output: 2200–3000 BPH Four-wheel screw capping XINJE PLC + 7″ touchscreen Dual-motor belt grip
Interest

Compact four-wheel capping for common screw caps

For cosmetics, food, detergent, chemical and daily-use bottles moving from manual capping to a stable automatic screw-cap process on a compact line platform.

01

Four-wheel screw capping

Four capping wheels support stable tightening for common screw-cap bottles in automatic production.

02

Dual-motor belt grip

Bottles are gripped by dual side belts and conveyed under the capping section.

03

XINJE PLC + 7″ HMI

XINJE PLC and 7-inch touchscreen help operators adjust production settings.

04

2 m platform reference

Compact 2-meter packaging line platform reference for standalone capping or filling/labeling connection.

05

Common screw caps

Positioned for standard screw caps and common bottle caps after sample review.

06

Sample & line-fit review

Send bottle and cap samples (or drawings). We confirm wheel setup and line layout before quotation — no free-trial promise.

Photos

Machine views

Views from the current equipment gallery for LEKA-CP-A (existing media; no factory text banners added).

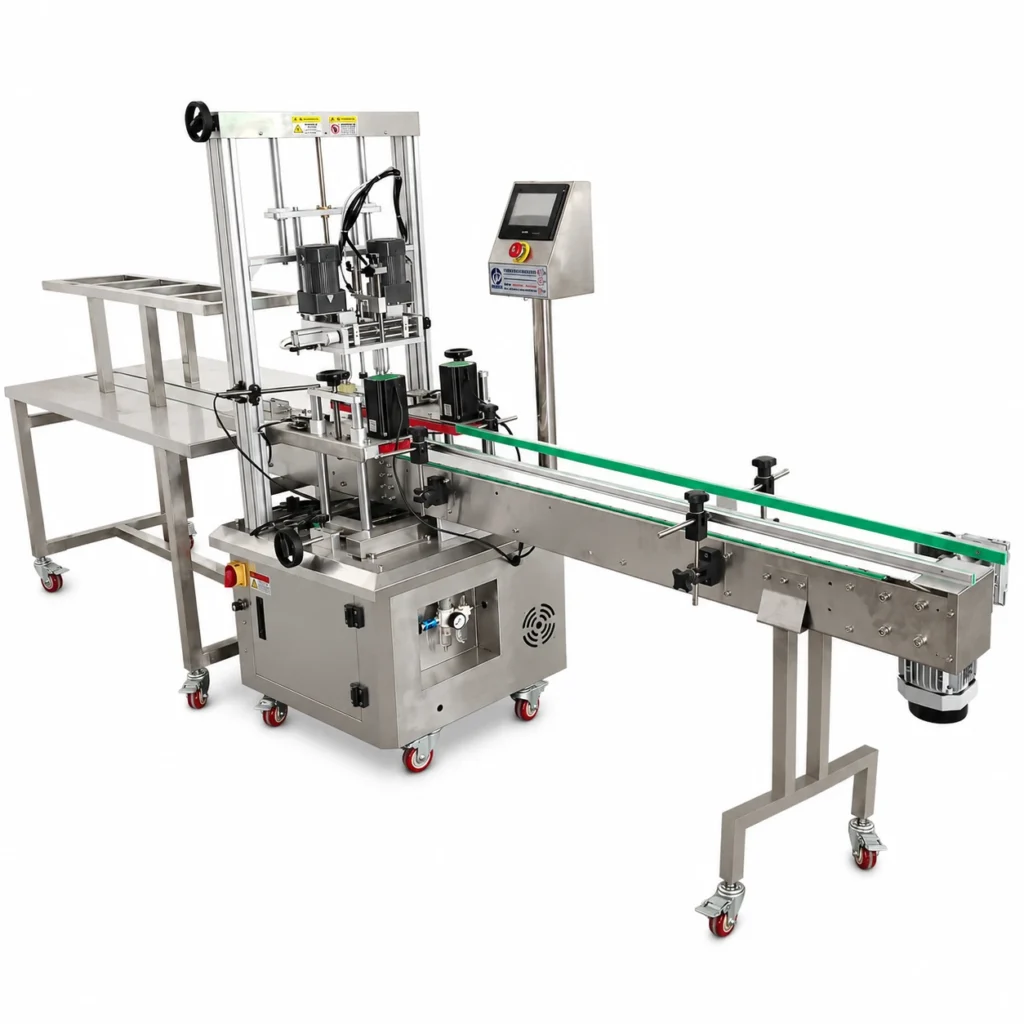

LEKA automatic four-wheel bottle capping machine with conveyor and bottle-gripping belts Automatic capping and aluminum foil induction sealing machines connected by conveyor Standard capping machine with conveyor for bottle cap tightening Automatic bottle capping machine detail for screw cap packaging lines LEKA-CP-A capping machine view LEKA-CP-A capping machine view LEKA-CP-A capping machine view LEKA-CP-A capping machine view
Desire

Specs that matter for a quote

Figures below come from the equipment record. Output and final settings depend on bottle, cap and line conditions — confirm with samples.

Machine ModelLEKA-CP-A
Machine TypeStandard four-wheel capping machine
ApplicationAutomatic capping for common screw cap bottles
Speed (reference)2200–3000 BPH — depends on bottle, cap and line
Control SystemXINJE PLC with 7-inch touchscreen
ConveyanceDual-motor belt-gripping bottle conveyance
Line Platform2-meter packaging line platform reference configuration
Suitable CapsScrew caps and standard bottle caps
Container RangeRound bottles, daily chemical bottles, food bottles, cosmetic bottles and chemical bottles with standard screw cap structures. Bottle height, diameter, neck size and cap samples should be confirmed before quotation.
Supported Cap TypesScrew caps and standard bottle caps. Special caps should be checked by sample before final configuration.
Air RequirementAir source requirement should be confirmed if optional cap feeding, sorting or reject devices are selected.
Machine DimensionsReference configuration includes a 2-meter packaging line platform. Final layout should be confirmed with the full line arrangement.
Capping structureFour-wheel screw capping (belt, not chuck)
Line platform2-meter packaging line platform reference configuration
TorqueConfirmed with bottle and cap samples — no fixed Nm published

Screw caps

Standard screw caps and common bottle caps after sample review.

Round & daily-use bottles

Round bottles for cosmetic, food, detergent and chemical use.

Compact line start

2-meter platform reference for standalone capping or filling/labeling connection.

Sample / line-fit review — what to send

We review your parts before quotation so capping structure and line fit can be checked on your bottles and caps. This is a sample review, not a free production trial.

  • Product type and product characteristics
  • Bottle, cap and label samples or drawings
  • Target capacity and factory voltage
  • Factory layout or available space
Optional accessories

Cap feeder and aluminum foil sealing

These modules can be planned with LEKA-CP-A after layout and sample review for cap supply and foil sealing.

LEKA vibratory cap feeder bowl with bottle caps on spiral track
Vibratory Cap Feeder

Vibratory bowl cap feeder

Orients bulk caps and feeds the track before capping. Confirm pairing with LEKA-CP-A after sample review.

View Vibratory Cap Feeder
LEKA-GLF-1900 air-cooled aluminum foil sealing machine
LEKA-GLF-1900

Air-cooled aluminum foil sealing

Non-contact induction sealing for plastic and composite mouths; confirm sealing range and speed with samples.

View LEKA-GLF-1900
LEKA-GLF-4000 water-cooled aluminum foil sealing machine
LEKA-GLF-4000

Water-cooled aluminum foil sealing

Higher-duty induction sealing option when air-cooled is not enough — confirm with product and line review.

View LEKA-GLF-4000
Action

Request a sample review or project quote

Share bottle and cap details once — we confirm CP-A fit, then quote the configuration that matches your line.

Need to send

  • Product type and product characteristics
  • Bottle, cap and label samples or drawings
  • Target capacity and factory voltage
  • Factory layout or available space
FAQ

Quick answers

What bottles and caps fit LEKA-CP-A?

It is positioned for common screw-cap bottles — round, daily chemical, food, cosmetic and chemical bottles. Confirm bottle height, diameter, neck and cap samples before quotation.

Is this a chuck or belt capper?

Four-wheel belt friction-wheel screw capping — not a chuck-type lock station.

How is tightening controlled?

Mechanical torque is adjusted by capping-wheel pressure and position. Final setting is confirmed with your cap samples — no fixed Nm is published.

What control system does it use?

XINJE PLC with a 7-inch touchscreen for production and changeover adjustments.

Can it connect to filling or labeling?

Yes. Cap feeder/sorter, foil sealing, labeling, coding and conveyor can be planned after layout review.

Is the standard machine CE / CSA / UL certified?

The standard machine is not CE / CSA / UL certified (and is not RCM or other regional-certified by default). Destination upgrades such as CE, CSA, UL or Australia RCM / AS·NZS can be discussed on RFQ.
