LEKA-LB020

LEKA-LB020 Automatic Double-Side Multifunction Labeling Machine

LEKA-LB020 is an automatic double-side multifunction labeling machine for flat and square bottles. It supports single-side or double-side labeling, and can be configured with optional air-driving / roller labeling sets for round bottle labeling or multi-side labeling on square bottles. Model selection should be confirmed according to product shape, bottle thickness, bottle height, label width, label length, required speed, bottle stability, voltage, and optional coding or inspection requirements.

Labeling Machine AutomaticLine Integration
LEKA-LB020 Automatic Double-Side Multifunction Labeling Machine
±1mm
Accuracy
220V / 50Hz / 3000W
Power / Voltage

Key Advantages

Why customers select this labeling machine.

1

Single-Side and Double-Side Labeling

Designed for flat and square bottles that require one-side or two-side label application, with adjustment for different product specifications.

2

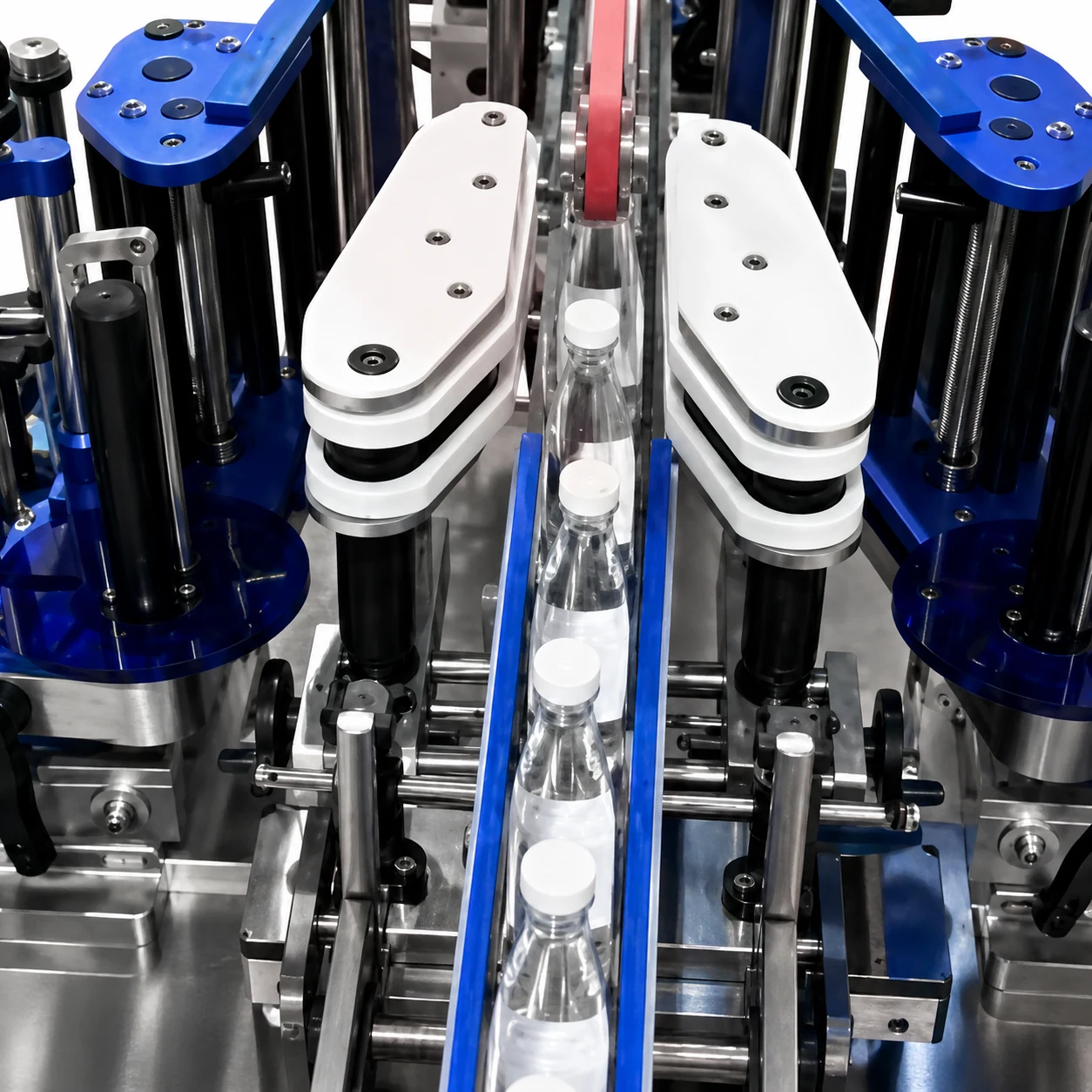

Adjustable Pressing and Shaping Control

The pressure between the active axis and press roller can be adjusted, helping guide label running direction and reduce label distortion during application.

3

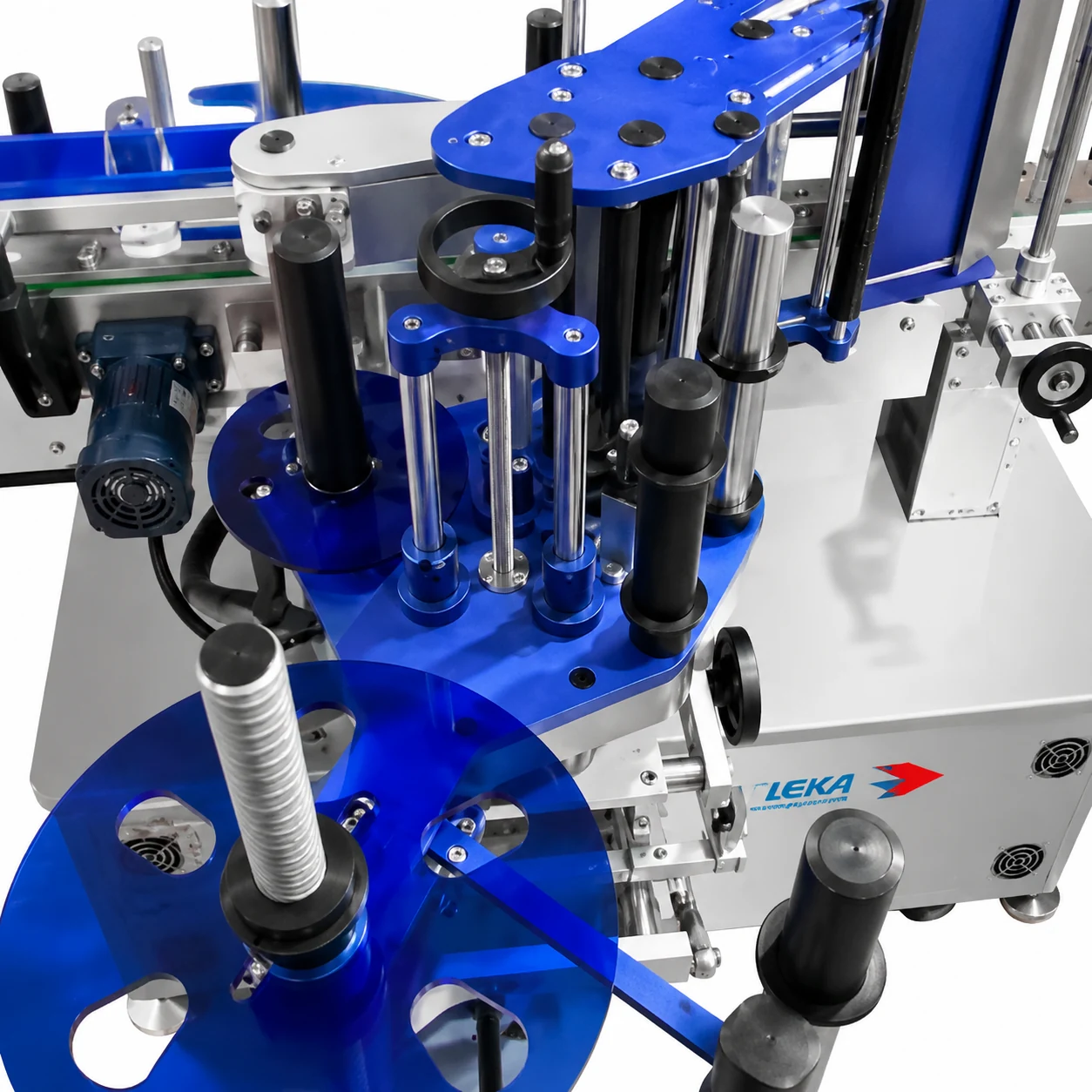

Servo Closed-Loop Labeling Control

Servo motor drive supports closed-loop control and high-precision positioning, while German and Japanese sensor options support bottle and label detection.

4

Fast Label Head Adjustment

The labeling head supports eight-direction adjustment, allowing operators to adjust the machine for different bottles and label positions more efficiently.

5

Optional Online and Bottle-Handling Modules

Optional round-bottle mechanism, printer, vision inspection, reject mechanism, and non-standard customization can be reviewed according to production requirements.

Product Fit

What this labeling machine can run, and where it sits in your line.

Suitable Products

Suitable for square bottles, flat bottles, and similar rectangular containers that require automatic double-side labeling or single-side labeling. Optional air-driven and roller labeling devices can be configured for precise round bottle labeling, as well as three-side or four-side labeling on square bottles.

Line Position

Labeling stage after filling and capping, with optional connection to coding, inspection, conveying, collection, and downstream packaging equipment.

Container Types

Bottle

Bottle Shapes

Round BottleSquare BottleFlat BottleIrregular Bottle

Labeling Methods

Wrap-around LabelingSingle Side LabelingDouble Side LabelingFront & Back LabelingCustom Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
Up to 15,000 bottle /hour (BPH) (≈250 bottle /min). Actual peed depend on bottle hape, label length, bottle tability, labeling po ition, feeding condition, and line coordination.
Line Position
Labeling tage after filling and capping, with optional connection to coding, in pection, conveying, collection, and down tream packaging equipment.
Labeling Type
Wrap-around Labeling, Single Side Labeling, Double Side Labeling, Front & Back Labeling, Cu tom Labeling
Labeling Accuracy
±1mm

Labels

Label Position
Single- ide labeling, double- ide labeling, front and back labeling, and optional three- ide or four- ide labeling for quare or flat bottle . Optional round bottle wrap-around labeling can be configured with air-driven or roller labeling device .
Label Material
Self-adhe ive paper label , PP label , PET label , PVC label , and imilar pre ure- en itive label .
Label Size Range
Label width up to 195mm; label length up to 500mm. Cu tom label ize can be reviewed according to product ample and labeling po ition.
Label Roll Spec
Label roll inner diameter: 76.2mm; maximum outer diameter: 380mm.

Compatibility

Applicable Bottle Shape
Round Bottle, Square Bottle, Flat Bottle, Irregular Bottle
Date Code Integration
Optional

Electrical

Power / Voltage / Air
220V / 50Hz / 3000W

Additional

Machine Model
LEKA-LB020
Machine Type
Automatic double- ide multifunction labeling machine
Application
Single- ide or double- ide labeling for flat and quare bottle ; optional round bottle labeling and multi- ide quare bottle labeling
Production Speed
Up to 15,000 bottle /hour (BPH) (≈250 bottle /min). Actual peed depend on bottle hape, label length, bottle tability, labeling po ition, feeding condition, and line coordination.
Label Max Width
195mm, can be rai ed/cu tomized according to requirement
Label Max Length
500mm
Applicable Bottle / Product Size
Thickne ≥30mm; height ≤500mm
Label Roll Inner Diameter
Φ76.2mm
Label Roll Outer Diameter
Φ380mm
Outline Size
L3000 × W1700 × H1800 mm
Equipment Weight
380kg
Power Supply
220V / 50Hz / 3000W
Control and Components
Siemen PLC reference configuration, Pana onic ervo motor reference configuration, German and Japane e en or option , HMI operation, double pre ure roller label feeding, egmented clutch ten ion control, and CNC-machined part
Optional Modules
Round bottle mechani m, online printer, vi ion in pection and reject mechani m, optional air-driving / roller labeling et, and non- tandard cu tomization
Working Principle
Product are conveyed through the labeling tation, detected by en or , and labeled by ervo-driven label feeding head . Pre ing and haping tructure help apply label on flat or quare bottle urface , while optional air-driving / roller mechani m can be reviewed for round bottle labeling.
Container Range
Suitable for flat bottle , quare bottle , and imilar rectangular container . The upplied catalog li t applicable product thickne ≥30mm and height ≤500mm. Optional mechani m can be reviewed for round bottle labeling and three- ide or four- ide labeling on quare bottle .
Supported Bottle Types
Flat bottle , quare bottle , rectangular container , and imilar product . Product thickne ≥30mm and height ≤500mm. Optional round bottle mechani m can be reviewed for cylindrical bottle .
Supported Cap Types
Not cap- pecific. Bottle tability, filled or empty bottle condition, and up tream/down tream line connection hould be confirmed before final configuration.
Supported Label Positions
Single- ide labeling, double- ide labeling, optional round bottle wrap-around labeling, and optional three- ide or four- ide labeling for quare bottle .
Air Requirement
Optional air-driving / roller labeling function may require compre ed air. Exact air pre ure and air con umption are not li ted in the upplied reference and hould be confirmed before quotation.
Machine Dimensions
L3000 × W1700 × H1800 mm; equipment weight 380kg.
Factory Layout Requirements
Confirm conveyor height and width, product feeding tability, up tream filling/capping tatu , down tream coding/in pection/reject/packing connection, required output, voltage tandard, and available factory pace before final layout.

Operation & Support

Day-to-day operation, maintenance, and project support.

Maintenance Points

Changeover should consider product thickness, bottle height, label width, label length, one-side or two-side labeling position, product surface shape, and bottle stability. The labeling head supports eight-direction adjustment and HMI parameters can be saved and recalled.

Operators Required

1 operator for regular operation; additional support may be needed during product changeover, sample testing, or line adjustment.

Safety Protection

Safety protection can include emergency stop buttons, overload protection, sensor-based product detection, missing-label or no-product no-label control, protective covers for key moving parts, and line stop coordination with upstream or downstream equipment when integrated into a complete packaging line.

Custom Options

Optional configurations include round bottle labeling device, air-driven or roller labeling set, three-side or four-side labeling support, coding printer, vision inspection, reject device, and line integration with filling, capping, conveying, and collection systems.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right labeling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
