LEKA-FLSF-04-A

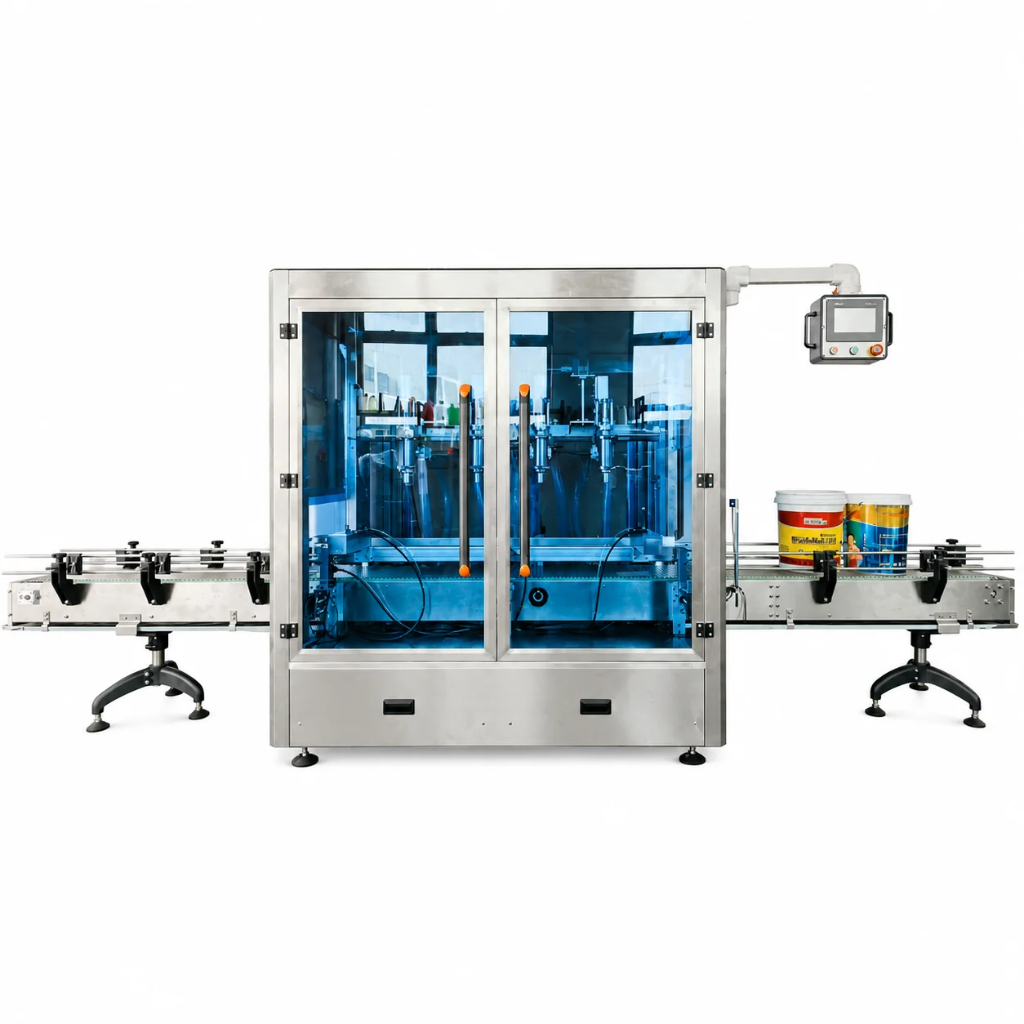

LEKA-FLSF-04-A 4-Head Servo Liquid Filling Machine

Large-volume liquid filling for 5L-30L containers, including oils, liquid products and larger bottle or barrel applications.

Filling Machine AutomaticLine Integration
LEKA-FLSF-04-A 4-Head Servo Liquid Filling Machine
240-480 barrel /hour
Output Range
4 head
Filling Heads
+/-1%
Accuracy
5L-30L
Volume Range

Key Advantages

Why customers select this filling machine.

1

Large filling range

Designed for 5L-30L high-capacity liquid filling projects.

2

Four-head servo filling

Supports stable dosing for larger containers with automatic conveyor handling.

3

PLC touchscreen control

Operator settings can be managed through a practical touchscreen interface.

Product Fit

What this filling machine can run, and where it sits in your line.

Suitable Products

Large-volume liquid filling for 5L-30L containers, including oils, liquid products and larger bottle or barrel applications.

Line Position

Filling stage before capping, sealing, labeling, coding and collection.

Product Properties

Low ViscosityMedium Viscosity

Container Types

Bottle

Bottle Shapes

Round BottleSquare BottleSample Required

Cap Types

Custom Cap

Labeling Methods

Custom Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
240-480 barrel /hour
Line Position
Filling tage before capping, ealing, labeling, coding and collection.
Filling Method
Pump Filling
Filling Heads
4 head
Filling Volume Range
5L-30L
Filling Accuracy
+/-1%

Compatibility

Suitable Viscosity
Low to medium vi co ity liquid product ; confirm by ample before final quotation.
Anti-Foam Option
Sample Te t Required
Drip-Proof Option
Optional
Particle Handling
Sample Te t Required
Corrosive Liquid Support
Sample Te t Required

Mechanical

Contact Material
SUS304 frame with SUS316/SUS316L contact part according to product requirement .
CIP Cleaning
Optional
Machine Material
SUS304 frame; contact material confirmed according to product ample .

Electrical

Power / Voltage / Air
3.2KW; 220V 50Hz reference; de tination voltage can be cu tomized.; 0.4-0.6MPa reference where pneumatic part are u ed.

Additional

Machine Model
LEKA-FLSF-04-A
Machine Series
Multi-Head Servo Filling Machine
Machine Type
4-head high-capacity ervo liquid filling
Filling Range
5L-30L
Power
3.2KW
Machine Size
4000 x 1050 x 1750 mm
Control System
PLC and touch creen operation
Voltage
220V 50Hz reference; de tination voltage can be cu tomized.
Air Pressure
0.4-0.6MPa reference where pneumatic part are u ed.

Operation & Support

Day-to-day operation, maintenance, and project support.

Changeover Time

Changeover depends on bottle size, filling volume, product viscosity and line connection. For similar containers, operators mainly adjust filling settings, nozzle height, guides and conveyor position.

Cleaning Method

Flush and clean the product-contact pump, hoses and filling nozzles after production. Removable contact parts can be cleaned during product changeover according to the liquid type.

Maintenance Points

Routine cleaning, nozzle inspection, pump maintenance and changeover checks should be planned according to product viscosity and production frequency.

Spare Parts List

Recommended spare parts include filling nozzles, seals, O-rings, product hoses, pump wearing parts, sensors and commonly used pneumatic or electrical components.

Operators Required

Usually 1-2 operators depending on bottle feeding, product supply, downstream capping/labeling connection and factory layout.

Safety Protection

Safety configuration can include emergency stop, electrical protection, overload protection and protective covers for moving parts according to the final machine layout.

Custom Options

Can be connected with capping, sealing, labeling, coding, conveyor and collection systems according to product, bottle, output and factory layout.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right filling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
