LEKA GZDT Servo Pump Filling Machine Series

GZDT Servo Pump Filling Machine

GZDT servo liquid filling machine series for gear pump filling, high-temperature filling, anti-corrosion applications, and rotary lobe pump filling. Filling head quantity, pump type, filling volume, contact material, and conveyor design can be customized according to product samples, viscosity, bottle type, output target, and production layout.

← Back to Filling Machine Center

Filling Range

Custom confirmation required

Available Heads

Customizable head quantity

Filling Method

Servo pump filling

Application

Standard, heated, anti-corrosion, rotary lobe

Overview

The LEKA GZDT servo pump filling machine series is designed for pump-based liquid filling projects that require stable dosing, flexible pump selection, and a customizable filling-head layout. The series includes standard gear pump filling, high-temperature pump filling, anti-corrosion filling for special containers, and rotary lobe pump filling for wider filling requirements. For complete production planning, this unit can be matched with upstream and downstream filling machines and packaging equipment according to site layout.

Servo Pump Filling Control Gear pump or rotary lobe pump filling method is selected according to product viscosity, target volume, and filling accuracy requirement.

Multiple Product Conditions Standard, heated, high-temperature, and anti-corrosion versions are available for project confirmation.

Container Adaptation Straight-neck and slant-neck bottle handling can be evaluated with bottle samples before final conveyor and nozzle configuration.

Line Integration Support Filling-head quantity, conveyor height, bottle positioning, electrical standard, and connection with other filling machine modules can be reviewed during layout design.

Available Models

GZDT-CLB01

Standard servo pump filling system for high-speed liquid filling with simple operation and high filling accuracy. Filling-head quantity and final filling range depend on product condition, required output, and sample testing.

Standard type Gear pump Servo filling Configurable heads

GZDT-HGZ01

High-temperature pump filling system for constant-temperature or high-temperature filling applications, equipped with heated stirring configuration.

High-temperature Heated stirring Gear pump

GZDT-XKJ01

Anti-corrosion type with adjustable-angle filling head for slant-neck and straight-neck bottles. Filling-head quantity and molded conveyor details require bottle sample confirmation.

Anti-corrosion Angled filling head Custom conveyor

GZDT-ZZB01

Rotary lobe pump servo filling system for wider filling range requirements. Pump selection should be confirmed with viscosity, particles, and filling volume.

Rotary lobe pump Wide filling range Servo filling Configurable heads

Model Comparison

View Larger

Parameter	GZDT-CLB01	GZDT-HGZ01	GZDT-XKJ01	GZDT-ZZB01	Notes
Machine Name	Magnetic Pump Filling Machine	High-Temperature Heating Filling Machine	Anti-Corrosion Filling Machine	Rotary Lobe Pump Filling Machine	Names are written without head-count limits because filling-head quantity can be customized.
Filling Method	Gear pump servo filling	High-temperature pump filling	Gear pump servo filling	Rotary lobe pump servo filling	Final pump structure should be confirmed by viscosity, filling volume, and product condition.
Typical Application	Standard liquid filling with controlled dosing accuracy	Constant-temperature or high-temperature filling with heating requirement	Corrosive liquid or special container filling projects	Products requiring a wider filling range or rotary lobe pump handling	Sample testing is recommended before confirming the final configuration.
Container Compatibility	Straight-neck bottles, project confirmation required	Containers suitable for heated filling, project confirmation required	Slant-neck and straight-neck bottles	Container confirmation required according to filling volume	Special bottles may require guide rail, conveyor, or nozzle adjustment.

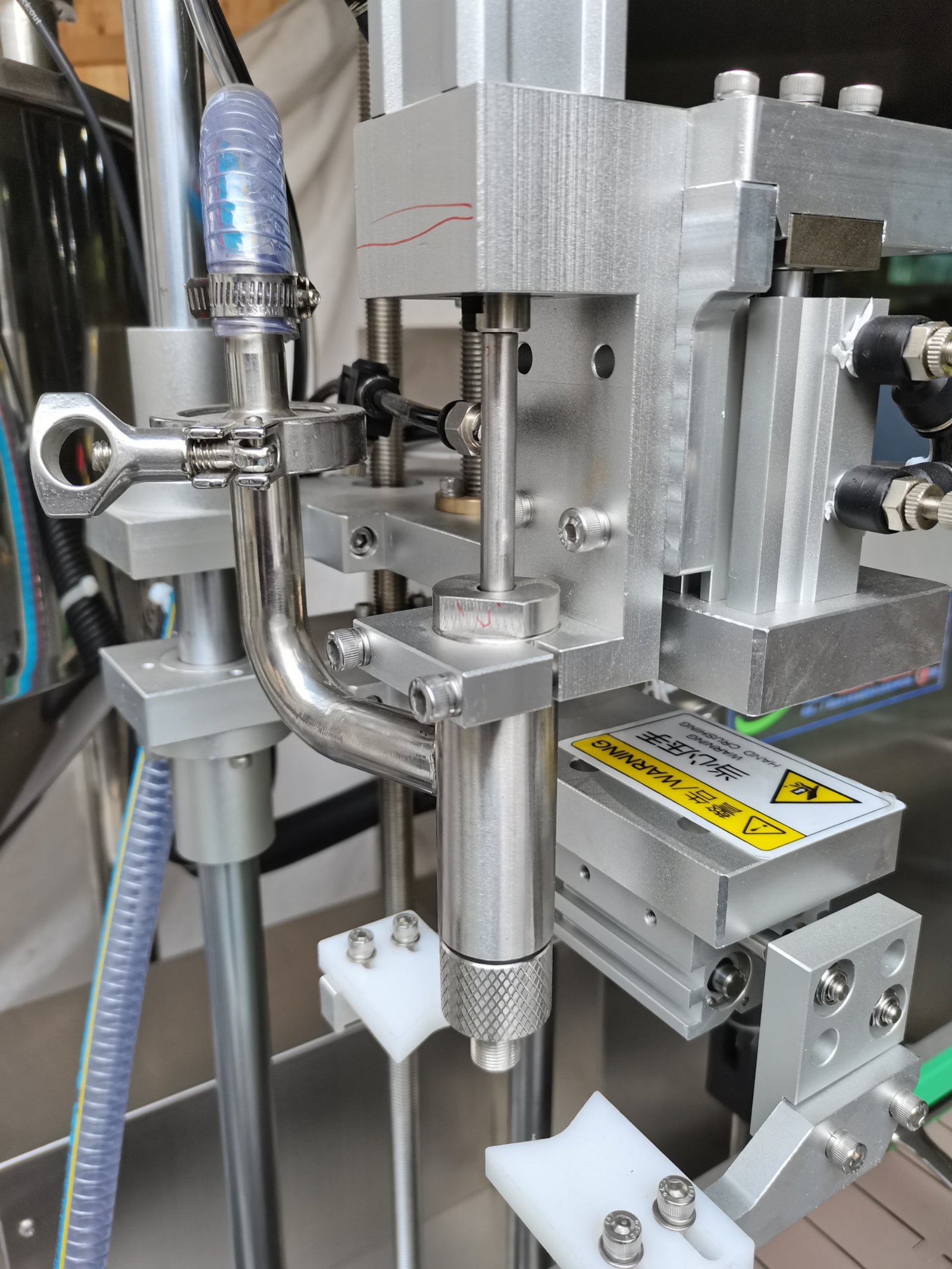

Filling Head Configuration	Customizable filling-head quantity	Customizable filling-head quantity	Customizable filling-head quantity with adjustable-angle head option	Customizable filling-head quantity	Head quantity is selected according to required output, bottle spacing, and site layout.
Power	1.5 kW	3.0 kW	1.5 kW	1.5 kW	Values follow the supplied Chinese parameter sheet for listed models; customized versions may vary.
Machine Size	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	2000 × 850 × 1700 mm	Base machine size, shown as L × W × H; equivalent to 200 × 85 × 170 cm in the supplied sheet.
Filling Accuracy	Subject to sample testing	Subject to sample testing	Subject to sample testing	Subject to sample testing	Accuracy depends on product flow behavior, filling volume, temperature, and pump selection.
Line Integration	Available on request	Available on request	Available on request	Available on request	Can be evaluated with capping, labeling, coding, and conveyor layout requirements.

Key Component Specifications

View Larger

Component	Configuration	Notes

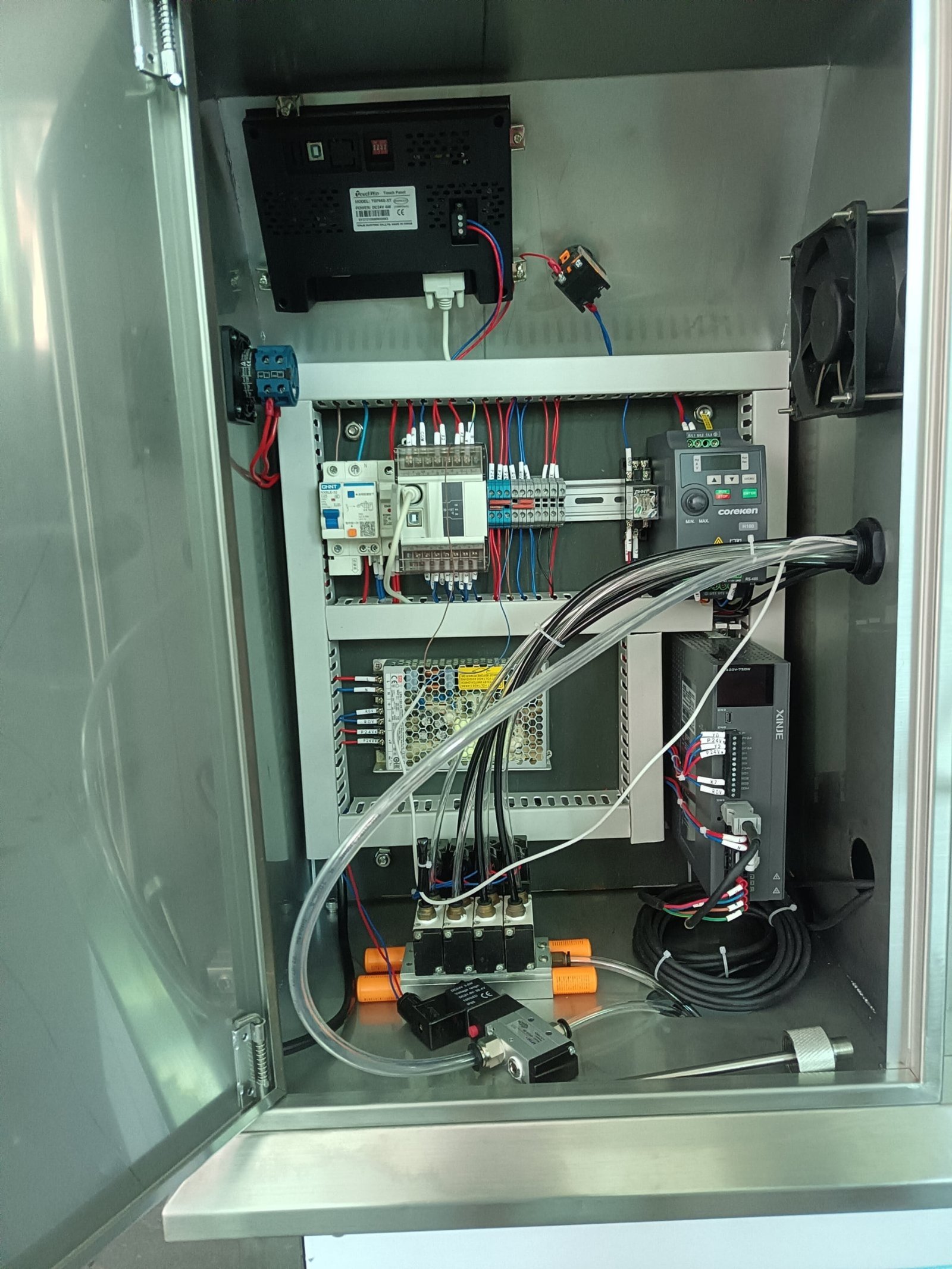

PLC Controller	Siemens / Delta / Xinjie	Brand configuration depends on project requirement and availability.

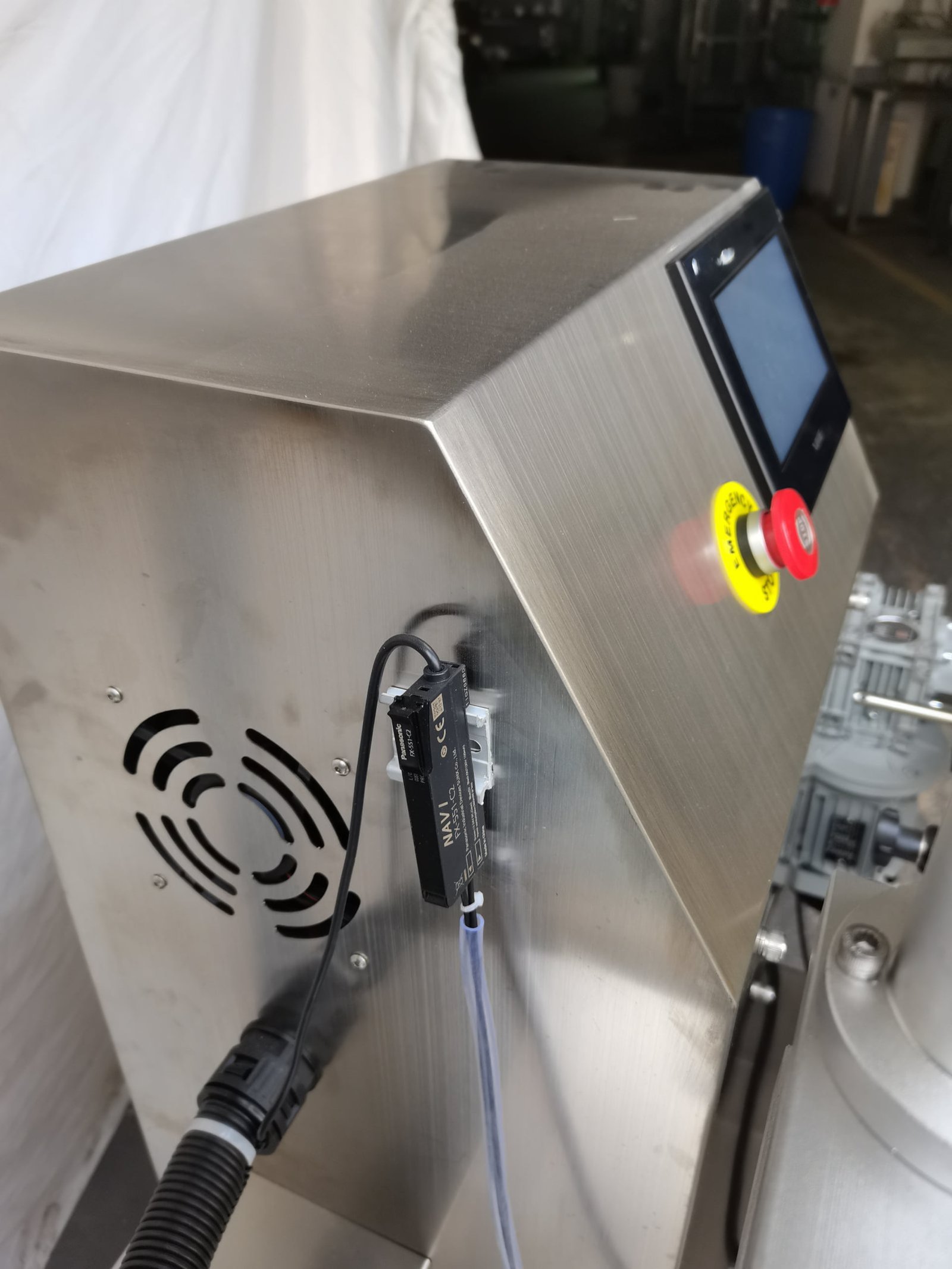

Detection Electric Eye	Panasonic / Sick	Used for bottle detection and filling position control.
Touchscreen HMI	Xinjie	Operator interface for filling parameter adjustment.

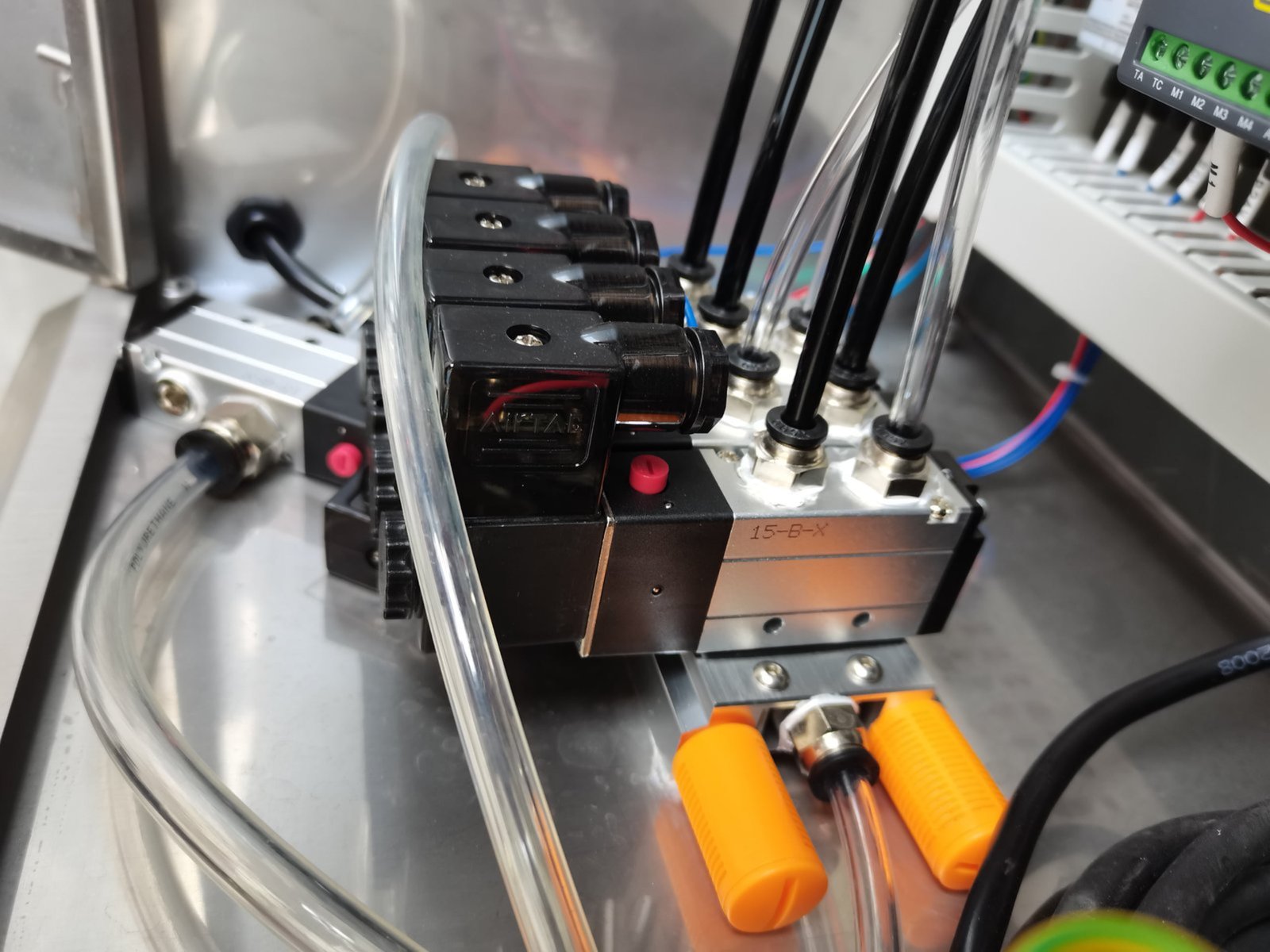

Pneumatic Solenoid Valve	Airtac / Star	Final brand should be confirmed by project configuration.

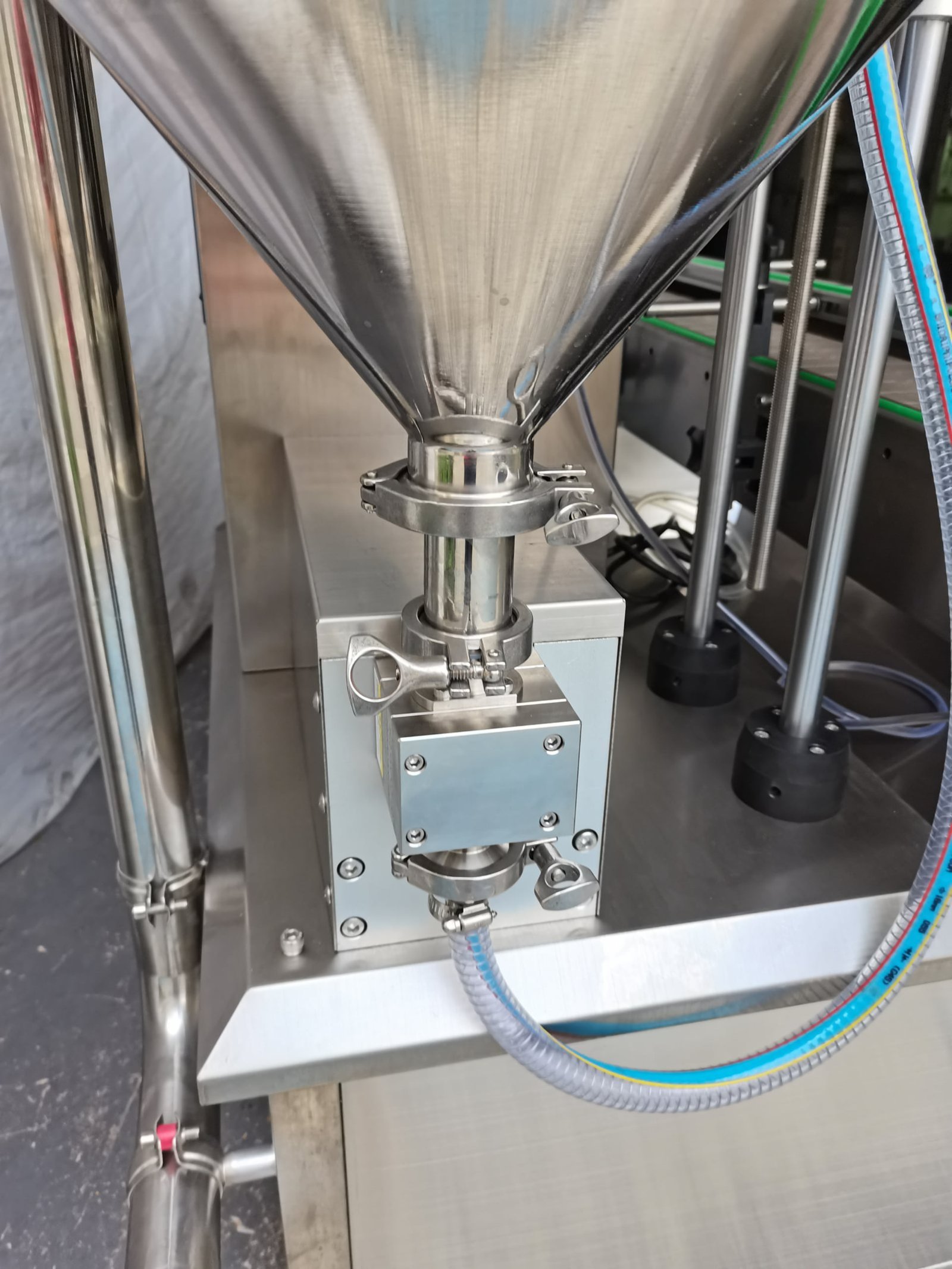

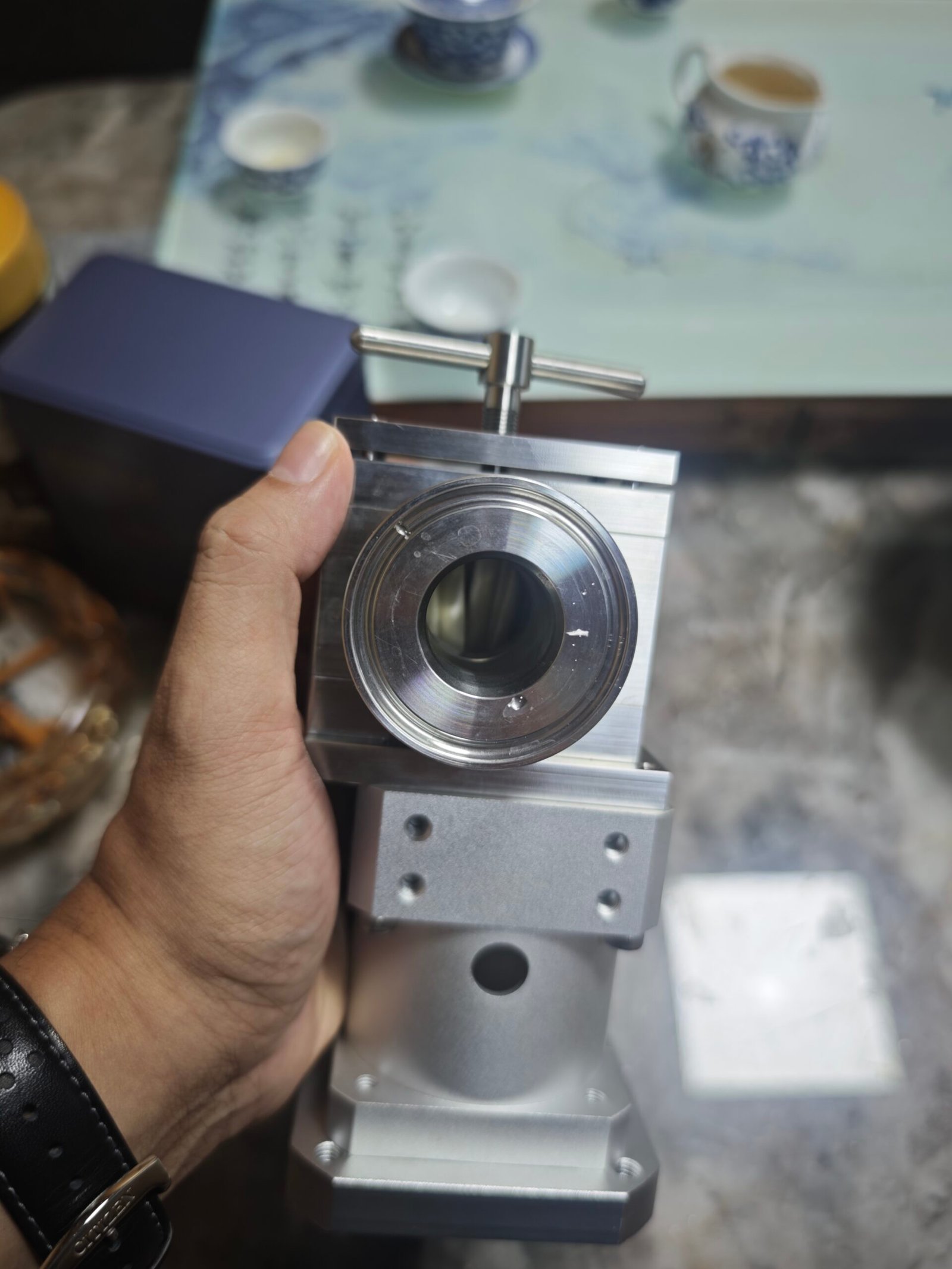

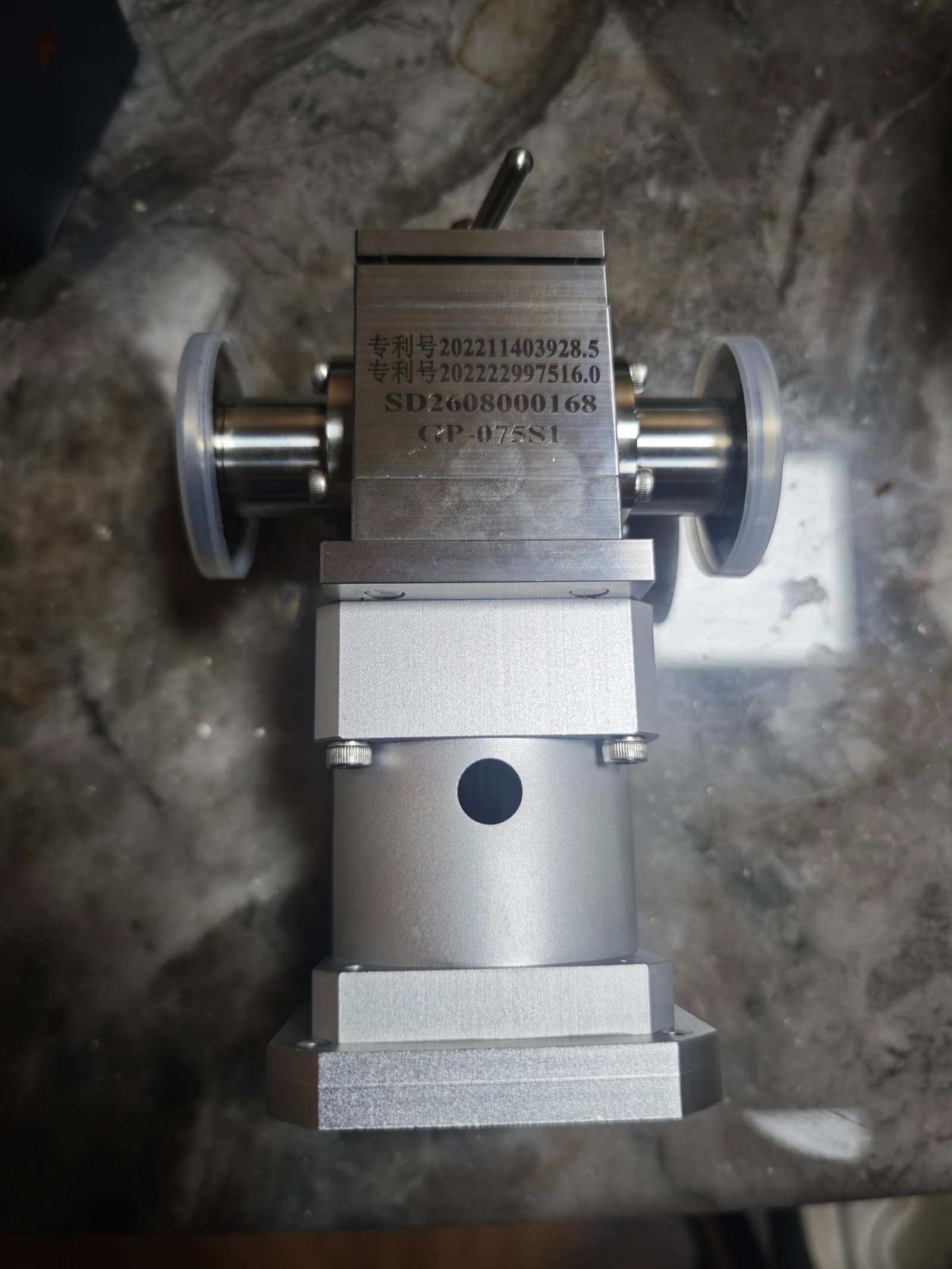

Pump	316 gear pump	Pump configuration follows the supplied parameter sheet and should be confirmed by product sample.
Switching Power Supply	Taiwan Mean Well	Electrical configuration should match site power standard.
Voltage	220V / 50Hz	Other voltage standards require confirmation before production.

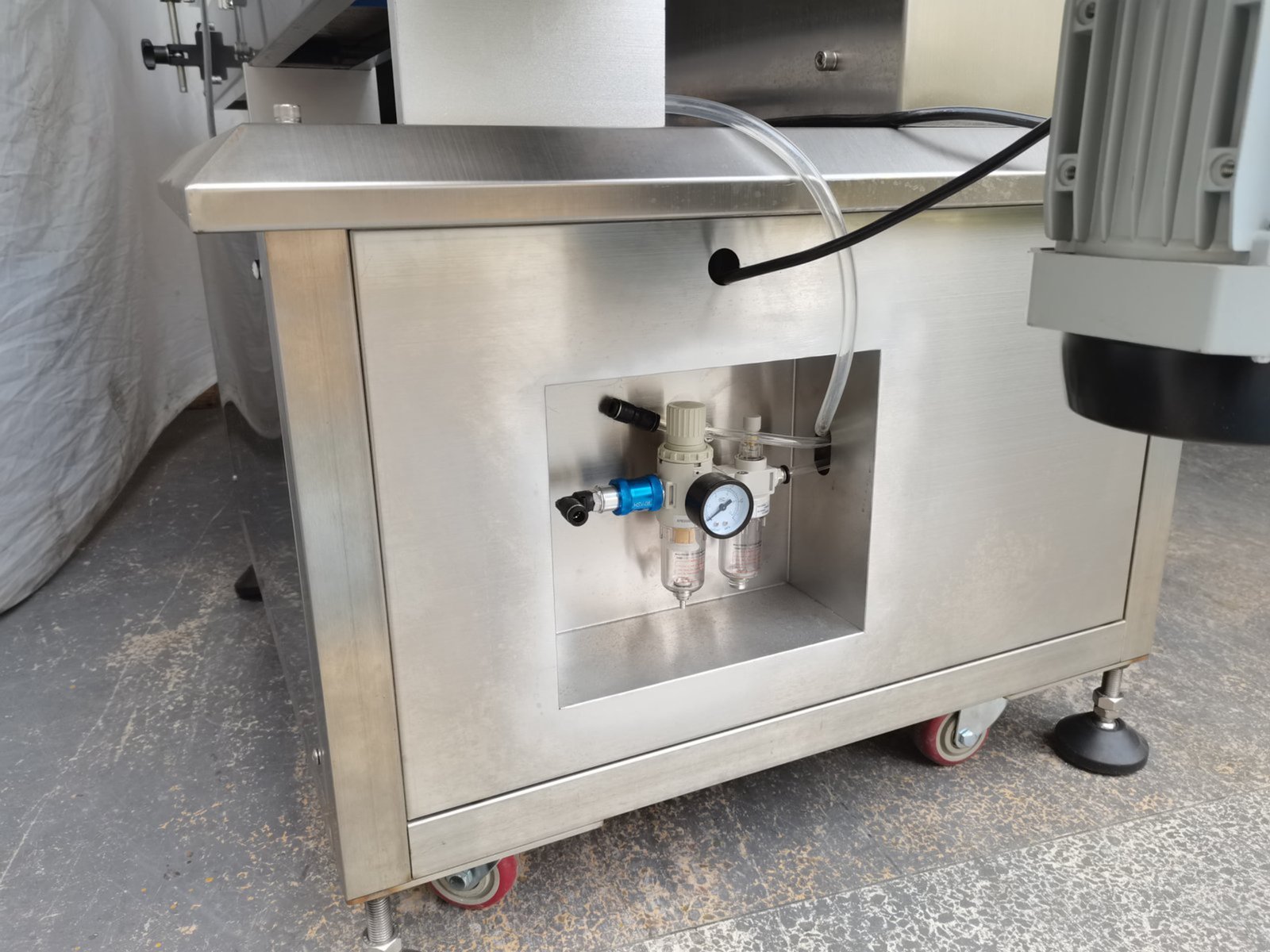

Air Pressure	0.4-0.6 MPa	Stable compressed air supply is required for pneumatic actions.

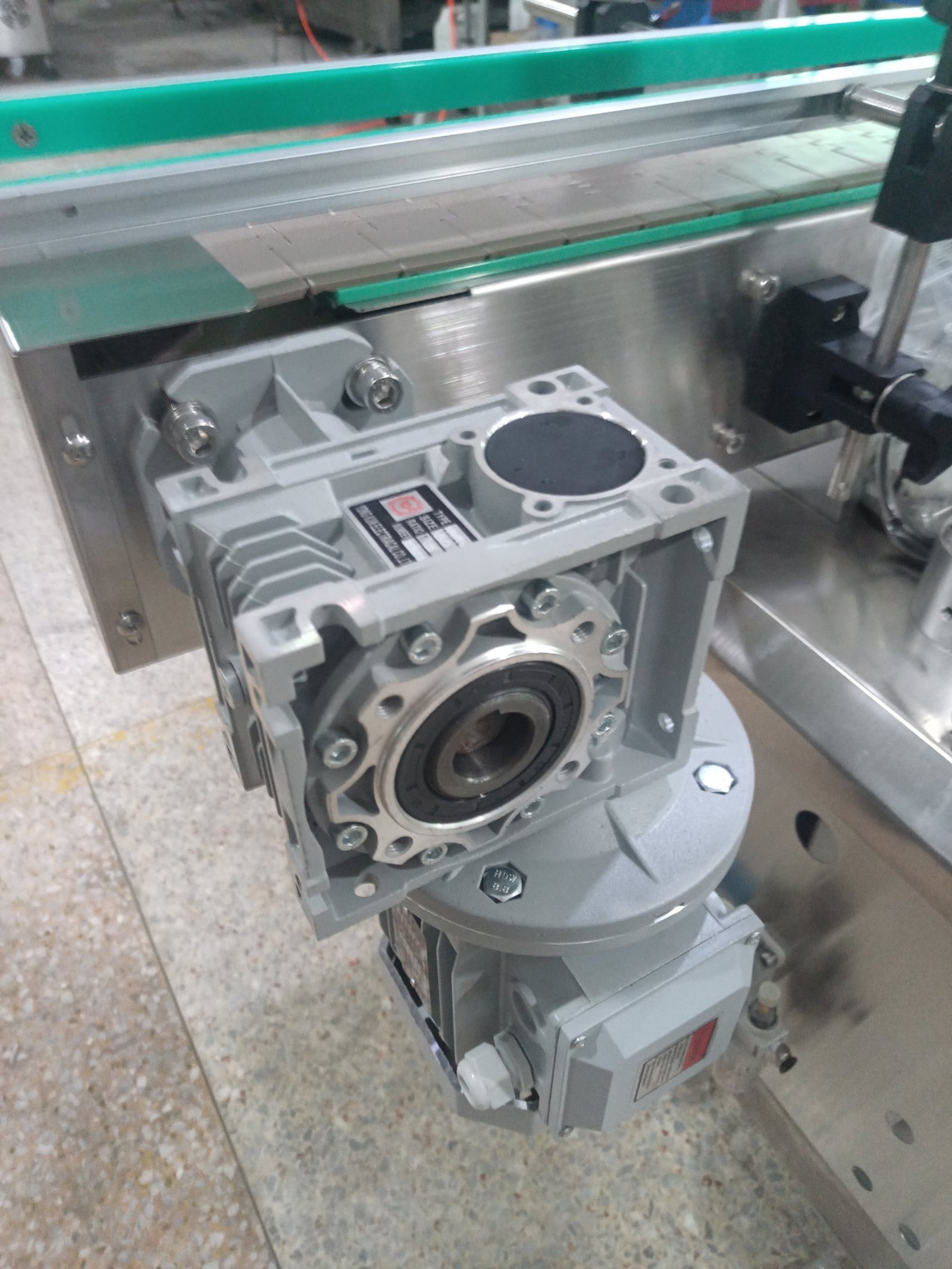

Conveyor Belt Motor	750W with frequency converter	Conveyor speed is adjusted according to filling rhythm.

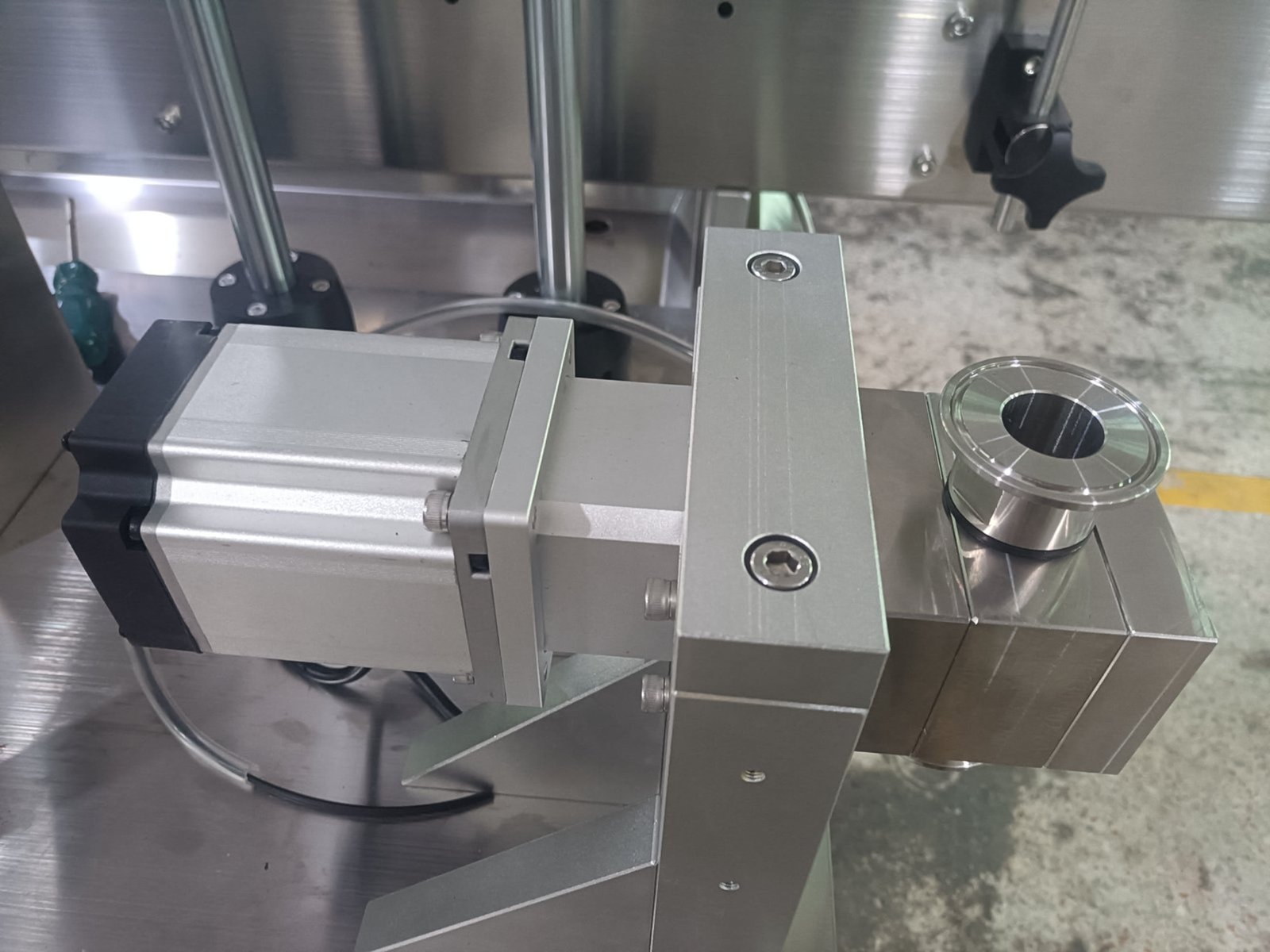

Lifting Servo Motor	Xinjie / Jiemeikang	Lifting servo configuration follows the supplied parameter sheet and project specification.

FAQ

Which model should be selected for standard liquid filling?

GZDT-CLB01 is the standard gear pump servo filling option. Product viscosity, filling volume, bottle opening, required output, and required accuracy should be checked before final selection.

Can this machine fill heated or high-temperature products?

GZDT-HGZ01 is configured for high-temperature pump filling with heated stirring. Temperature range, heat preservation method, and material compatibility require project confirmation.

Can it handle slant-neck bottles?

GZDT-XKJ01 can be configured with an adjustable-angle filling head for slant-neck and straight-neck bottles. Bottle samples or drawings are recommended before confirming the molded conveyor and head layout.

Is the rotary lobe pump model suitable for wider filling ranges?

GZDT-ZZB01 uses a rotary lobe pump servo filling method and is intended for wider filling range requirements. Final suitability depends on product viscosity, flow behavior, and sample testing.

Can this unit be integrated into a complete production line?

Yes. LEKA can evaluate conveyor connection, bottle handling, capping, labeling, coding, and other filling machines according to the factory layout.

What information is needed for quotation?

Please provide product name, viscosity, filling volume, filling temperature, bottle size, bottle neck type, required output or filling-head quantity, voltage standard, and available installation space.
