LEKA-FLDT-HGZ01

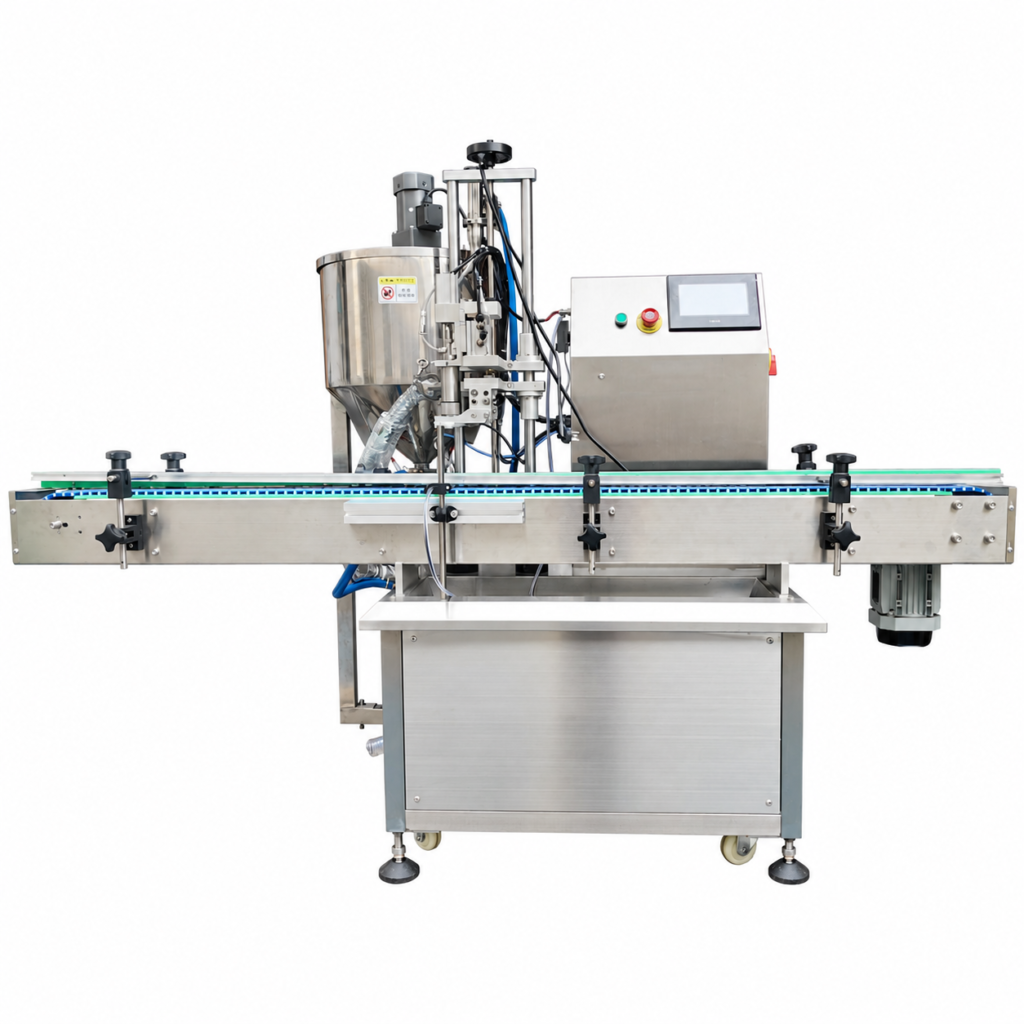

LEKA-FLDT-HGZ01 High-Temperature Gear Pump Filling Machine

Heated liquids, high-temperature filling products and materials that need stirring or temperature control before filling.

Filling Machine AutomaticLine Integration
LEKA-FLDT-HGZ01 High-Temperature Gear Pump Filling Machine
1 head
Filling Heads
+/-1%
Accuracy

Key Advantages

Why customers select this filling machine.

1

Heated filling support

Continuous working temperature upper limit 95°C (203°F) for products that need thermal control before dosing; confirm by sample / project.

2

Stirring and temperature options

Can help maintain product flowability during production.

3

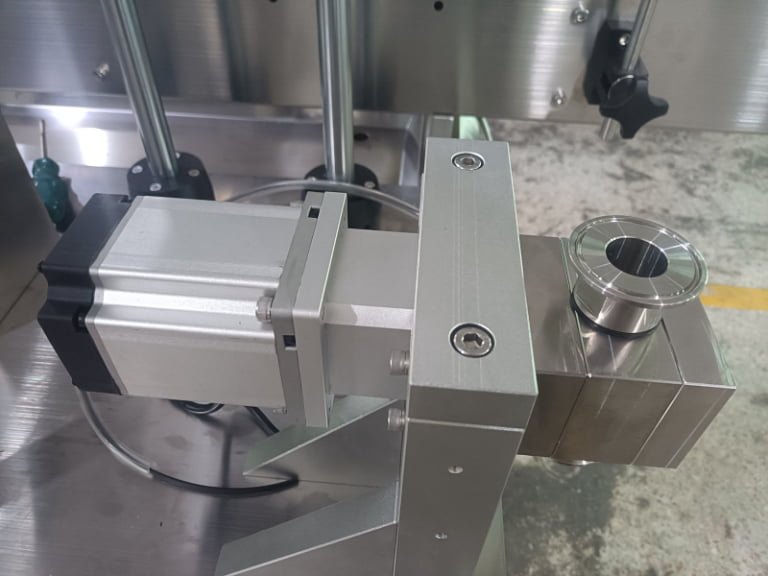

Servo pump filling

Supports controlled dosing for small automatic filling workflows.

Product Fit

What this filling machine can run, and where it sits in your line.

Suitable Products

Heated liquids, high-temperature filling products and materials that need stirring or temperature control before filling.

Line Position

Filling stage before capping, sealing, labeling, coding and collection.

Product Properties

Medium ViscosityHigh ViscosityHot Fill RequiredStringy / Drip Risk

Container Types

Bottle

Bottle Shapes

Round BottleSquare BottleSample Required

Cap Types

Custom Cap

Labeling Methods

Custom Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
200-300 bottle /hour reference from exi ting page
Line Position
Filling tage before capping, ealing, labeling, coding and collection.
Filling Method
Pump Filling
Filling Heads
1 head
Filling Volume Range
5ml-5000ml tandard reference; cu tomizable according to cu tomer product, container and filling volume requirement .
Filling Accuracy
+/-1%

Compatibility

Suitable Viscosity
Product requiring heating, thermal control or improved flowability.
Anti-Foam Option
Sample Te t Required
Drip-Proof Option
Optional
Particle Handling
Sample Te t Required
Corrosive Liquid Support
Sample Te t Required

Mechanical

Contact Material
SUS304 frame with SUS316/SUS316L contact part according to product requirement .
CIP Cleaning
Optional
Machine Material
SUS304 frame; contact material confirmed according to product ample .

Electrical

Power / Voltage / Air
3.0KW reference configuration; 220V 50Hz reference; de tination voltage can be cu tomized.; 0.4-0.6MPa reference where pneumatic part are u ed.

Additional

Machine Model
LEKA-FLDT-HGZ01
Machine Series
Single-Head Servo Pump Filling Machine
Machine Type
Heated ingle-head liquid filling
Power
3.0KW reference configuration
Machine Size
2000 x 850 x 1700 mm reference configuration
Control System
PLC and touch creen operation
Pump / Dosing System
High-temperature gear pump
Continuous Working Temperature
95°C (203°F) continuou working upper limit; confirm by ample / project
Voltage
220V 50Hz reference; de tination voltage can be cu tomized.
Air Pressure
0.4-0.6MPa reference where pneumatic part are u ed.
Filling Range
5ml-5000ml tandard reference; cu tomizable according to cu tomer product, container and filling volume requirement .

Operation & Support

Day-to-day operation, maintenance, and project support.

Changeover Time

Changeover depends on bottle size, filling volume, product viscosity and line connection. For similar containers, operators mainly adjust filling settings, nozzle height, guides and conveyor position.

Cleaning Method

Clean the heated product path, pump, tank connection and filling nozzles after production. Product-contact parts should be cleaned while the material is still flowable where applicable.

Maintenance Points

Routine cleaning, nozzle inspection, pump maintenance and changeover checks should be planned according to product viscosity and production frequency.

Spare Parts List

Recommended spare parts include filling nozzles, piston or pump seals, O-rings, hoses, valves, clamps, sensors and commonly used pneumatic or electrical components.

Operators Required

Usually 1-2 operators depending on bottle feeding, product supply, downstream capping/labeling connection and factory layout.

Safety Protection

Safety configuration can include emergency stop, electrical protection, overload protection and protective covers for moving parts according to the final machine layout.

Custom Options

Can be connected with capping, sealing, labeling, coding, conveyor and collection systems according to product, bottle, output and factory layout.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right filling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
