Angle-adjustable belt capping LEKA-CP-B

Angle-Adjustable Capping for Straight & Slanted Necks

LEKA-CP-B is an in-line angle-adjustable four-wheel belt capping machine for straight-mouth and slanted-neck bottles — for example cleaners and detergents with angled necks. Belt friction wheels tighten the cap; it is not a chuck capper.

Output: 2200–3000 BPH Flat & slant angle adjust Four friction wheels Side-belt clamp 35–120 mm
Interest

Built for flat and slanted-neck screw caps

When a basic fixed-angle four-wheel station cannot follow an angled mouth, CP-B tilts the head and keeps side-belt grip while friction wheels tighten the closure.

01

Flat / slant dual angle

Screw-rod and angle adjustments set the four-wheel head for upright or slanted necks after sample review.

02

Four friction wheels

Belt-style wheel capping (not chuck). Cap Ø catalog window 30–60 mm — confirm with your caps.

03

Clamp width 35–120 mm

Side-belt bottle clamp with manual width handwheel for the catalog bottle-width range.

04

Xinjie 7″ HMI + PLC

Xinjie touchscreen and PLC for practical line adjustment; electrics may include Xingchen / Panasonic / SICK as configured.

05

Recessed FRL

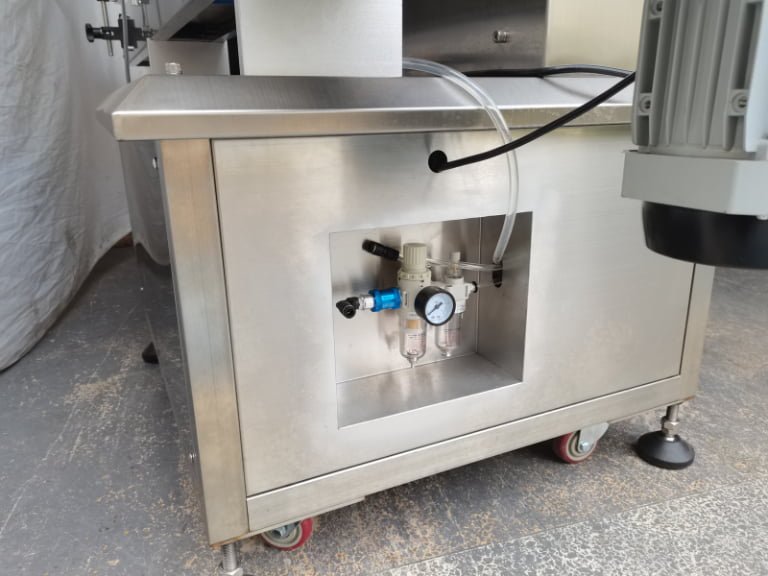

Oil-water separator / filter-regulator sits in a recessed cabinet pocket to help avoid impact damage.

06

Sample & line-fit review

Send bottle and cap samples (or drawings). We confirm angle, wheel setup and line layout before quotation — no free-trial promise.

Photos

Machine views

Hero, machine, angle head, electrical box and recessed FRL views (cleaned factory set).

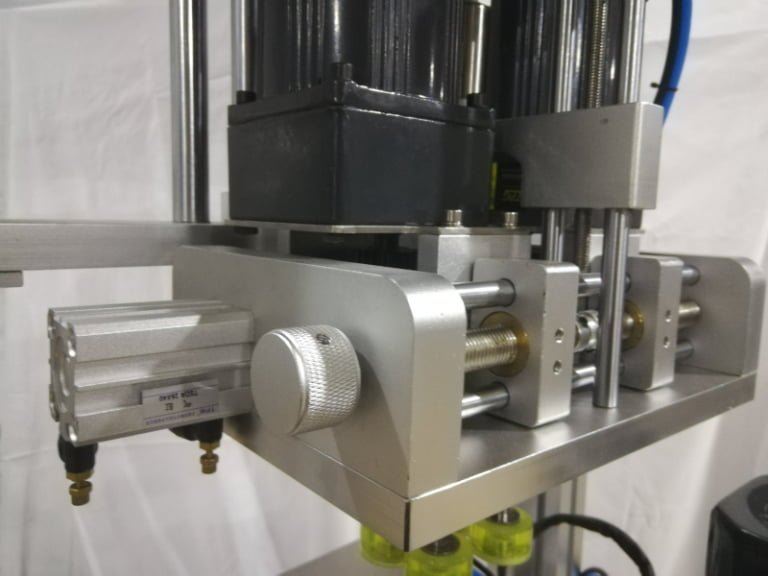

LEKA-CP-B angle-adjustable four-wheel belt capping machine on white background LEKA-CP-B angle-adjustable capping head with dual motors and four friction wheels for flat and slanted-neck bottles LEKA-CP-B electrical cabinet showing Xinjie PLC, circuit breakers and Coreken variable frequency drives Recessed oil-water separator and air filter-regulator on LEKA-CP-B capping machine base to help avoid impact damage
Desire

Specs that matter for a quote

Figures below are from the current catalog sheet. Output and final settings depend on bottle, cap and line conditions — confirm with samples.

Machine modelLEKA-CP-B
Machine typeIn-line angle-adjustable four-wheel belt capping machine
ApplicationStraight-mouth and slanted-neck screw-cap bottles (e.g. cleaner / detergent)
Speed (reference)2200–3000 BPH — depends on bottle, cap and line
Cap diameter30–60 mm
Bottle height50–300 mm
Bottle width (clamp)35–120 mm (side-belt clamp)
Capping structureAngle-adjustable four friction wheels (belt, not chuck)
Cap motorYongkun / VTV 60W
Clamp motorYongkun 3-phase (catalog)
HMIXinjie 7-inch
PLCXinjie
ElectricsXingchen / Xinjie / Panasonic / SICK (as configured)
TorqueMechanical wheel / angle setting; confirmed with samples — no fixed Nm published
Air / footprintConfirm after options, bottle/cap samples and line direction are reviewed

Straight-mouth bottles

Upright screw-cap mouths on round or flat bottles within the catalog ranges.

Slanted-neck bottles

Angled necks such as cleaner / detergent bottles — head angle set after sample review.

Line pairing

Plan filling, foil sealing, labeling and conveyor after layout review.

Sample / line-fit review — what to send

We review your parts before quotation so capping angle, wheel setup and line fit can be checked on your bottles and caps. This is a sample review, not a free production trial.

  • Product type and target sustained capacity (not only peak BPH)
  • Bottle and cap samples or drawings (mouth angle matters)
  • Whether automatic cap feeding is required
  • Factory voltage / phase / frequency and destination country
  • Layout sketch or available line length; FAT / video acceptance if needed
Optional accessories

Cap feeder and aluminum foil sealing

These modules can be planned with LEKA-CP-B after layout and sample review for cap supply and foil sealing.

LEKA vibratory cap feeder bowl with bottle caps on spiral track
Vibratory Cap Feeder

Vibratory bowl cap feeder

Orients bulk caps and feeds the track before capping. Catalog window often overlaps Ø30–60 mm — confirm pairing with LEKA-CP-B after sample review.

View Vibratory Cap Feeder
LEKA-GLF-1900 air-cooled aluminum foil sealing machine
LEKA-GLF-1900

Air-cooled aluminum foil sealing

Non-contact induction sealing for plastic and composite mouths; confirm sealing range and speed with samples.

View LEKA-GLF-1900
LEKA-GLF-4000 water-cooled aluminum foil sealing machine
LEKA-GLF-4000

Water-cooled aluminum foil sealing

Higher-duty induction sealing option when air-cooled is not enough — confirm with product and line review.

View LEKA-GLF-4000
Action

Request a sample review or project quote

Share bottle mouth angle, cap samples and line goals once — we confirm CP-B fit, then quote the configuration that matches your line.

Need to send

  • Bottle & cap samples (note mouth angle)
  • Target sustained capacity
  • Cap feeding yes/no
  • Voltage / phase / frequency + destination
  • Layout or line length; FAT / video if required
FAQ

Quick answers

What bottles is LEKA-CP-B for?

In-line angle-adjustable four-wheel belt capping for straight-mouth and slanted-neck bottles — for example cleaner and detergent bottles with angled necks. It is a belt capper, not a chuck capper.

How is the capping angle set?

The capping head tilts for flat or slanted mouths. Screw-rod and angle adjustments set wheel position; final settings are confirmed with your bottle and cap samples.

What speed and size ranges are listed?

Catalog reference: 2200–3000 BPH (depends on bottle, cap and line), cap Ø 30–60 mm, bottle height 50–300 mm, bottle width 35–120 mm with side-belt clamp.

Is torque published in Nm?

No fixed Nm is published. Mechanical wheel position and angle are set and confirmed with samples — do not treat a catalog line as a guaranteed torque value.

What controls and electrics are used?

Xinjie 7-inch HMI and Xinjie PLC. Electrics may include Xingchen / Xinjie / Panasonic / SICK components as configured. Cap motor: Yongkun / VTV 60W; clamp drive: Yongkun 3-phase (catalog).

Can it connect to a packaging line?

Yes. Cap feeder, aluminum foil sealing, labeling, coding and conveyor can be planned after layout and sample review.

Is the standard machine CE / CSA / UL certified?

The standard machine is not CE / CSA / UL certified (and is not RCM or other regional-certified by default). Destination upgrades such as CE, CSA, UL or Australia RCM / AS·NZS can be discussed on RFQ.
