LEKA Round Bottle Labeling Machine Series

Round Bottle Labeling Machine

LEKA round bottle labeling machine series is designed for automatic wrap-around labeling, round bottle positioning labeling, and high-speed star wheel labeling for cylindrical bottles used in daily chemical, beverage, pharmaceutical, and similar packaging lines. The series includes rubbing-belt labeling, pneumatic roller positioning labeling, and star wheel high-speed layouts. Model selection should be confirmed according to bottle diameter, bottle height, label width, label length, target speed, labeling position, and line layout.

← Back to Labeling Machine Center

Labeling Speed

Up to 120 bottles/min

Labeling Accuracy

±1mm

Label Width

100-200mm, model dependent

Application

Round bottle labeling

Overview

The LEKA round bottle labeling machine series covers several automatic labeling structures for cylindrical containers. LEKA-lb050C uses a rubbing-belt structure for high-speed wrap-around labeling. LEKA-lb050 uses a pneumatic roller labeling structure for round bottle positioning and full-wrap labeling. LEKA-lb060P and LEKA-lb060 use star wheel bottle feeding to improve indexing speed and production rhythm for higher-output projects.

Round Bottle Wrap-Around Labeling Designed for cylindrical bottles and containers that require circumferential label application with stable label feeding and smooth label pressing.

Positioning Labeling Options LEKA-lb050 and LEKA-lb060P can be considered when the label must be applied to a fixed bottle position rather than only full-wrap labeling.

Servo Labeling Control Servo motor drive supports closed-loop control, high-speed positioning, and stable label output during continuous production.

Optional Online Functions Printer, visual inspection, reject mechanism, soft-bottle pressing or air-filling devices can be reviewed according to production requirements.

Available Models

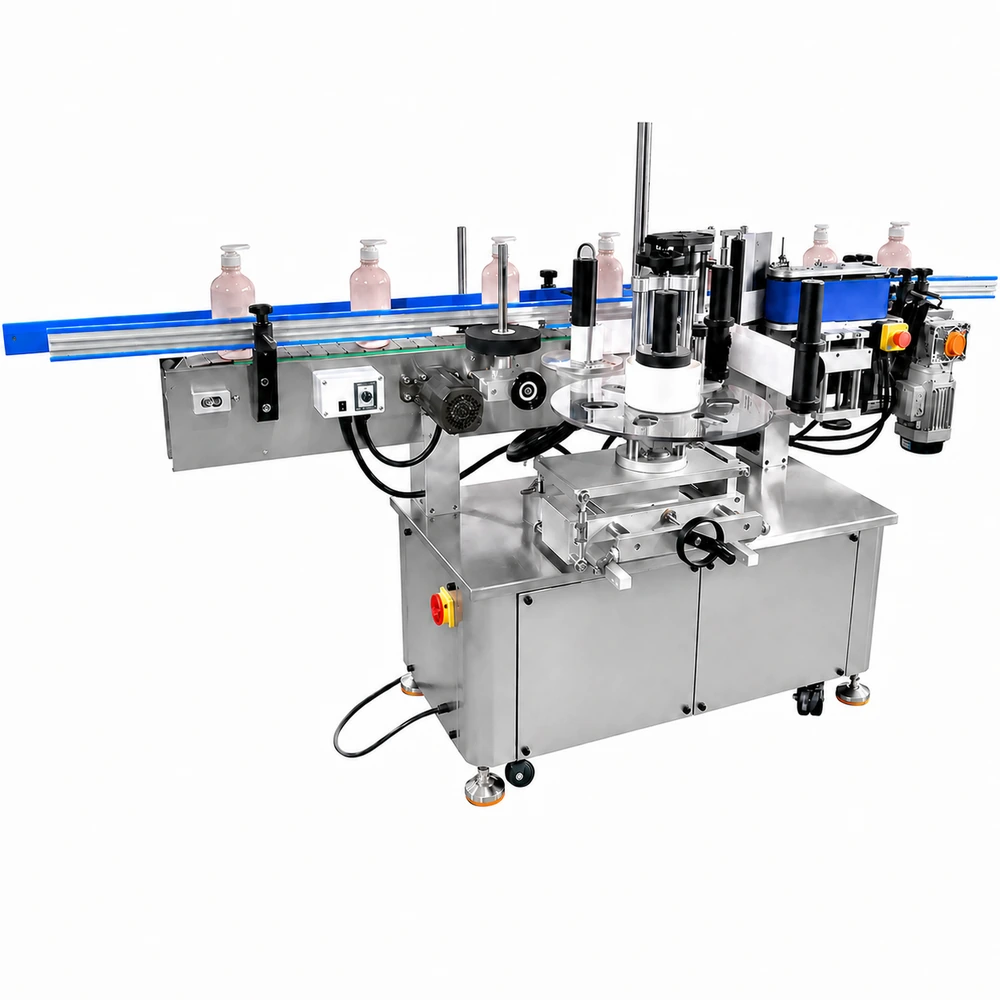

LEKA-lb050C

Automatic round bottle labeling machine with rubbing-belt label pressing structure. Suitable for high-speed wrap-around labeling of round bottles with flexible belt pressing and bubble-reduced label application.

Rubbing-belt typeMax. 6000 bottles/h±1mm100mm label width

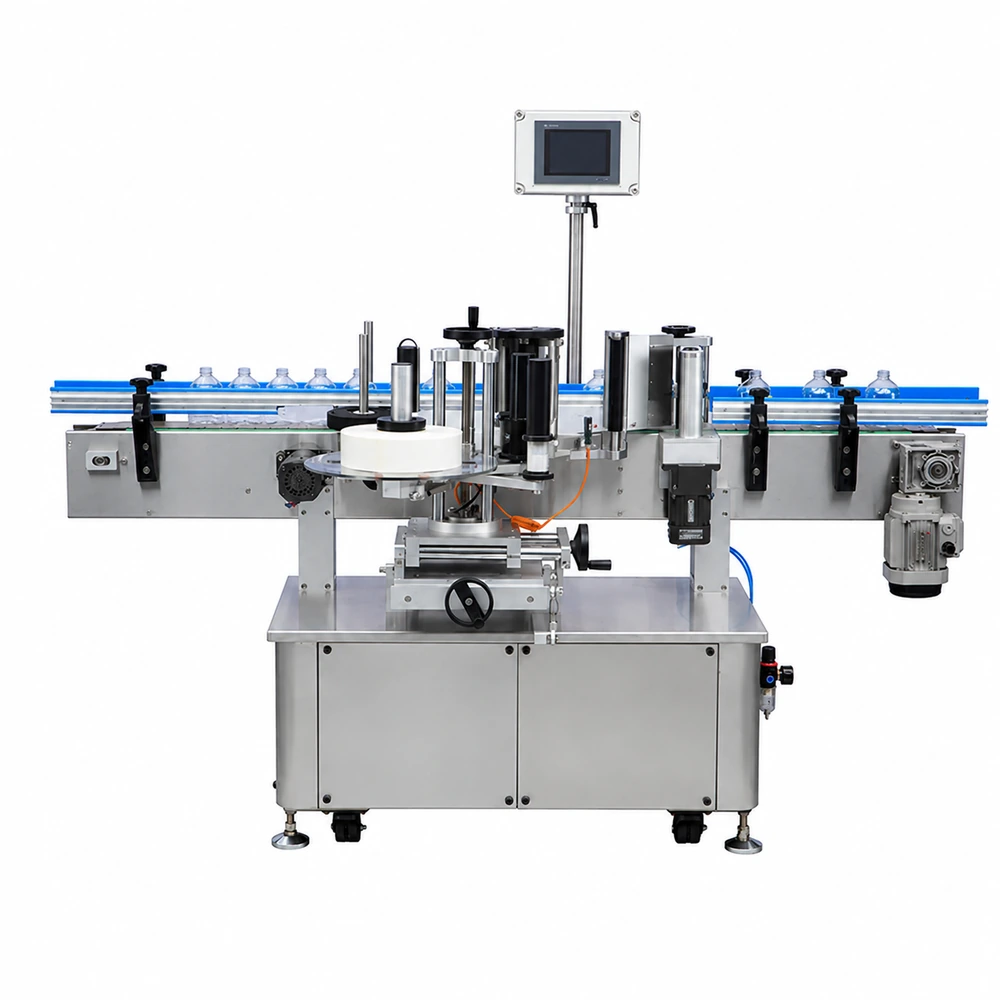

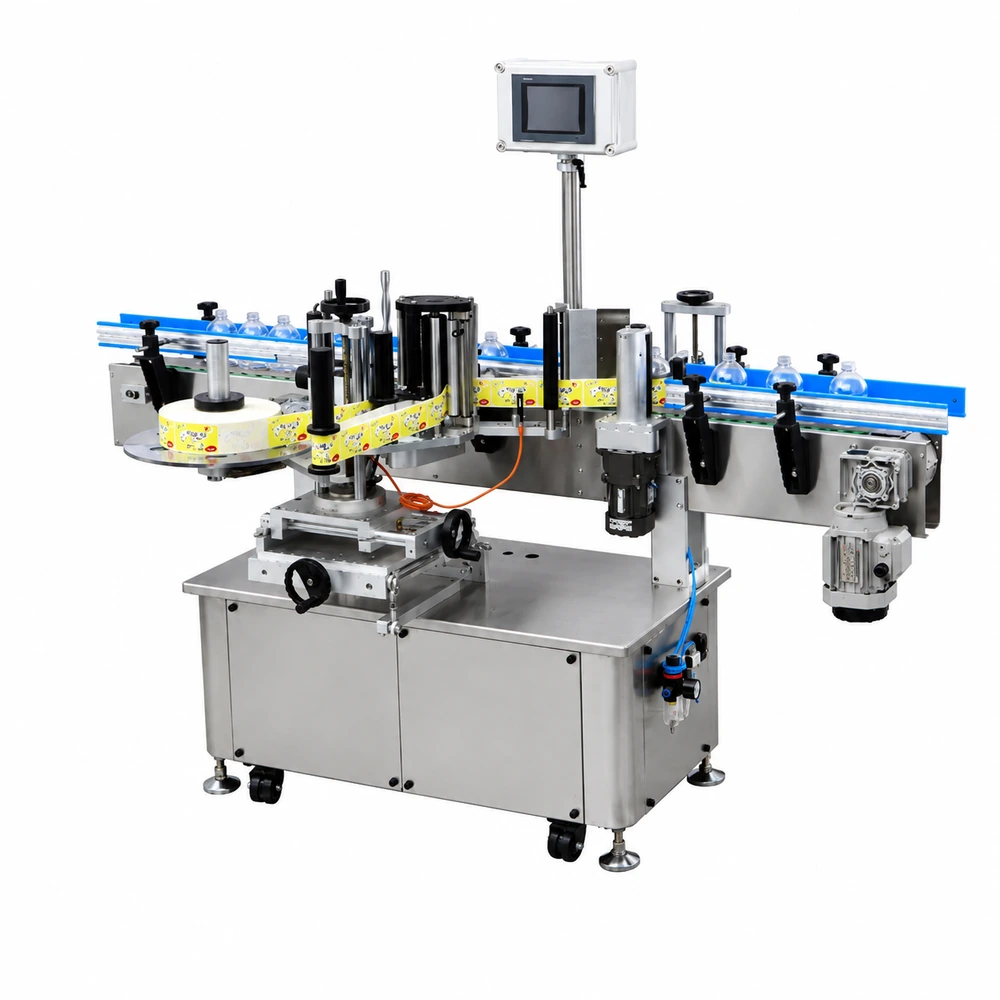

LEKA-lb050

Automatic round bottle positioning labeling machine with pneumatic roller labeling structure. Suitable for large round bottle full-wrap labeling and positioning labeling with repeatable accuracy.

Positioning typeMax. 3600 bottles/h30-150mm bottle diameter165mm label width

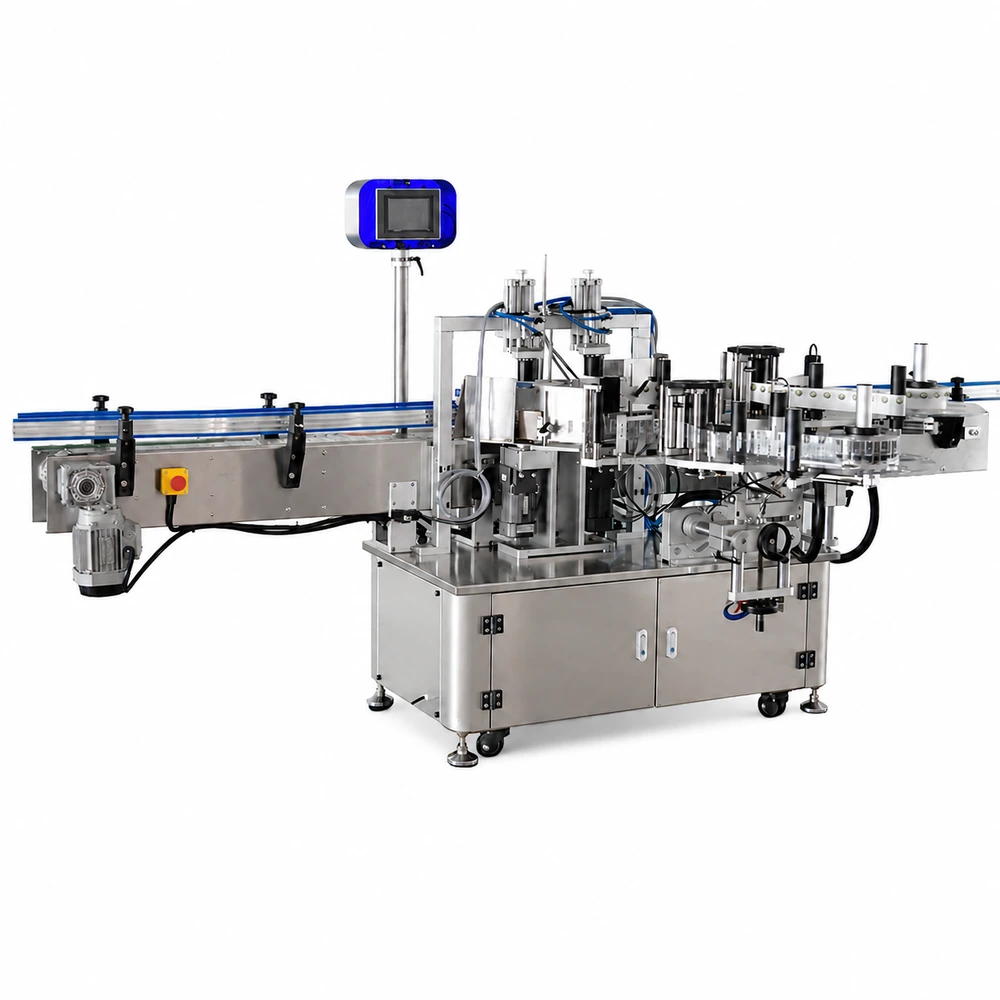

LEKA-lb060P

Star wheel high-speed positioning round bottle labeling machine with servo-driven rotary infeed and positioning detection for fixed-position labeling projects.

Star wheel positioningMax. 100 bottles/min±1mm200mm label width

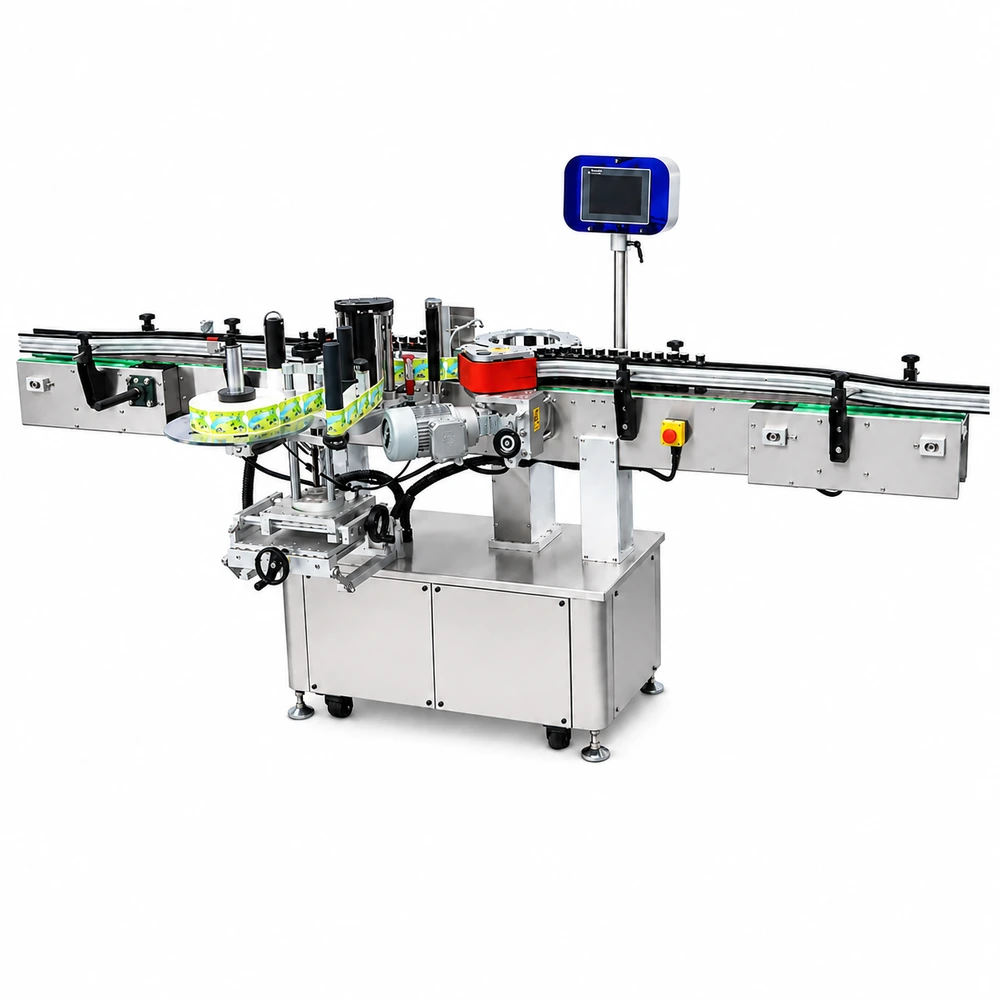

LEKA-lb060

Star wheel high-speed round bottle labeling machine for fast bottle separation, indexing, label output, and belt pressing during continuous round bottle labeling.

Star wheel typeMax. 120 bottles/min±1mm200mm label width

Model Comparison

Parameter	LEKA-lb050C	LEKA-lb050	LEKA-lb060P	LEKA-lb060	Notes
Machine Name	Automatic Round Bottle Labeling Machine, Rubbing-Belt Type	Automatic Round Bottle Positioning Labeling Machine	Star Wheel High-Speed Positioning Round Bottle Labeling Machine	Star Wheel High-Speed Round Bottle Labeling Machine	Final model should be selected according to bottle shape, label position, output target, and production line layout.
Labeling Speed	Max. 6000 bottles/h	Max. 3600 bottles/h	Max. 100 bottles/min	Max. 120 bottles/min	Actual speed depends on bottle type, label length, label position, feeding stability, and line coordination.
Labeling Accuracy	±1mm	±1mm	±1mm	±1mm	Accuracy should be confirmed with bottle samples and label material.
Label Max Width	100mm, customization required above this value	165mm, customization required above this value	200mm	200mm	Label width affects label head configuration and machine layout.
Label Max Length	350mm	500mm	500mm	500mm	Longer labels may reduce speed and require sample verification.
Bottle Diameter	Project-specific confirmation required	30-150mm, customization required above this value	Project-specific confirmation required	Project-specific confirmation required	Bottle diameter should be checked before quotation, especially for large bottles or tapered bottles.
Bottle Height	Project-specific confirmation required	30-350mm, customization required above this value	Project-specific confirmation required	Project-specific confirmation required	Bottle height affects guide rail, pressing structure, and label head adjustment.
Label Roll Inner Diameter	φ76mm	φ76mm	φ76mm	φ76mm	Standard label roll core size.
Label Roll Outer Diameter	Φ380mm	Φ380mm	Φ380mm	Φ380mm	Confirm roll size when using special label materials.
Machine Size	L2000 × W1200 × H1650 mm	L2000 × W1200 × H1650 mm	L3048 × W1350 × H1700 mm	L3048 × W1250 × H1500 mm	Shown as L × W × H. Final layout may change after customization.
Power Supply	220V / 50Hz / 1500W	220V / 50Hz / 1500W	220V / 50Hz / 2000W	220V / 50Hz / 1500W	Other voltage standards should be confirmed before production.
Main Structure	Rubbing-belt label pressing	Pneumatic roller labeling	Servo-driven star wheel with positioning detection	Star wheel feeding with belt pressing	Structure selection depends on label position, speed, and bottle handling requirements.

Key Component and Function Configuration

Component / Function	Configuration	Notes
PLC Control System	Siemens PLC reference configuration	Used for stable machine control, operation logic, and abnormal condition display through the HMI.
Labeling Servo Motor	Panasonic servo motor reference configuration	Supports closed-loop label feeding control, high-speed positioning, and stable label output.
Detection Sensors	German and Japanese sensor options	Used for bottle detection, label detection, positioning detection, and labeling accuracy control.
Label Feeding System	Double pressure roller label feeding with segmented clutch tension control	Designed to maintain label tension and reduce label breakage caused by backing paper die-cut damage.
Label Head Adjustment	Eight-dimensional spatial adjustment	Allows flexible adjustment for different bottle sizes, label positions, and production requirements.
HMI Operation	Independent human-machine interface control	Operation parameters can be saved and recalled. Fault prompts guide troubleshooting.
Machine Frame and Parts	Stainless steel and aluminum alloy structure where applicable	Supports stable running, lower noise, and production environments that require clean machine construction.
Optional Printer	Date, batch number, or shelf-life online printing	Can be reviewed for production date or expiry date printing during labeling.
Optional Vision Inspection	Inspection and reject mechanism	Can be added for defective product detection and removal according to quality-control requirements.
Optional Soft-Bottle Device	Pressing or air-filling mechanism	Used for softer bottle bodies where additional support is needed during labeling.
Optional Tapered Bottle Adjustment	Adjustable roller and pressure roller angle	Can be reviewed for tapered round bottles when standard round-bottle labeling is not sufficient.

FAQ

Which round bottle labeling machine should I choose for high-speed production?

For high-speed projects, LEKA-lb060 can reach up to 120 bottles/min and LEKA-lb060P can reach up to 100 bottles/min. The final speed depends on bottle shape, label length, positioning requirements, and line stability.

What is the difference between LEKA-lb050C and LEKA-lb050?

LEKA-lb050C uses a rubbing-belt structure and is suitable for high-speed wrap-around labeling. LEKA-lb050 uses a pneumatic roller labeling structure and is more suitable when round bottle positioning labeling or large round bottle full-wrap labeling is required.

Can these machines apply labels to a fixed position on round bottles?

Yes. LEKA-lb050 and LEKA-lb060P can be evaluated for positioning labeling applications. Bottle samples, label artwork, and positioning marks should be provided for confirmation.

Can the machine label soft bottles?

Soft bottles may need an optional pressing or air-filling device to improve bottle stability during labeling. Please provide bottle material, wall thickness, filled or empty bottle condition, and sample photos.

Can LEKA add online printing to the labeling machine?

Yes. An optional printer can be added for online printing of production date, shelf life, batch number, or similar coding requirements.

What information is needed before quotation?

Please provide bottle photos, bottle diameter, bottle height, label width, label length, label roll size, required output, labeling position, voltage standard, and whether the machine needs to connect with filling, capping, coding, inspection, or packing equipment.
