Rotary Labeling Machine Series

LEKA-LBGDP Automatic High-Speed Rotary Positioning Labeling Machine Series

The LEKA-LBGDP series is designed for high-speed automatic positioning labeling on round bottles, square bottles, semi-round bottles and irregular containers. The series supports one-label, two-label or three-label applications and can be connected with production lines for empty or filled bottle labeling.

Back to Labeling Machines Request Quote

Models

LEKA-LBGDP12 / 18E / 24 / 36

Speed Range

20,000–48,000 BPH

Labeling Accuracy

±1 mm

Application

Round / square / shaped bottles

Product Overview

This rotary labeling machine series uses electronic positioning, servo motor drive and visual system or sensor detection for positioning. It is suitable for plastic bottles, glass bottles, PVC containers, PET containers, tin cans and similar packaging used in food, beverage, cleaning products, pharmaceutical and liquor production.

The machine can work as part of a complete packaging line. It supports automatic fast labeling before or after filling, helping reduce manual labor and improve product appearance consistency.

Recommended Use

High-speed productionSuitable for factories requiring continuous rotary labeling output from 20,000 to Max. 48,000 bottles per hour.

Positioning labelingSupports label placement according to bottle mark, bottle orientation or container position.

Multiple container shapesDesigned for round bottles, square bottles, semi-round bottles and selected irregular bottles.

Production line connectionCan be connected with upstream and downstream packaging equipment.

Main Performance Features

Multi-function labeling optionsDifferent models can apply one, two or three labels on round, square, semi-round or shaped bottles.

Electronic positioningLEKA-LBGDP18E uses electronic positioning, servo bottle rotation and vision or sensor detection.

CNC-machined componentsHigh-precision fitting supports stable operation, low noise and consistent labeling accuracy.

Closed component designClosed structures help prevent dust from entering key operating parts.

Waterproof protectionWaterproof design helps keep bearings running in a dry working environment.

Synchronized label feedingThe label station and main machine run linearly in sync with bottle infeed speed.

Servo motor driveClosed-loop servo control with high-precision subdivision and absolute encoder supports high-speed positioning.

Double pressure roller label headHelps maintain label tension and reduce label breakage caused by backing paper die-cut damage.

Eight-dimensional label head adjustmentFlexible adjustment allows accurate labeling setup for different products within a short time.

Independent HMI controlOperation parameters can be stored and recalled. Abnormal conditions are displayed on the HMI for troubleshooting.

PLC control systemSupports orderly and adjustable machine movement and speed with stable performance.

Non-standard customizationEngineering design support is available for special production requirements.

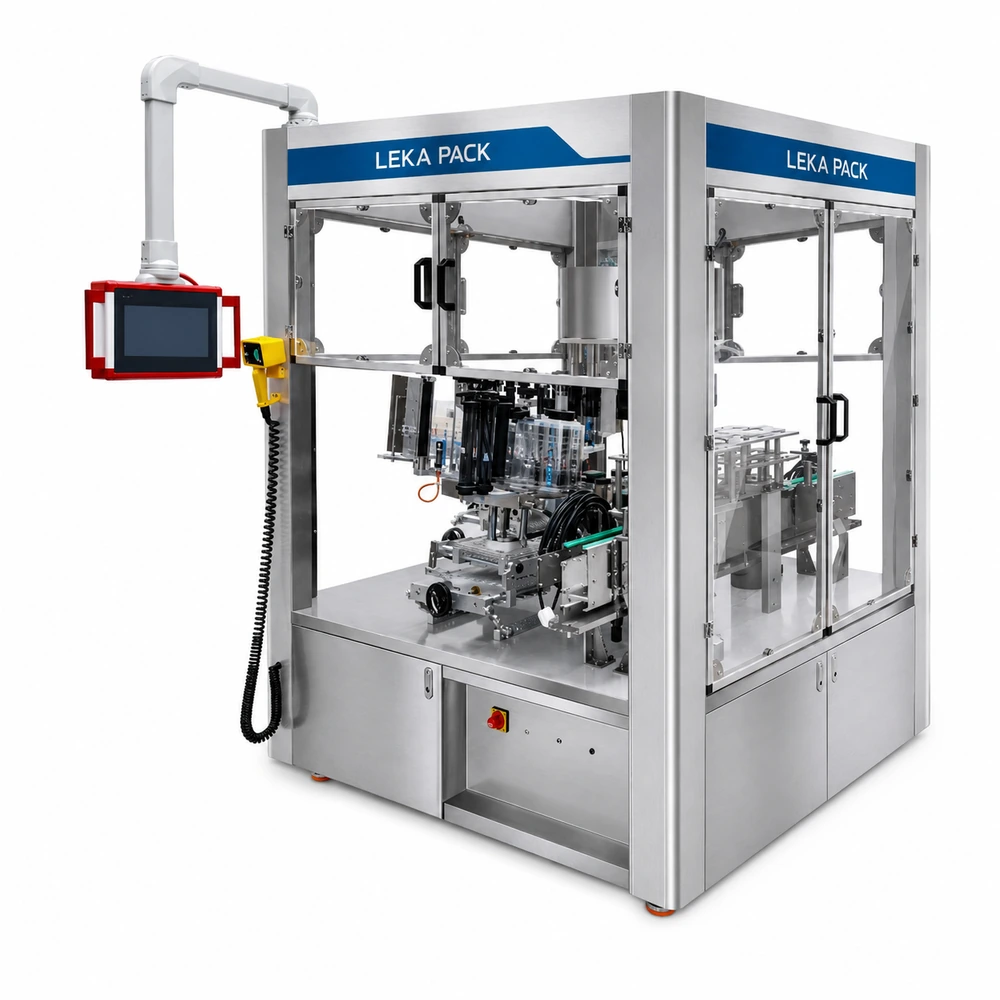

LEKA-LBGDP12 rotary positioning labeling machine

LEKA-LBGDP12

Automatic high-speed positioning rotary labeling machine for standard rotary labeling applications.

20,000 BPH±1 mm3.5 KW

LEKA-LBGDP18E servo vision positioning rotary labeling machine

LEKA-LBGDP18E

Servo vision positioning rotary labeling machine using visual system or sensor detection for bottle mark positioning.

24,000 BPHVision / sensor15 KW

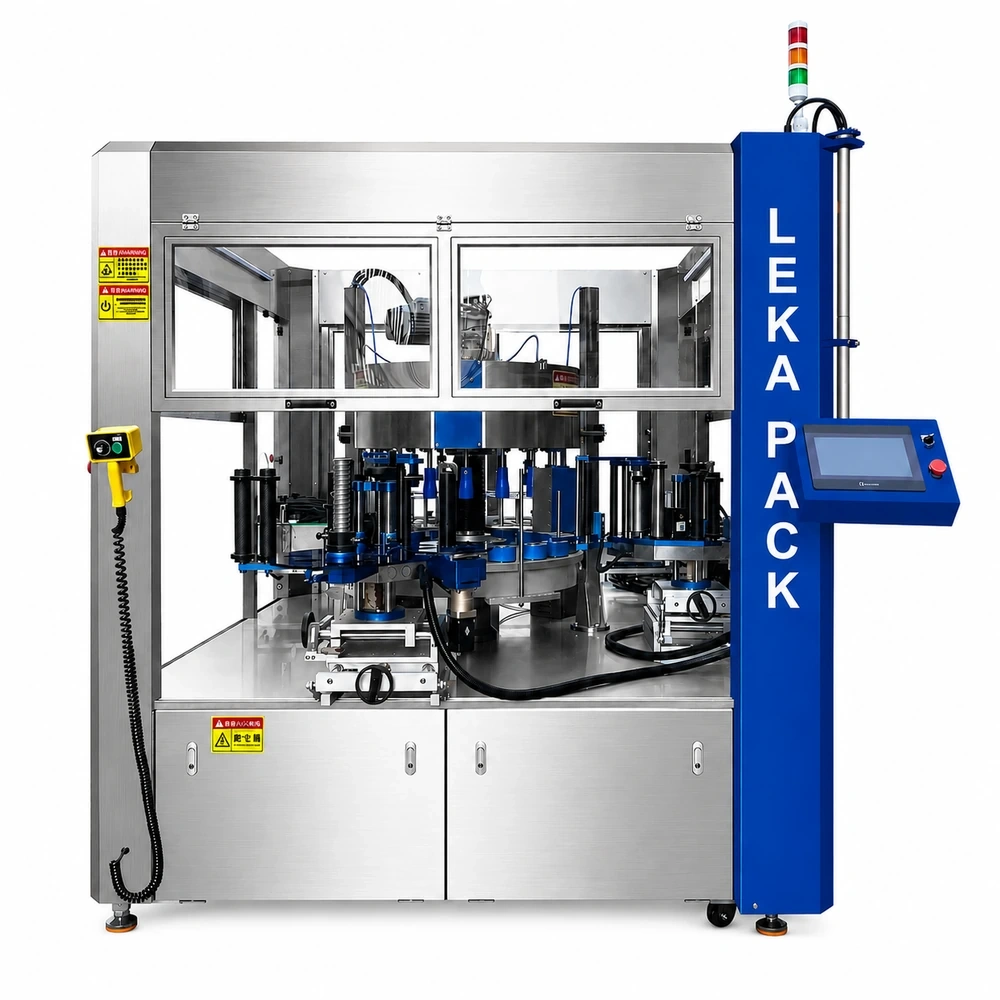

LEKA-LBGDP24 rotary positioning labeling machine

LEKA-LBGDP24

New automatic high-speed positioning rotary labeling machine for higher-speed production lines.

36,000 BPH±1 mm8 KW

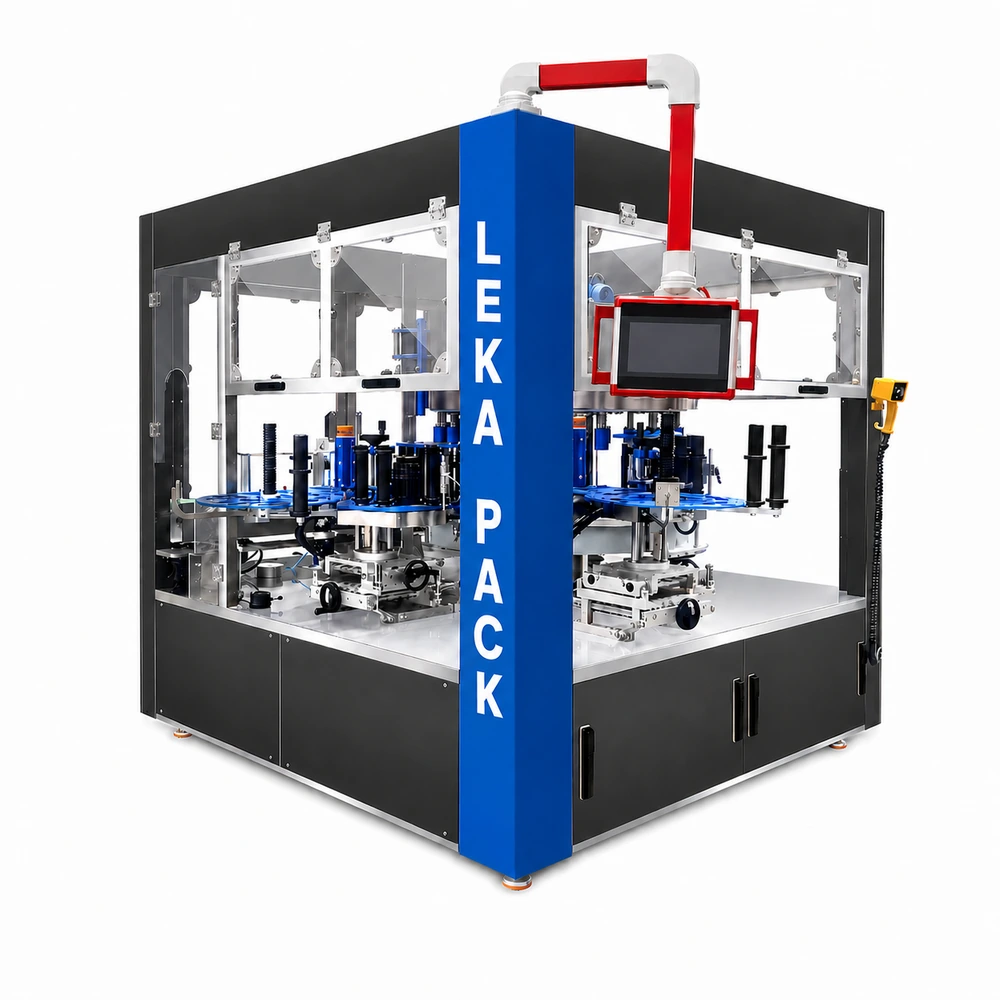

LEKA-LBGDP36 rotary positioning labeling machine

LEKA-LBGDP36

High-speed rotary positioning labeling machine with high-speed label station and servo-driven label movement.

Max. 48,000 BPH195 mm label width11 KW

Technical Parameters

Parameter	LEKA-LBGDP12	LEKA-LBGDP18E	LEKA-LBGDP24	LEKA-LBGDP36
Producing speed	20,000 bottles/hour	24,000 bottles/hour	36,000 bottles/hour	Max. 48,000 bottles/hour
Labeling accuracy	±1 mm	±1 mm	±1 mm	±1 mm
Label max width	150 mm, customizable if larger	150 mm, customizable if larger	150 mm, customizable if larger	195 mm
Label max length	250 mm	250 mm	250 mm	250 mm
Bottle diameter range	Not specified	30–80 mm, customizable if larger	Not specified	Not specified
Bottle height range	Not specified	120–320 mm, customizable if outside range	Not specified	Not specified
Label inner diameter	φ76 mm	φ76 mm	φ76 mm	φ76 mm
Label outer diameter	Φ400 mm	Φ280 mm	Φ400 mm	Φ400 mm
Outline size	L1750 × W1750 × H2200 mm	L1750 × W1750 × H2200 mm	L2000 × W2100 × H2200 mm	L2800 × W2000 × H2150 mm
Power supply	220V 50Hz 3.5KW	380V 50Hz 15KW	380V 50Hz 8KW	380V 50Hz 11KW
Notes	Actual speed depends on bottle shape and label length. Parameters can be customized according to production requirements.

Parameter	LEKA-LBGDP12	LEKA-LBGDP18E	LEKA-LBGDP24	LEKA-LBGDP36
Producing speed	20,000 bottles/hour	24,000 bottles/hour	36,000 bottles/hour	Max. 48,000 bottles/hour
Labeling accuracy	±1 mm	±1 mm	±1 mm	±1 mm
Label max width	150 mm	150 mm	150 mm	195 mm
Label max length	250 mm	250 mm	250 mm	250 mm
Label inner diameter	φ76 mm	φ76 mm	φ76 mm	φ76 mm
Label outer diameter	Φ400 mm	Φ280 mm	Φ400 mm	Φ400 mm
Outline size	L1750 × W1750 × H2200 mm	L1750 × W1750 × H2200 mm	L2000 × W2100 × H2200 mm	L2800 × W2000 × H2150 mm
Power supply	220V 50Hz 3.5KW	380V 50Hz 15KW	380V 50Hz 8KW	380V 50Hz 11KW
