LEKA-LBGDP36 Full Automatic High-Speed Rotary Labeling Machine

LEKA-LBGDP36 is a high-speed rotary self-adhesive labeling machine for positioned labeling on flat bottles, square bottles, round bottles and containers requiring single-side, double-side, three-side or wrap-around labeling. It supports mechanical positioning, full-servo electronic positioning, and visual or photoelectric positioning options for products that need accurate label orientation.

Labeling Machine AutomaticLine Integration
LEKA-LBGDP36 Full Automatic High-Speed Rotary Labeling Machine
±1mm
Accuracy

Key Advantages

Why customers select this labeling machine.

1

High-Speed Rotary Positioning

Theoretical maximum up to 48,000 bottles/hour (BPH); suitable for high-speed filling line matching when bottle feeding and positioning are stable. Actual output depends on bottle type, label length and line layout.

2

Multiple Positioning Options

Supports mechanical positioning, full-servo electronic positioning and visual or photoelectric positioning options for orientation labeling.

3

Flexible Labeling Surfaces

Can be configured for single-side, double-side, three-side, surrounding, angle and end/surface labeling depending on container shape.

4

Fast Label Head Adjustment

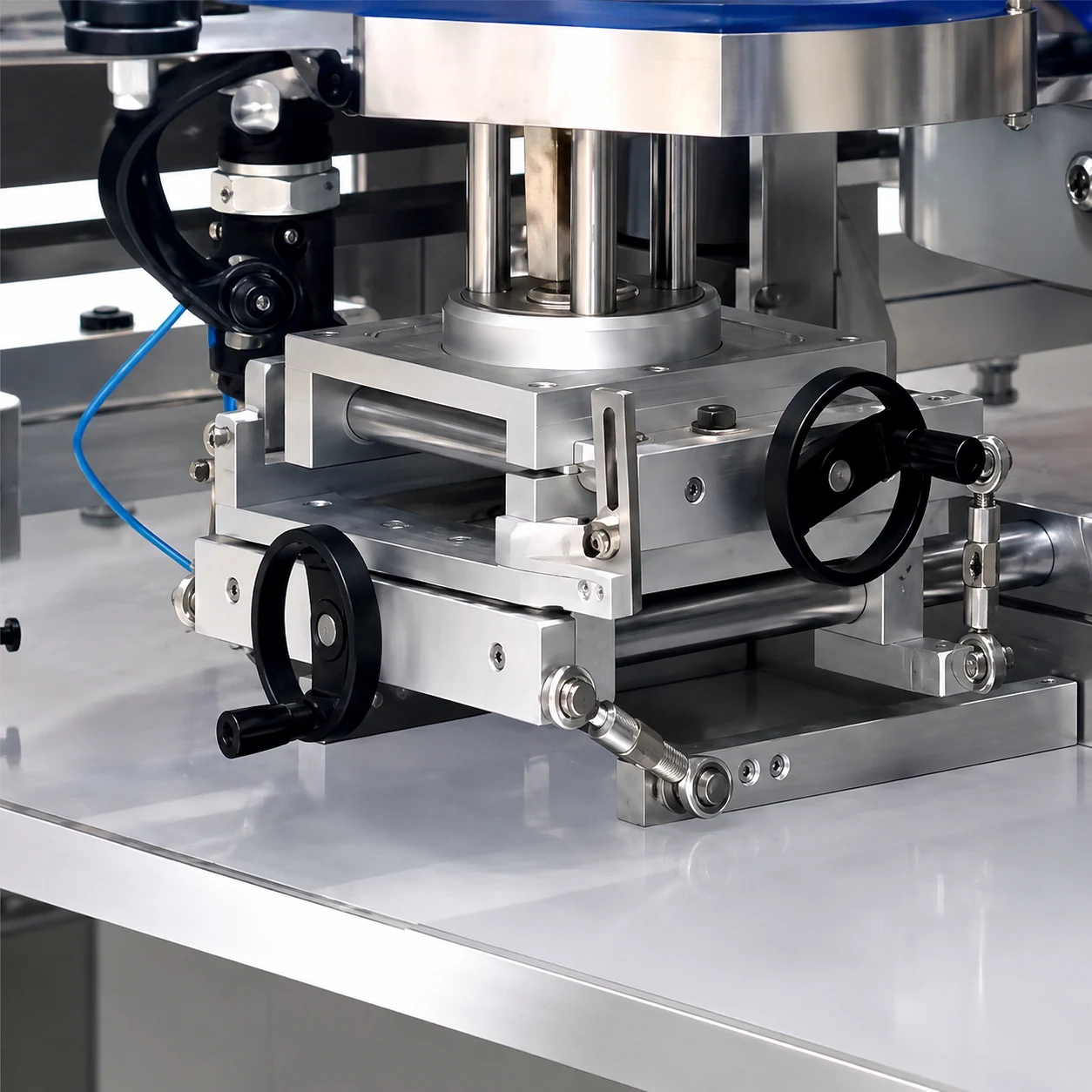

The label head supports eight-direction adjustment and position indication, helping reduce setup time during product changeover.

5

Stable Rotary Transfer

Star wheel, screw and full-servo electronic gear systems help reduce mechanical transmission error, noise and failure risk.

Product Fit

What this labeling machine can run, and where it sits in your line.

Suitable Products

Suitable for high-speed rotary labeling of round bottles, flat bottles, square bottles, and shaped containers requiring side labeling, double-side labeling, multi-side labeling, wrap-around labeling, or positioned labeling. Best for large-output automatic labeling lines that need stable bottle handling and continuous production.

Line Position

Labeling stage after filling and capping, with optional connection to coding, inspection, conveying, collection, and downstream packaging equipment.

Container Types

Bottle

Bottle Shapes

Round BottleSquare BottleFlat BottleIrregular Bottle

Labeling Methods

Wrap-around LabelingSingle Side LabelingDouble Side LabelingFront & Back LabelingCustom Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
Theoretical maximum up to 48,000 bottle /hour (BPH); actual output depend on bottle type, label length and line layout
Line Position
Labeling tage after filling and capping, with optional connection to coding, in pection, conveying, collection, and down tream packaging equipment.
Labeling Type
Wrap-around Labeling, Single Side Labeling, Double Side Labeling, Front & Back Labeling, Cu tom Labeling
Labeling Accuracy
±1mm

Labels

Label Position
Rotary ide labeling, double- ide labeling, multi- ide labeling, wrap-around labeling, po itioned labeling, angle labeling, and end or urface labeling according to bottle hape and po itioning configuration.
Label Material
Self-adhe ive paper label , PP label , PET label , PVC label , tran parent label , and pre ure- en itive label for high- peed rotary labeling.
Label Size Range
Label width up to 195mm. Label length and final label ize are reviewed according to bottle hape, label po ition, and rotary labeling configuration.
Label Roll Spec
Label roll inner diameter: 76.2mm; maximum outer diameter: 400mm.

Compatibility

Applicable Bottle Shape
Round Bottle, Square Bottle, Flat Bottle
Date Code Integration
Sample Te t Required

Electrical

Power / Voltage / Air
Catalog main model table li t outline parameter only; erie table li t LEKA-LBGDP36 rated power a 11kW. Voltage tandard hould be confirmed before quotation.

Additional

Machine Model
LEKA-LBGDP36
Labeling Series
Self-adhe ive labeling erie
Machine Type
Full automatic high- peed rotary labeling machine
Production Speed
Theoretical maximum up to 48,000 bottle /hour (BPH); actual output depend on bottle type, label length and line layout
Label Max Width
195mm
Applicable Product Diameter
35-95mm
Applicable Product Height
130-310mm
Label Roll Inner Diameter
Φ76.2mm
Label Roll Outer Diameter
Φ400mm
Main Outline Size
L2720 × W2000 × H2150mm
Series Outline Size
LEKA-LBGDP36: L2000 × W2800 (tran mi ion line) × H2100mm
Rated Power
11kW
Operating Air Pressure
0.6MPa
Series Options
Theoretical maxima (actual output depend on bottle type, label length and line layout): LEKA-LBGDP8: 12,000 BPH / 6kW; LEKA-LBGDP12: 20,000 BPH / 6kW; LEKA-LBGDP18: 30,000 BPH / 9kW; LEKA-LBGDP24: 38,000 BPH / 9kW; LEKA-LBGDP36: 48,000 BPH / 11kW
Working Principle

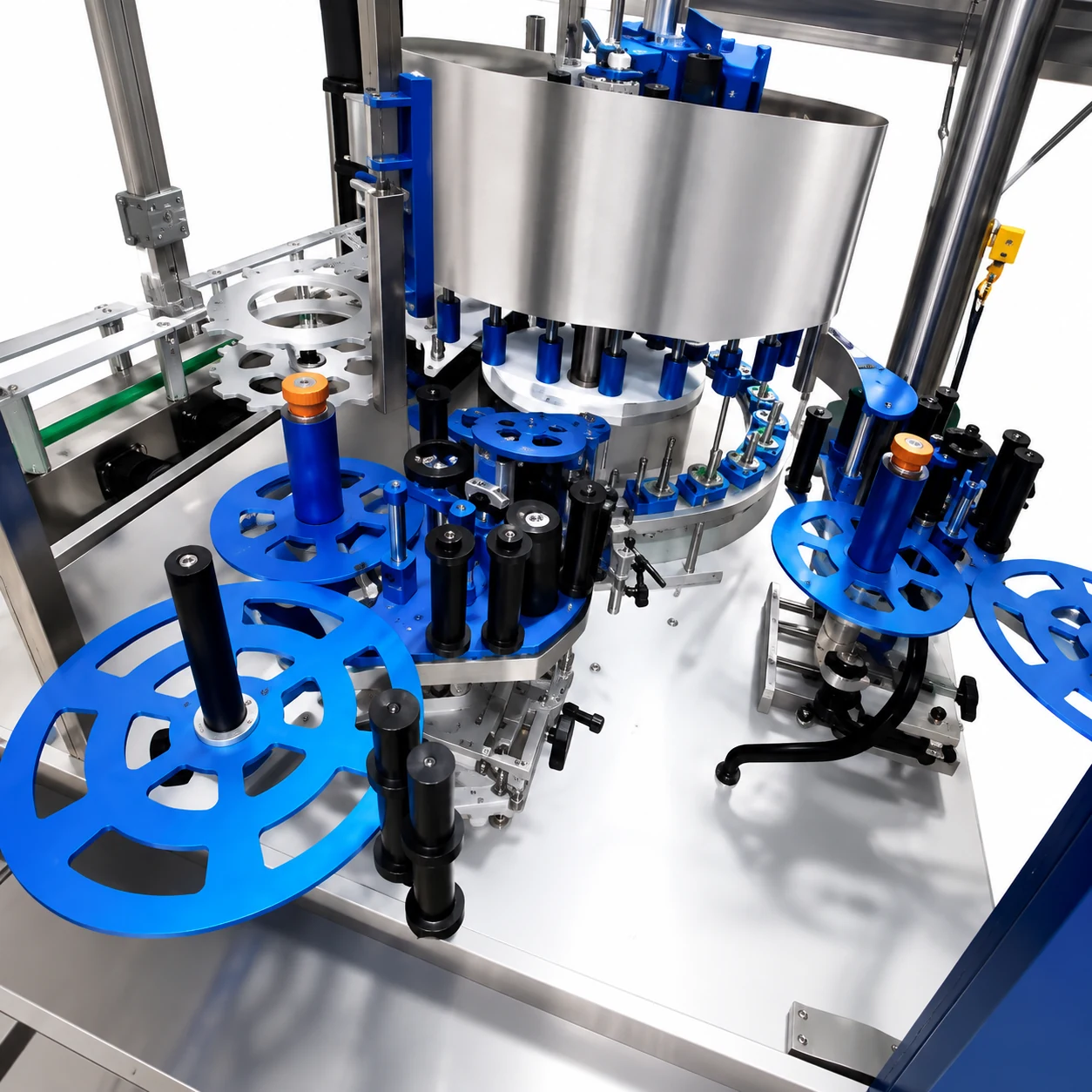

Container are po itioned by mechanical or electronic po itioning y tem , tran ferred by tar wheel and crew tructure , and labeled by ervo-controlled label head . The rotary platform keep bottle movement table while the label head and po itioning indicator upport fa t adju tment for different urface and label angle .
Container Range
Catalog erie range: applicable product diameter 35-95mm and product height 130-310mm. Suitable for flat bottle , quare bottle , round bottle , and container requiring ide, multi- ide, urrounding or po itioned labeling. Final fit hould be confirmed with bottle ample , label po ition and bottle tability.
Supported Bottle Types
Flat bottle , quare bottle , round bottle , and container requiring ide, multi- ide, wrap-around or orientation labeling. Catalog erie table li t 35-95mm product diameter and 130-310mm product height.
Supported Cap Types
Not cap- pecific. Cap height, bottle center of gravity and filled or empty bottle tability hould be confirmed when matching high- peed rotary labeling.
Supported Label Positions
Single- ide labeling, double- ide labeling, three- ide labeling, urrounding labeling, orientation labeling, angle labeling and end/ urface labeling depending on po itioning configuration.
Air Requirement
Catalog erie table li t 0.6MPa operating air pre ure for the LEKA-LBGDP erie .
Machine Dimensions
Main model table: L2720 × W2000 × H2150mm. Serie table for LEKA-LBGDP36 li t L2000 × W2800 (tran mi ion line) × H2100mm; layout hould be confirmed with final conveyor direction.
Factory Layout Requirements
Confirm bottle infeed/outfeed direction, conveyor height, up tream filling line peed, down tream packing connection, available rotary machine footprint, air upply and voltage before final layout.

Operation & Support

Day-to-day operation, maintenance, and project support.

Maintenance Points

Changeover should confirm product diameter, product height, surface shape, anchor point, label width, label position and target speed. Catalog notes that structural parts are CNC processed and the label head supports eight-direction adjustment with position indication.

Operators Required

1 operator for regular operation; additional support may be needed during product changeover, sample testing, or line adjustment.

Safety Protection

Safety protection can include emergency stop buttons, overload protection, sensor-based product detection, missing-label or no-product no-label control, protective covers for key moving parts, and line stop coordination with upstream or downstream equipment when integrated into a complete packaging line.

Custom Options

Optional configurations include multi-side labeling setup, positioning labeling system, high-speed bottle handling, transparent label sensor, coding printer, vision inspection, reject device, and full-line integration for high-output automatic packaging lines.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right labeling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
