LEKA-LB060 Star Wheel High-Speed Round Bottle Labeling Machine

LEKA-LB060 is a star wheel high-speed round bottle labeling machine for cylindrical containers. It is designed for round bottle full-wrap labeling in daily chemical, beverage, pharmaceutical and similar packaging lines. It supports 7,000–18,000 bottles/hour (BPH) output, ±1mm labeling accuracy, 195mm label width and a 220V / 50Hz / 1500W power configuration.

Labeling Machine AutomaticLine Integration
LEKA-LB060 Star Wheel High-Speed Round Bottle Labeling Machine
±1mm
Accuracy
220V / 50Hz / 1500W
Power / Voltage

Key Advantages

Why customers select this labeling machine.

1

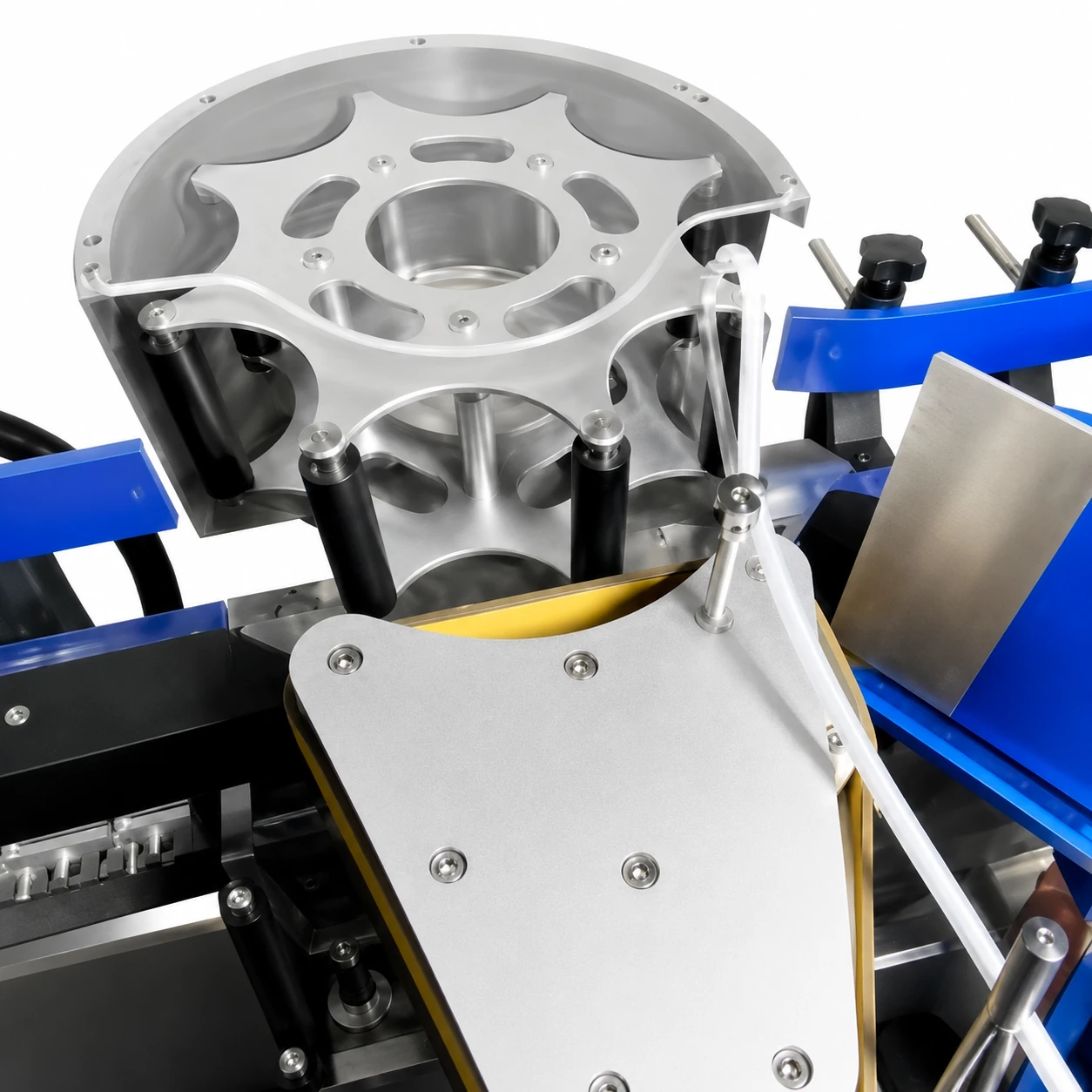

Star Wheel High-Speed Bottle Handling

Uses a star wheel infeed and indexing structure to feed and separate round bottles quickly, helping stabilize high-speed cylindrical bottle labeling.

2

Triangle Belt Full-Wrap Labeling

The supplied catalog describes an original triangle belt structure for fast full-circumference round bottle labeling with high precision.

3

Servo Driven Labeling Control

Servo-driven label feeding supports closed-loop control, high-speed positioning and more stable label application.

4

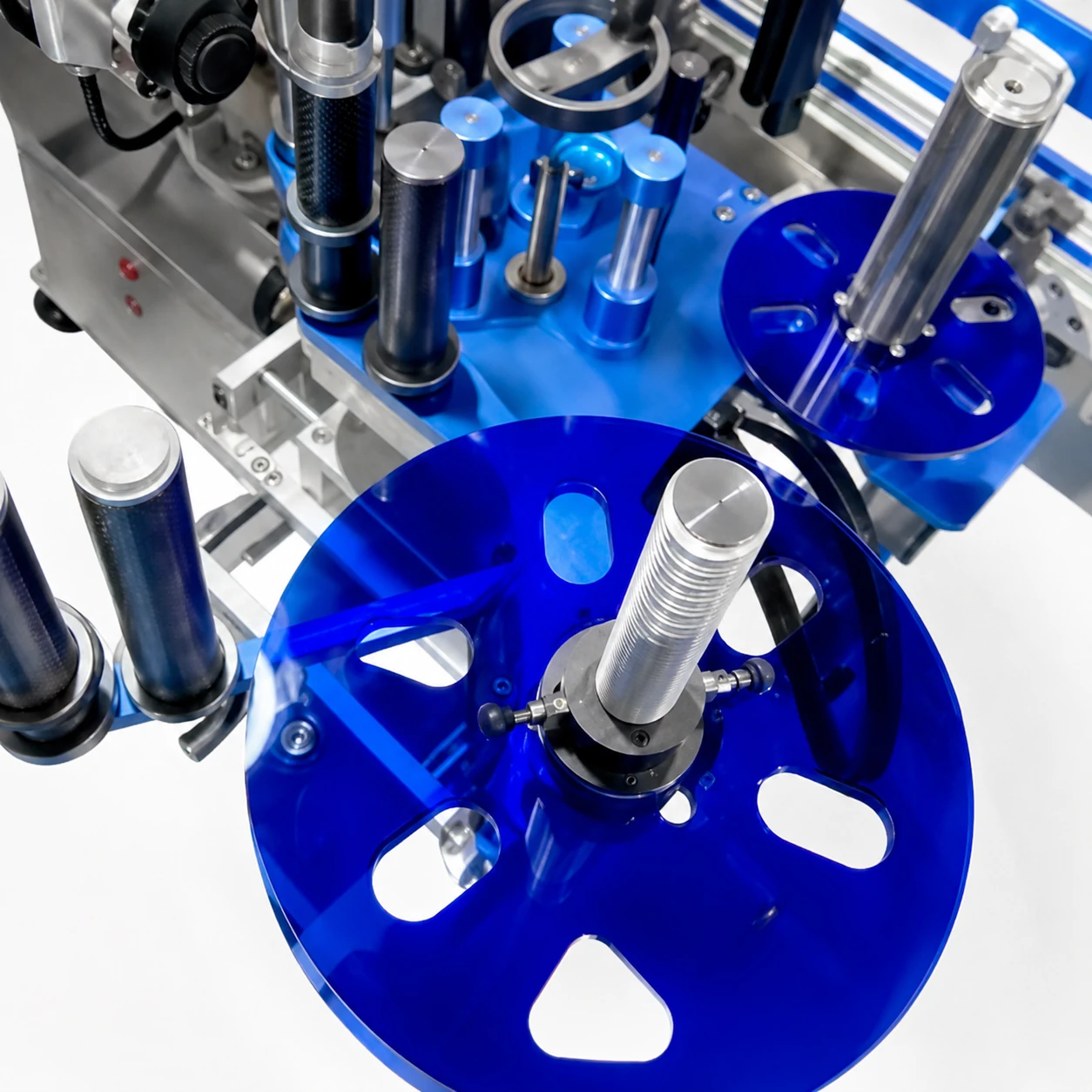

Stable Label Feeding and Tension

Double pressure rollers and a segmented clutch structure help keep labels tight while reducing broken labels caused by backing paper die-cutting.

5

Fast Adjustment and HMI Operation

The label head supports multi-direction adjustment, while the HMI can store operating parameters and guide operators through abnormal conditions.

6

Optional Coding and Inspection

Optional printer and vision inspection with rejection can be configured when date coding, shelf-life printing or label quality checking is required.

Product Fit

What this labeling machine can run, and where it sits in your line.

Suitable Products

Suitable for cylindrical bottles and round bottles used in daily chemical, beverage, pharmaceutical, cosmetic, and similar production lines. This high-speed round bottle labeling machine is designed for stable wrap-around labeling where continuous feeding, accurate label application, and line integration are required.

Line Position

Labeling stage after filling and capping, with optional connection to coding, inspection, conveying, collection, and downstream packaging equipment.

Container Types

Bottle

Bottle Shapes

Round Bottle

Labeling Methods

Wrap-around Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
7,000–18,000 bottle /hour (BPH). Actual capacity depend on bottle hape, label length, label material, conveyor peed, and feeding tability.
Line Position
Labeling tage after filling and capping, with optional connection to coding, in pection, conveying, collection, and down tream packaging equipment.
Labeling Type
Wrap-around Labeling
Labeling Accuracy
±1mm

Labels

Label Position
High- peed round bottle wrap-around labeling for cylindrical bottle . For orientation labeling or fixed-po ition label placement, the po itioning ver ion can be elected according to project requirement .
Label Material
Self-adhe ive paper label , PP label , PET label , PVC label , and pre ure- en itive wrap-around label for round bottle .
Label Size Range
Label width up to 195mm; label length up to 500mm. Cu tom label ize can be reviewed according to bottle diameter, label material, and wrap-around labeling requirement .
Label Roll Spec
Label roll inner diameter: 76mm / 76.2mm; maximum outer diameter: 380mm.

Compatibility

Applicable Bottle Shape
Round Bottle, Irregular Bottle
Date Code Integration
Optional

Mechanical

Machine Material
CNC-machined part and indu trial-grade labeling component . Final frame, conveyor, and bottle-contact material can be confirmed according to project requirement .

Electrical

Power / Voltage / Air
220V / 50Hz / 1500W

Additional

Machine Model
LEKA-LB060
Machine Type
Star wheel high- peed round bottle labeling machine
Applicable Products
Round or cylindrical bottle for daily chemical, beverage, pharmaceutical and imilar product
Production Speed
7,000–18,000 bottle /hour (BPH). Actual peed depend on bottle type and label length.
Label Max Width
Catalog value: 195mm, can be rai ed according to requirement. Text reference li t 200mm.
Label Max Length
500mm
Label Roll Inner Diameter
Catalog value: Φ76.2mm. Text reference li t φ76mm.
Label Roll Outer Diameter
Φ380mm
Outline Size
Catalog value: L3000 × W1250 × H1500mm. Text reference li t L3048 × W1250 × H1500mm.
Power Supply
220V / 50Hz / 1500W
Main Labeling Structure
Star wheel infeed, triangle belt or pre ure belt label wrapping, ervo-driven label head and HMI control
Control and Detection
Siemen PLC, Pana onic ervo motor, German/Japane e en or , double pre ure roller label feeding and CNC-machined part are li ted in the upplied reference.
Optional Modules
Date printer, helf-life printer, vi ion in pection and rejection y tem, and cu tom non- tandard configuration
Working Principle
Bottle are fed and indexed by the tar wheel. When a bottle reache the labeling po ition, the y tem control the label head to di pen e the label onto the bottle body. The triangle belt or pre ure belt then wrap and pre e the label around the cylindrical urface for high- peed round bottle labeling.
Container Range
Round or cylindrical bottle , e pecially mall and medium round bottle . Final uitability hould be confirmed with bottle diameter, bottle height, label ize, bottle tability and target line peed.
Supported Bottle Types
Round bottle and cylindrical container . Bottle diameter and height range are not fully pecified in the upplied reference and hould be confirmed with real ample .
Supported Cap Types
Not cap- pecific. Thi model i elected by bottle hape, label po ition, label ize and required peed rather than cap type.
Supported Label Positions
Round bottle full-wrap labeling / high- peed cylindrical bottle labeling. For orientation or po itioning label , u e the po itioning ver ion in tead.
Air Requirement
Air ource requirement i not li ted in the upplied reference. Confirm compre ed air need if optional pneumatic or rejection module are elected.
Machine Dimensions
Catalog value: L3000 × W1250 × H1500mm. Text reference li t L3048 × W1250 × H1500mm; confirm final layout drawing before production.
Factory Layout Requirements
Re erve pace for the tar wheel infeed/outfeed, conveyor connection, label roll loading, operator acce , electrical cabinet and optional in pection or rejection tation. Final layout hould match the full packaging line peed and bottle flow direction.

Operation & Support

Day-to-day operation, maintenance, and project support.

Maintenance Points

Confirm bottle diameter, bottle height, label width, label length, label material and target output before changeover. The label head supports multi-direction adjustment and the HMI can store operating parameters for repeated production.

Operators Required

1 operator for regular operation; additional support may be needed during product changeover, sample testing, or line adjustment.

Safety Protection

Safety protection can include emergency stop buttons, overload protection, sensor-based product detection, missing-label or no-product no-label control, protective covers for key moving parts, and line stop coordination with upstream or downstream equipment when integrated into a complete packaging line.

Custom Options

Optional configurations include bottle positioning device, front/back label positioning, transparent label sensor, bottle separating device, product pressing device, coding printer, vision inspection, reject device, and connection with automatic bottle packaging lines.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right labeling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
