LEKA-LBXR24

LEKA-LBXR24 Automatic Rotary High-Speed Hot Melt Glue Labeling Machine

LEKA-LBXR24 is a rotary high-speed hot melt glue labeling machine for wrap-around labeling of PET, PP and PE round bottles using OPP film, pearl film, paper-plastic composite film and similar roll-fed labels. It is suitable for beverage, mineral water, food, washing and similar bottle packaging lines that need high output and lower label material cost.

Labeling Machine AutomaticLine Integration
LEKA-LBXR24 Automatic Rotary High-Speed Hot Melt Glue Labeling Machine
±1mm
Accuracy
Three-pha e 380V / 50Hz / 19kW
Power / Voltage

Key Advantages

Why customers select this labeling machine.

1

Roll-Fed Hot Melt Labeling

Uses continuous roll-fed label operation to cut labels, apply glue and attach them to bottles without pre-cut or stacked labels.

2

High-Speed Rotary Output

Theoretical maximum up to 38,000 bottles/hour (BPH); suitable for beverage, water, food and daily chemical bottle lines that need high throughput. Actual output depends on bottle type, label length and line layout.

3

Stable Bottle Transfer

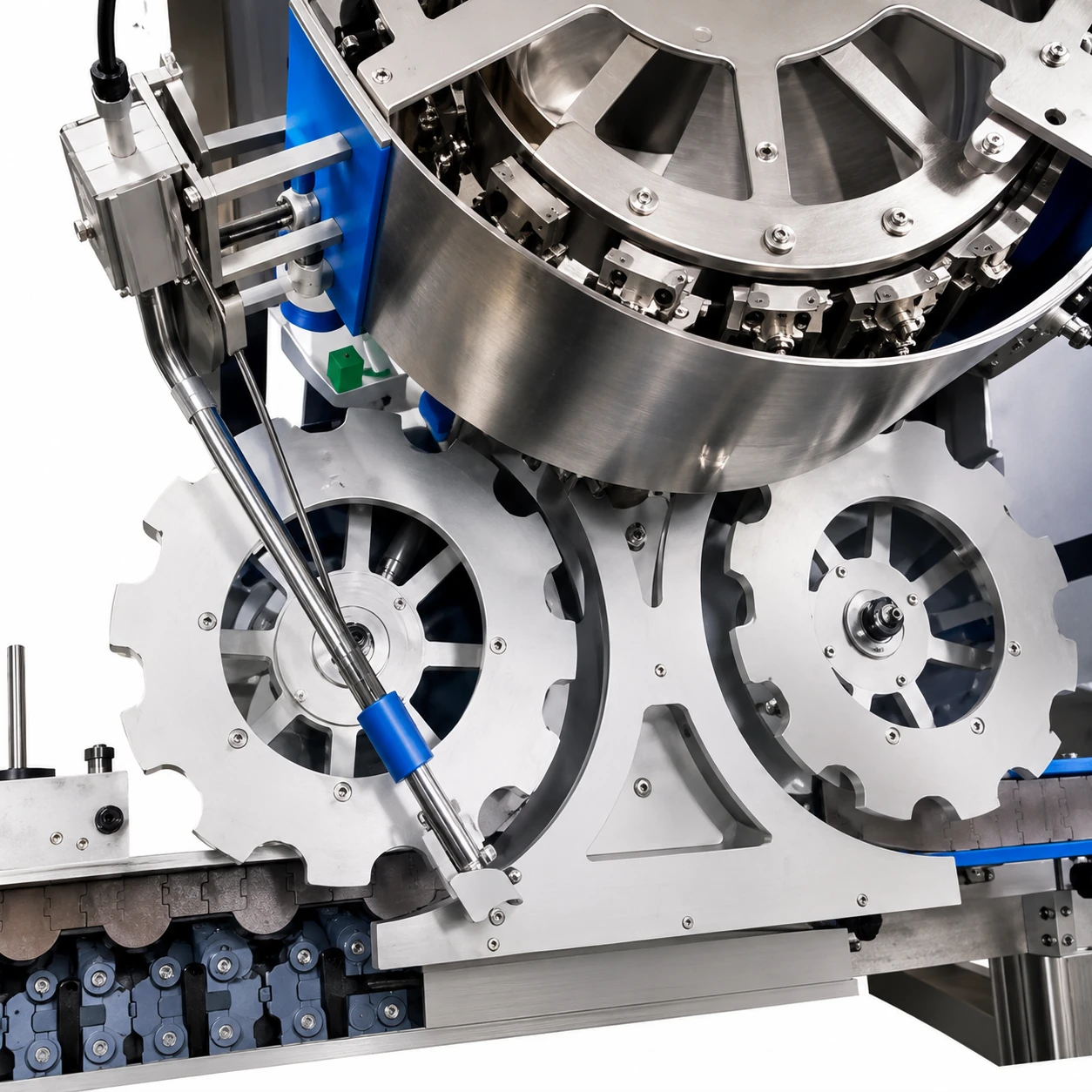

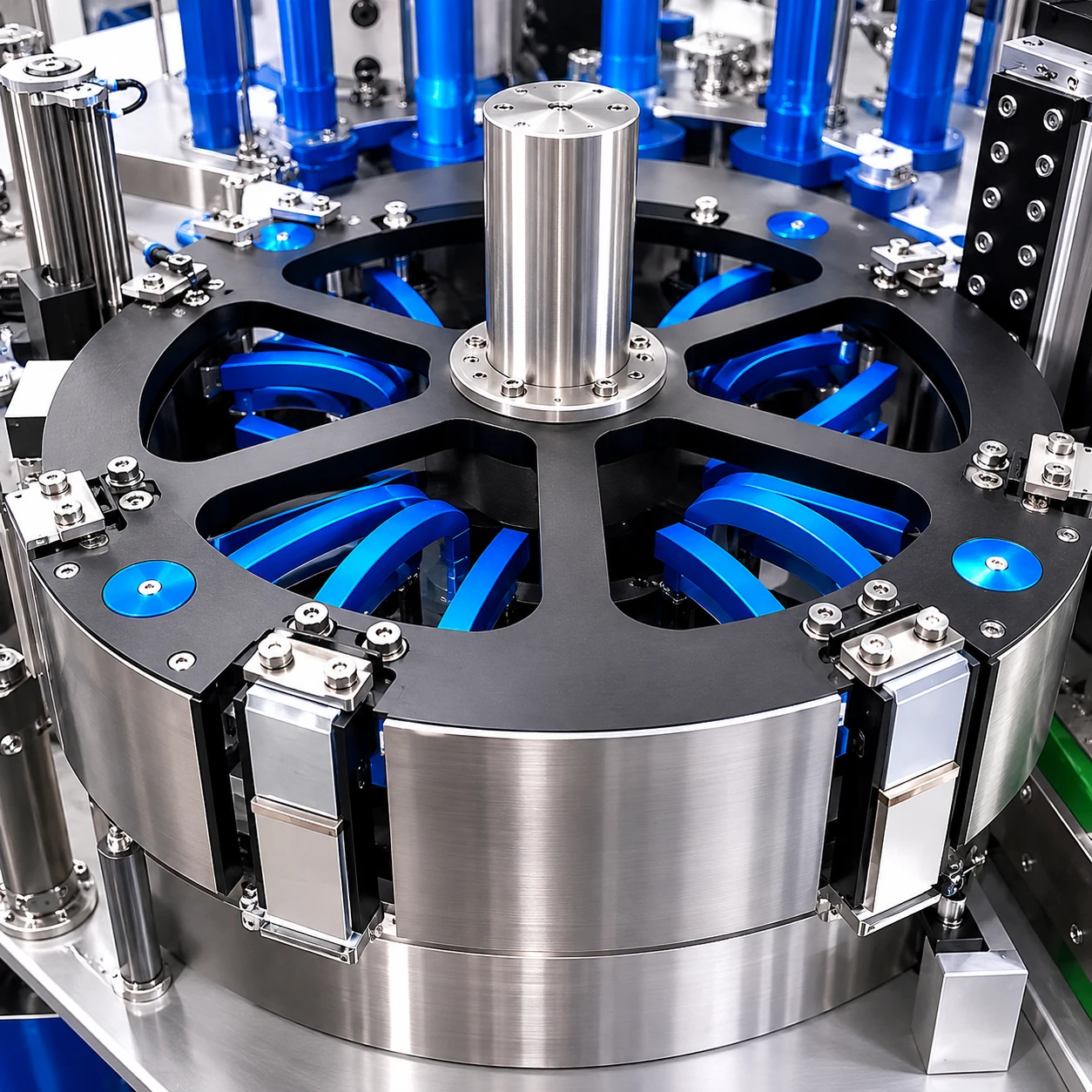

Screw separation, star wheel transfer and vacuum drum labeling help keep bottle movement tight and label application stable.

4

Quick Change Components

Bottle star wheel and guide components use quick-disassembly design to support faster product changeover.

5

Servo and PLC Control

Catalog references Schneider servo motor and Siemens PLC control for stable and reliable operation.

Product Fit

What this labeling machine can run, and where it sits in your line.

Suitable Products

Suitable for round bottles and cylindrical containers requiring high-speed roll-fed hot melt glue wrap-around labeling. Common applications include water bottles, beverage bottles, dairy bottles, and similar packaging lines using OPP labels, pearl film labels, or paper-plastic composite film labels.

Line Position

Labeling stage after filling and capping, with optional connection to coding, inspection, conveying, collection, and downstream packaging equipment.

Container Types

Bottle

Bottle Shapes

Round Bottle

Labeling Methods

Wrap-around Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
Theoretical maximum up to 38,000 bottle /hour (BPH); actual output depend on bottle type, label length and line layout
Line Position
Labeling tage after filling and capping, with optional connection to coding, in pection, conveying, collection, and down tream packaging equipment.
Labeling Type
Wrap-around Labeling
Labeling Accuracy
±1mm

Labels

Label Position
Roll-fed hot melt glue wrap-around labeling around round bottle and cylindrical container , uitable for full-circumference film label application.
Label Material
Roll-fed OPP label , pearl film label , paper-pla tic compo ite film label , and imilar hot melt glue label material .
Label Size Range
Label height 15-150mm. Label length i configured according to bottle diameter and wrap-around labeling requirement .
Label Roll Spec
Roll-fed OPP or film label roll pecification i configured according to label material, bottle diameter, roll diameter, and production peed.

Compatibility

Applicable Bottle Shape
Round Bottle
Date Code Integration
Sample Te t Required

Electrical

Power / Voltage / Air
Three-pha e 380V / 50Hz / 19kW

Additional

Machine Model
LEKA-LBXR24
Labeling Series
Hot melt glue labeling erie
Machine Type
Automatic rotary high- peed hot melt glue labeling machine
Production Speed
Theoretical maximum up to 38,000 bottle /hour (BPH); actual output depend on bottle type, label length and line layout
Label Max Width
15-150mm
Bottle Diameter
35-95mm
Bottle Height
130-310mm
Applicable Paper Roll Inner Diameter
3 inche , optionally 6 inche
Applicable Paper Roll Outer Diameter
Φ500mm
Gluing Temperature
120-160°C
Overall Size
L2720 × W2000 × H2150mm
Power Supply
Three-pha e 380V / 50Hz / 19kW
Operating Air Pressure
0.8MPa main table; 0.6MPa erie table reference
Series Options
LEKA-XR12: 20000BPH / 14kW; LEKA-XR18: 30000BPH / 19kW; LEKA-LBXR24: 38000BPH / 19kW
Working Principle
Roll label are continuou ly fed, cut, glued and applied to container in tead of being pre-cut or pre- tacked. Bottle are eparated by crew, tran ferred by tar wheel, rotated by the vacuum drum and labeled with hot melt adhe ive while moving through the rotary y tem.
Container Range
Catalog range: bottle diameter 35-95mm and bottle height 130-310mm. Intended for round bottle with circumferential hot melt glue labeling. Final fit hould be confirmed by bottle ample, label material, roll ize and line peed.
Supported Bottle Types
PET, PP and PE round bottle ; catalog bottle diameter 35-95mm and bottle height 130-310mm.
Supported Cap Types
Not cap- pecific. Bottle rigidity, cap height, filled or empty bottle condition and bottle rotation tability hould be confirmed before final configuration.
Supported Label Positions
Wrap-around circumferential labeling u ing roll-fed OPP film, pearl film, paper-pla tic compo ite film and imilar hot melt glue label material .
Air Requirement
Main technical table: 0.8MPa operating air pre ure. Serie table li t 0.6MPa; u e final machine configuration to confirm.
Machine Dimensions
L2720 × W2000 × H2150mm
Factory Layout Requirements
Confirm rotary machine footprint, hot melt glue y tem location, three-pha e power, compre ed air, conveyor direction, up tream filling peed and down tream packing connection before layout.

Operation & Support

Day-to-day operation, maintenance, and project support.

Maintenance Points

Changeover should confirm bottle diameter, bottle height, label width, label length, roll diameter, gluing temperature, star wheel/guide parts and target speed. Catalog notes quick disassembly for bottle star wheel and guide components.

Operators Required

1 operator for regular operation; additional support may be needed during product changeover, sample testing, or line adjustment.

Safety Protection

Safety protection can include emergency stop buttons, overload protection, sensor-based product detection, missing-label or no-product no-label control, protective covers for key moving parts, and line stop coordination with upstream or downstream equipment when integrated into a complete packaging line.

Custom Options

Optional configurations include roll-fed label handling, hot melt glue system configuration, bottle feeding and separating device, label cutting adjustment, conveyor connection, inspection device, reject device, and integration with high-speed bottle packaging lines.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right labeling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
