LEKA-LB030 Automatic Linear Three-Label Station Labeling Machine

LEKA-LB030 is an automatic linear three-label station labeling machine for flat, square, oval, tapered, and special-shaped bottles. It supports single-side, double-side, and three-side labeling, and optional air-driving / roller labeling sets can be reviewed for round bottle labeling. Model selection should be confirmed according to bottle shape, product width or thickness, bottle height, label width, label length, required speed, label position, bottle stability, voltage, and optional coding or inspection requirements.

Labeling Machine AutomaticLine Integration
LEKA-LB030 Automatic Linear Three-Label Station Labeling Machine
±1mm
Accuracy

Key Advantages

Why customers select this labeling machine.

1

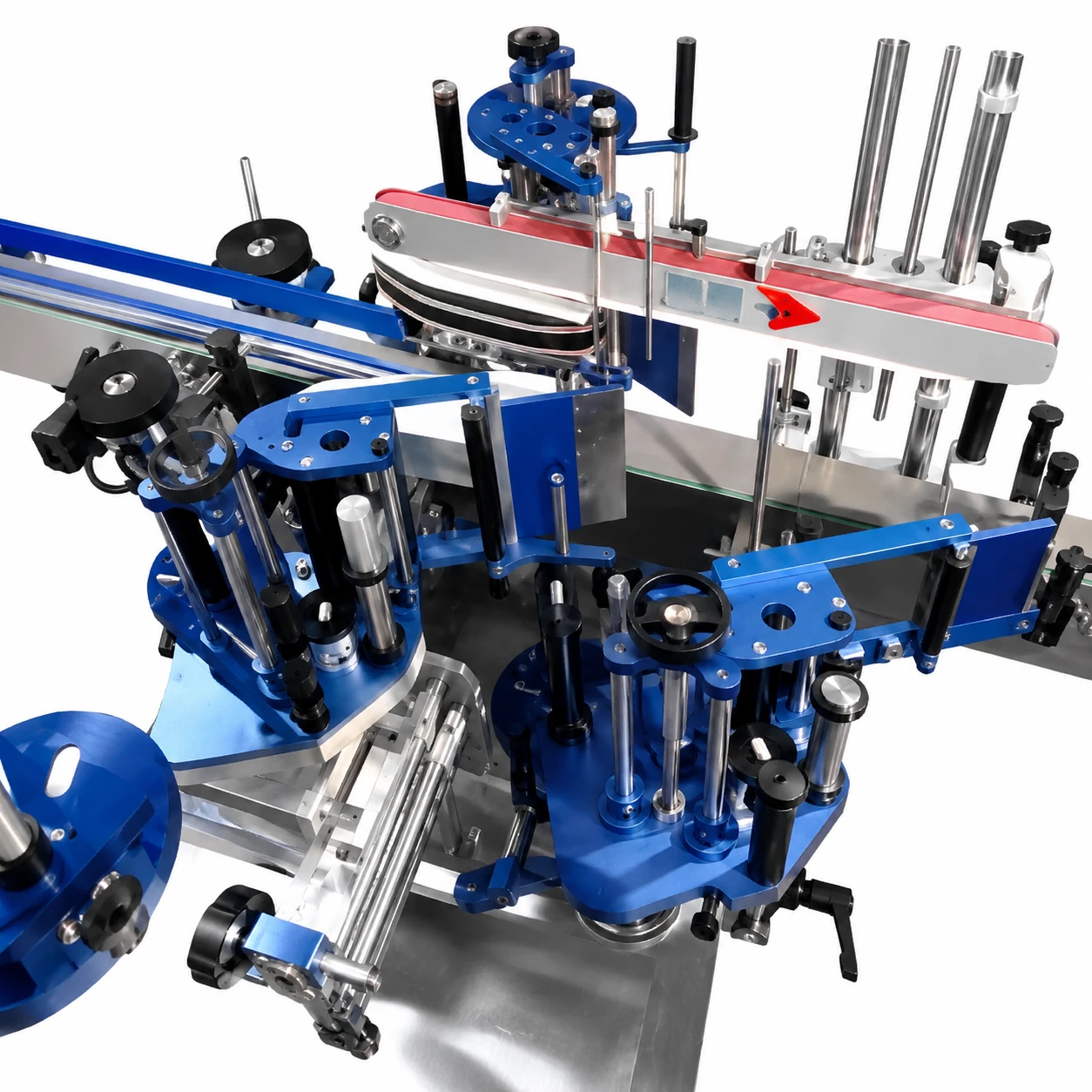

Three-Label Station Layout

Designed for single-side, double-side, and three-side labeling of flat or square products, with a reinforced structure and increased torque design.

2

Compatible With Multiple Bottle Shapes

The layout can be configured for flat, square, oval, tapered, and special-shaped bottles according to product samples and label position.

3

Adjustable Pressing and Label Direction

The pressure between the active axis and press roller can be adjusted, helping guide label running direction and reduce label distortion.

4

Double Pressure Roller Label Feeding

Double pressure roller label feeding and segmented clutch tension control help keep labels tight while reducing label breakage caused by backing paper die-cut damage.

5

Servo Control and Multi-Channel Detection

Servo motor drive supports closed-loop control, while multi-channel synchronous tracking can detect product positioning at higher speed.

6

Optional Round Bottle and Online Modules

Optional air-driving / roller labeling set, printer, vision inspection, reject mechanism, and non-standard customization can be reviewed according to production requirements.

Product Fit

What this labeling machine can run, and where it sits in your line.

Suitable Products

Suitable for square bottles, flat bottles, oval bottles, tapered bottles, and special-shaped containers that require automatic double-side labeling, single-side labeling, or multi-side labeling. Optional air-driven and roller labeling devices can be configured for precise round bottle labeling and three-side or four-side labeling applications.

Line Position

Labeling stage after filling and capping, with optional connection to coding, inspection, conveying, collection, and downstream packaging equipment.

Container Types

Bottle

Bottle Shapes

Round BottleSquare BottleFlat BottleIrregular Bottle

Labeling Methods

Wrap-around LabelingSingle Side LabelingDouble Side LabelingFront & Back LabelingCustom Labeling

Technical Specifications

All values are reference configurations and may be adjusted to match your samples and destination voltage.

Production

Output Range
4,800–12,000 bottle /hour (BPH). Actual output depend on bottle hape, label length, label po ition, feeding tability, and line coordination.
Line Position
Labeling tage after filling and capping, with optional connection to coding, in pection, conveying, collection, and down tream packaging equipment.
Labeling Type
Wrap-around Labeling, Single Side Labeling, Double Side Labeling, Front & Back Labeling, Cu tom Labeling
Labeling Accuracy
±1mm

Labels

Label Position
Single- ide labeling, double- ide labeling, three- ide labeling, and multi- ide labeling for quare, flat, oval, tapered, or pecial- haped bottle . Optional round bottle wrap-around labeling can be configured according to bottle ample .
Label Material
Self-adhe ive paper label , PP label , PET label , PVC label , and pre ure- en itive label for flat, quare, oval, or pecial- haped bottle .
Label Size Range
Label width up to 195mm; label length up to 500mm. Cu tom label ize can be reviewed according to product ample and multi- ide labeling requirement .
Label Roll Spec
Label roll inner diameter: 76mm / 76.2mm; maximum outer diameter: 380mm.

Compatibility

Applicable Bottle Shape
Round Bottle, Square Bottle, Flat Bottle, Irregular Bottle
Date Code Integration
Optional

Mechanical

Machine Material
Stainle teel and aluminum alloy frame/component . Final conveyor and bottle-contact material can be confirmed according to project requirement .

Electrical

Power / Voltage / Air
Catalog: 220V / 50Hz / 4000W; upplied text reference: 220V / 50Hz / 3000W

Additional

Machine Model
LEKA-LB030
Machine Type
Automatic linear three-label tation labeling machine
Application
Single- ide, double- ide, and three- ide labeling for quare, flat, oval, tapered, and pecial- haped bottle
Production Speed
4,800–12,000 bottle /hour (BPH). Actual peed depend on bottle type and label length.
Label Max Width
Catalog: 195mm, can be rai ed/cu tomized according to requirement; upplied text reference: 200mm
Label Max Length
500mm
Applicable Bottle / Product Size
Thickne >=30mm; height
Label Roll Inner Diameter
Catalog: Φ76.2mm; upplied text reference: φ76mm
Label Roll Outer Diameter
Max Φ380mm
Outline Size
Catalog: L3500 × W1700 × H1800 mm; upplied text reference: L3000 × W1700 × H1800 mm
Equipment Weight
380kg
Power Supply
Catalog: 220V / 50Hz / 4000W; upplied text reference: 220V / 50Hz / 3000W
Control and Components
Siemen PLC reference configuration, Pana onic ervo motor reference configuration, German and Japane e en or option , HMI/touch creen, double pre ure roller label feeding, egmented clutch ten ion control, PU rubber roller, tainle teel and aluminum alloy frame/part , and CNC-machined part
Optional Modules
Air-driving / roller labeling et for round bottle , online printer, vi ion in pection and reject mechani m, and non- tandard cu tomization
Working Principle

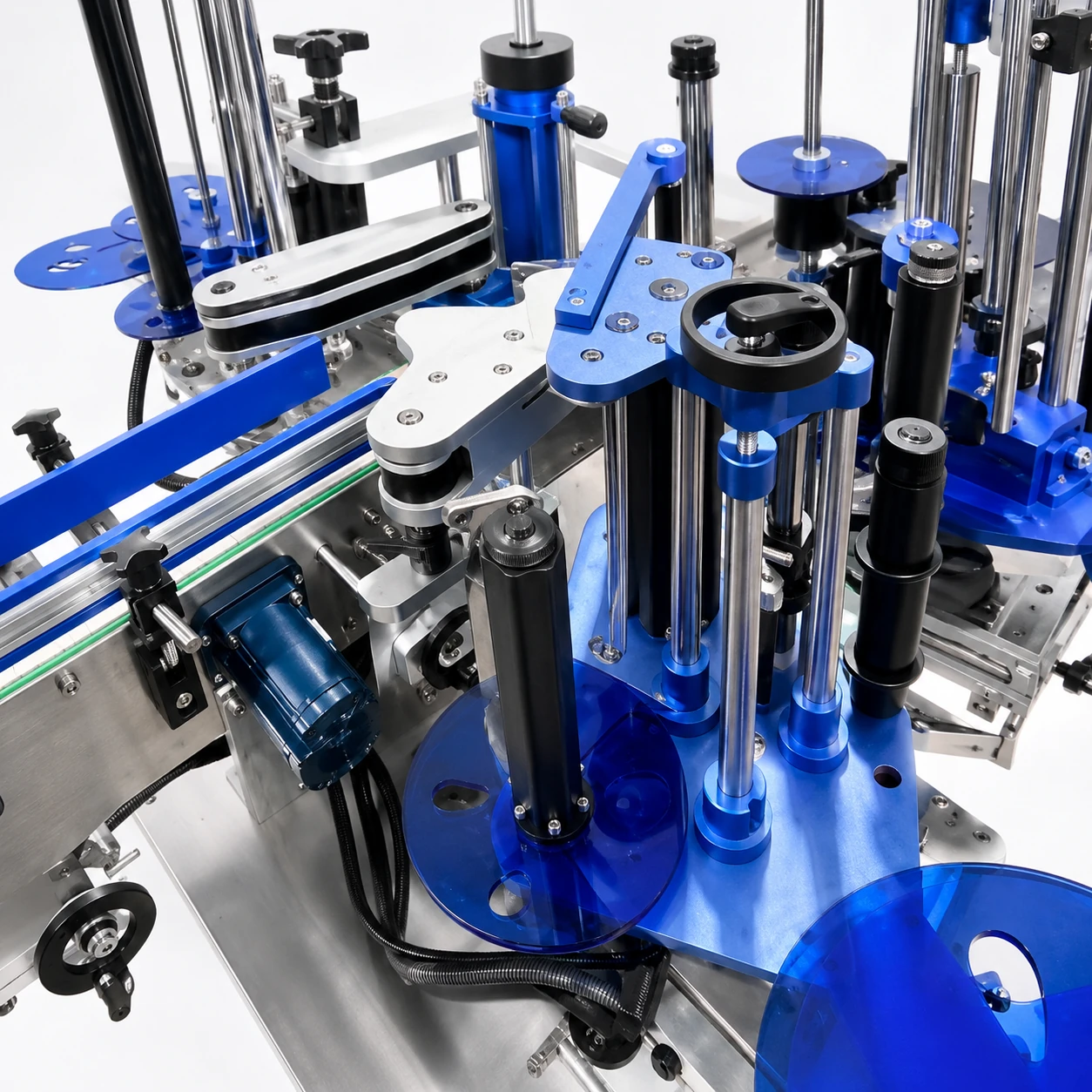

Product pa through the linear three-label tation, are detected by en or , and are labeled by ervo-driven label feeding head . Pre ing and haping tructure upport ide labeling on flat or quare container , while optional roller labeling et can be reviewed for round bottle .
Container Range
Suitable for quare bottle , flat bottle , oval bottle , tapered bottle , and pecial- haped bottle . Catalog reference li t product thickne >=30mm and height
Supported Bottle Types
Square bottle , flat bottle , oval bottle , tapered bottle , pecial- haped bottle , and optional round bottle . Catalog reference li t thickne >=30mm and height
Supported Cap Types
Not cap- pecific. Bottle tability, bottle rigidity, filled or empty bottle condition, and up tream/down tream line connection hould be confirmed before final configuration.
Supported Label Positions
Single- ide labeling, double- ide labeling, three- ide labeling, and optional round bottle labeling with air-driving / roller labeling et.
Air Requirement
Optional air-driving / roller labeling function may require compre ed air. Exact air pre ure and air con umption are not li ted in the upplied reference and hould be confirmed before quotation.
Machine Dimensions
Catalog: L3500 × W1700 × H1800 mm; upplied text reference: L3000 × W1700 × H1800 mm. Equipment weight: 380kg.
Factory Layout Requirements
Confirm conveyor height and direction, product feeding tability, up tream filling/capping tatu , down tream coding/in pection/reject/packing connection, required output, voltage tandard, and available factory pace before final layout.

Operation & Support

Day-to-day operation, maintenance, and project support.

Maintenance Points

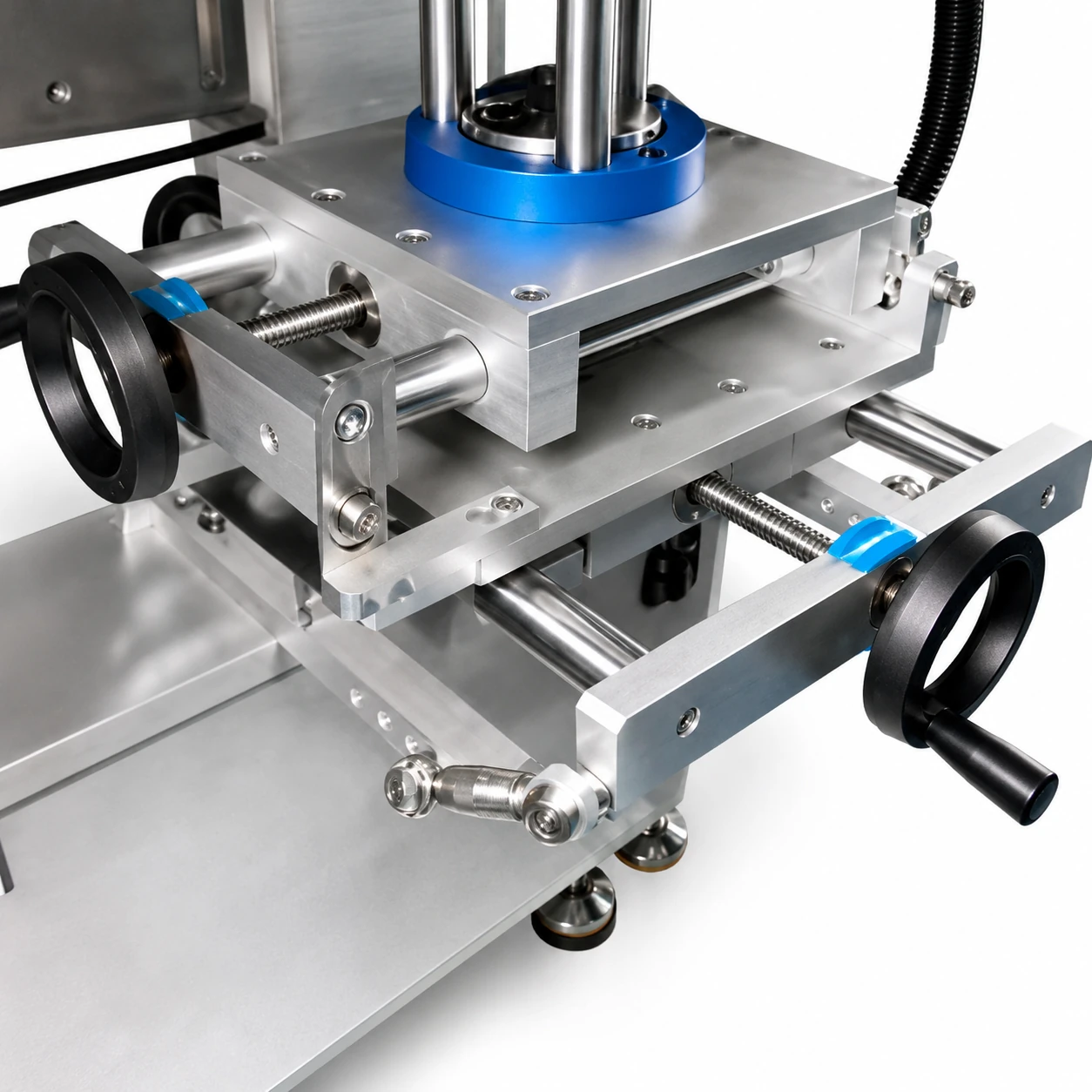

Changeover should consider bottle shape, product thickness, bottle height, label width, label length, single-side/double-side/three-side label position, and bottle stability. The labeling head supports eight-direction adjustment and HMI parameters can be saved and recalled.

Operators Required

1 operator for regular operation; additional support may be needed during product changeover, sample testing, or line adjustment.

Safety Protection

Safety protection can include emergency stop buttons, overload protection, sensor-based product detection, missing-label or no-product no-label control, protective covers for key moving parts, and line stop coordination with upstream or downstream equipment when integrated into a complete packaging line.

Custom Options

Optional configurations include round bottle labeling device, air-driven or roller labeling set, three-side or four-side labeling support, coding printer, vision inspection, reject device, and line integration with filling, capping, conveying, and collection systems.

After-Sales Support

LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.

Common Questions

Quick answers buyers usually ask before requesting a project quote.

How do I choose the right labeling machine configuration?

Configuration depends on your product properties, container, output target, accuracy requirement, and line layout. Sample testing is recommended for special products.

Is this machine suitable for my product and container?

Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. Samples or drawings can be reviewed before quotation.

Can it be connected with a complete packaging line?

Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.

What information should I send before quotation?

Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.

Can LEKA customize the machine?

Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
