LEKA Flat Labeling Machine Series

Flat Labeling Machine

LEKA flat labeling machine series is designed for automatic flat surface labeling on cartons, boxes, film bags, cards, square containers, and suitable round-bottle flat labeling applications. The series includes inline flat labeling, card feeding flat labeling, instant printing labeling, and standard automatic flat labeling models. Model selection should be confirmed according to product shape, product size, label width, label length, required speed, printing requirement, feeding method, and production line layout.

← Back to Labeling Machine Center

Labeling Speed

Up to 120 pcs/min

Labeling Accuracy

±1mm

Label Width

104-150mm, model dependent

Application

Flat surface labeling

Overview

The LEKA flat labeling machine series covers several automatic labeling structures for flat surfaces and product top surfaces. LEKA-LB070X is designed as an inline flat labeling machine for integration with production lines. LEKA-LB070S adds card or sheet feeding for cartons, film bags, paper boxes, and similar products before labeling. LEKA-LB070P combines flat labeling with industrial online printing for production date, shelf life, barcode, QR code, or batch information. LEKA-LB070 is a standard automatic flat labeling machine for general flat surface labeling applications.

Flat Surface Labeling Suitable for cartons, boxes, film bags, cards, square containers, and products that require top or flat-surface label application.

Flexible Model Selection Inline, card feeding, instant printing, and standard flat labeling models can be selected according to product feeding method and production layout.

Servo Labeling Control Servo motor drive supports closed-loop control, high-speed positioning, and stable label output during continuous production.

Optional Online Functions Printer, visual inspection, reject mechanism, and special non-standard designs can be reviewed according to production requirements.

Available Models

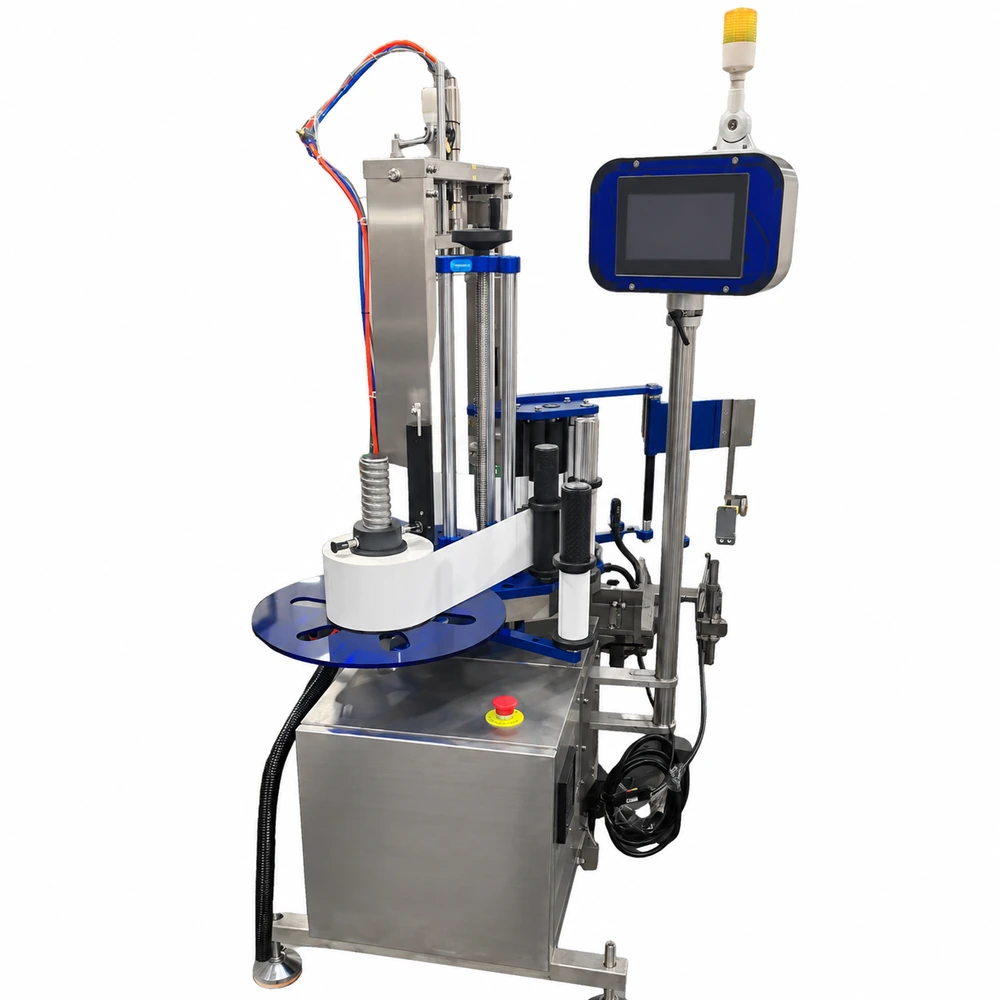

LEKA-LB070X

Automatic inline flat labeling machine for flat surface labeling on square or round products. Suitable for production line connection and continuous top labeling applications.

Inline typeMax. 120 pcs/min±1mm150mm label width

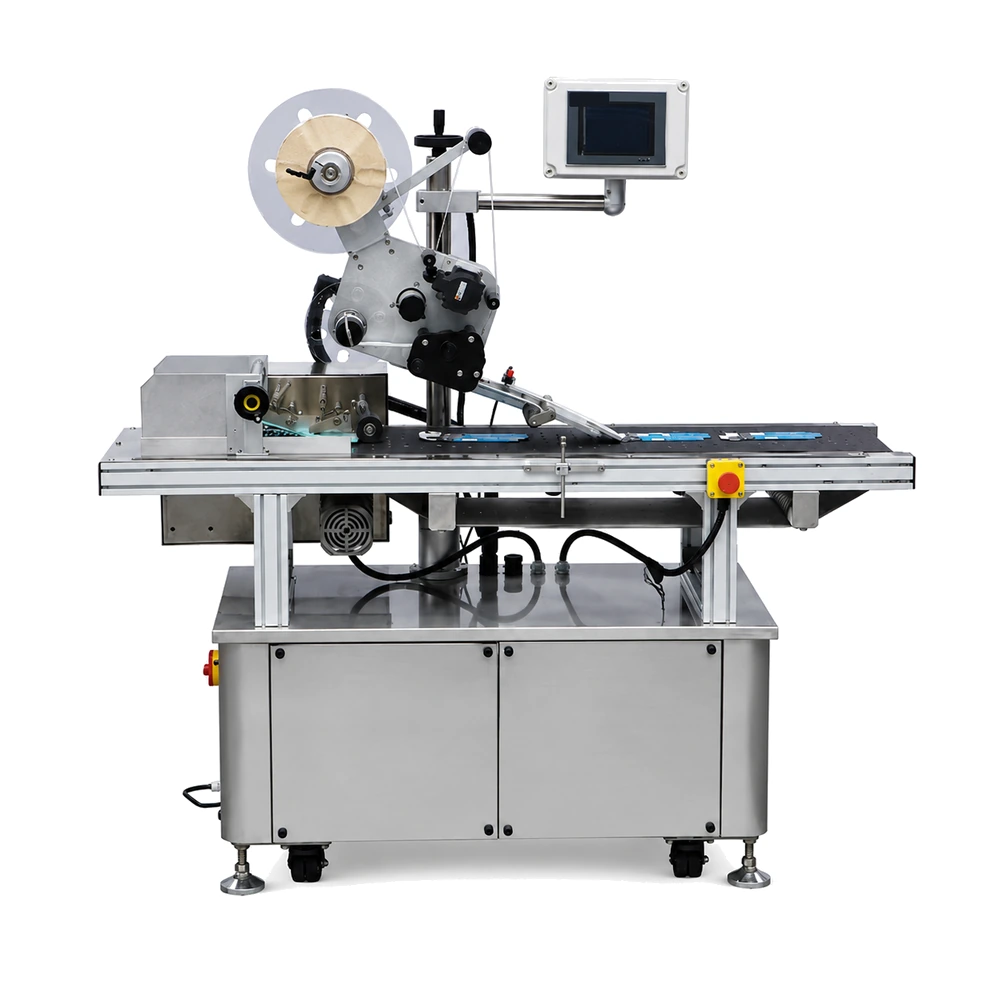

LEKA-LB070S

Automatic card feeding flat labeling machine for cartons, film bags, paper boxes, and similar sheet or flat products after automatic paging or feeding.

Card feeding typeMax. 120 pcs/min±1mm300mm label length

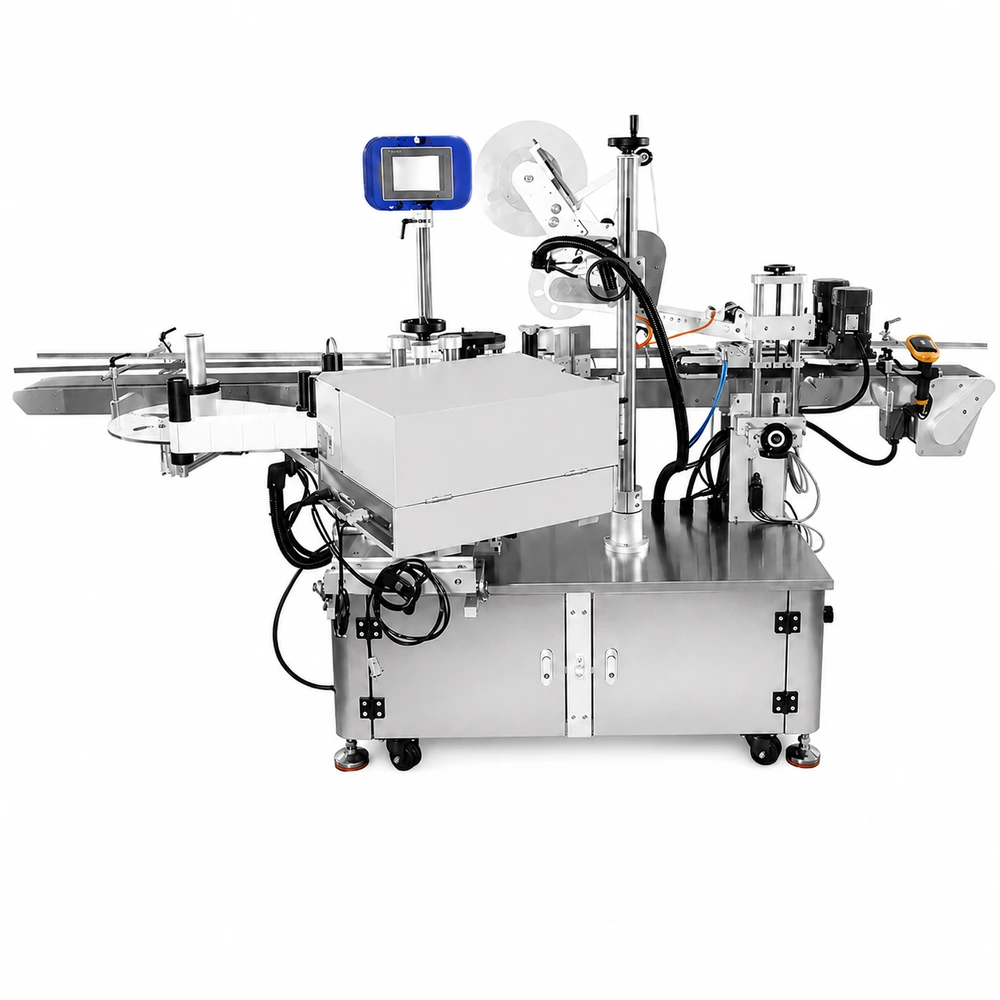

LEKA-LB070P

Instant printing labeling machine with industrial printer for online printing of production date, shelf life, barcode, QR code, and batch information during labeling.

Printing typeMax. 60 pcs/min±1mm104mm label width

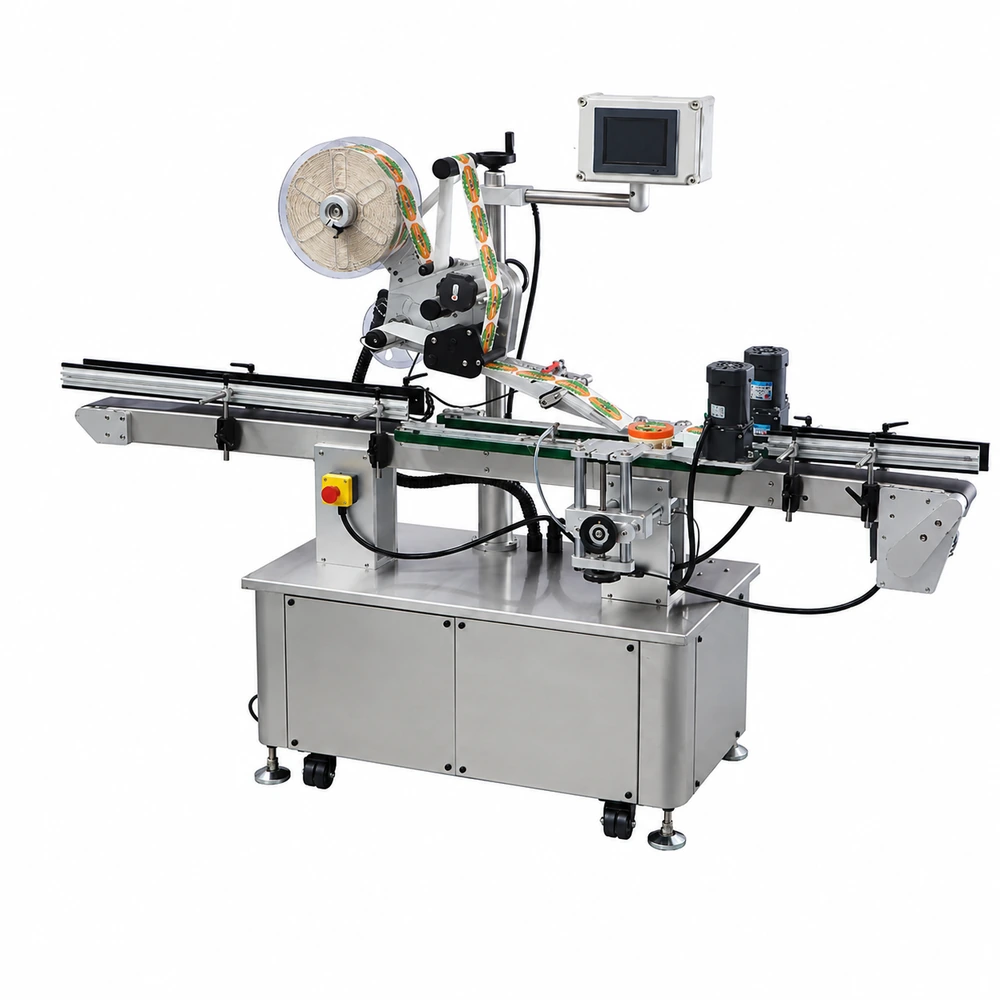

LEKA-LB070

Automatic flat labeling machine for general flat surface labeling. Product clamping belt mechanism helps improve labeling stability and labeling accuracy.

Standard flat typeMax. 120 pcs/min±1mm500mm label length

Model Comparison

Parameter	LEKA-LB070X	LEKA-LB070S	LEKA-LB070P	LEKA-LB070	Notes
Machine Name	Automatic Inline Flat Labeling Machine	Automatic Card Feeding Flat Labeling Machine	Instant Printing Labeling Machine	Automatic Flat Labeling Machine	Final model should be selected according to product shape, feeding method, printing requirement, label position, and production line layout.
Labeling Speed	Max. 120 pcs/min	Max. 120 pcs/min	Max. 60 pcs/min	Max. 120 pcs/min	Actual speed depends on product shape, label length, label position, feeding stability, and line coordination.
Labeling Accuracy	±1mm	±1mm	±1mm	±1mm	Accuracy should be confirmed with product samples and label material.
Label Max Width	150mm, customization required above this value	150mm, customization required above this value	104mm	150mm, customization required above this value	Label width affects label head configuration and printer selection for printing models.
Label Max Length	500mm	300mm	200mm	500mm	Longer labels may reduce speed and require sample verification.
Product Type	Square or round products requiring flat surface labeling	Paper boxes, film bags, cartons, cards, and flat products after paging	Square or round products requiring flat labeling with online printing	Flat surface products requiring automatic labeling	Product size and feeding stability should be checked before quotation.
Label Roll Inner Diameter	φ76mm	φ76mm	φ76mm	φ76mm	Standard label roll core size.
Label Roll Outer Diameter	Φ380mm	Φ380mm	Φ330mm	Φ380mm	Confirm roll size when using special label materials or printing functions.
Machine Size	L1000 × W1000 × H1800 mm	L2500 × W1100 × H1600 mm	L2000 × W1000 × H1700 mm	L2000 × W1000 × H1800 mm	Shown as L × W × H. Final layout may change after customization.
Power Supply	220V / 50Hz / 1000W	220V / 50Hz / 1500W	220V / 50Hz / 1500W	220V / 50Hz / 1500W	Other voltage standards should be confirmed before production.
Main Structure	Inline flat labeling structure	Automatic paging or card feeding with flat labeling	Industrial printer with flat labeling structure	Flat labeling with product clamping belt mechanism	Structure selection depends on feeding method, online printing requirement, label position, and line layout.

Key Component and Function Configuration

Component / Function	Configuration	Notes
PLC Control System	Siemens PLC reference configuration	Used for stable machine control, operation logic, and abnormal condition display through the HMI.
Labeling Servo Motor	Panasonic servo motor reference configuration	Supports closed-loop label feeding control, high-speed positioning, and stable label output.
Detection Sensors	German and Japanese sensor options	Used for product detection, label detection, and labeling accuracy control.
Label Feeding System	Double pressure roller label feeding with segmented clutch tension control	Designed to maintain label tension, reduce label breakage, remove label wrinkles, and improve labeling quality.
Secondary Swing Arm Clutch	Spring-type label feeding clutch with belt brake	Supports high-speed constant-tension label feeding for stable label output.
Label Head Adjustment	Eight-dimensional spatial adjustment	Allows flexible adjustment for different product sizes, label positions, and production requirements.
HMI Operation	Independent human-machine interface control	Operation parameters can be saved and recalled. Fault prompts guide troubleshooting.
Machine Frame and Parts	Stainless steel and aluminum alloy structure where applicable	Supports stable running and production environments that require clean machine construction.
Wear-Resistant Components	PU rubber roller, ultra-high molecular guide strip, and KHK spiral bevel gear reference configuration	Used to improve wear resistance, smooth operation, and machine service life.
CNC-Machined Parts	High-precision machined component matching	Helps maintain equipment accuracy, stable operation, and lower running noise.
Optional Printer	Date, shelf life, barcode, QR code, or batch information printing	Standard consideration for LEKA-LB070P and optional review for other suitable models.
Optional Vision Inspection	Inspection and reject mechanism	Can be added for defective product detection and removal according to quality-control requirements.
Non-Standard Engineering	Customized design according to special production requirements	Product samples, label samples, and line layout drawings are recommended for confirmation.

FAQ

Which flat labeling machine should I choose for inline production?

LEKA-LB070X is the inline flat labeling model and can be considered when the machine needs to connect with an existing production line. Final selection depends on product size, line speed, label position, and conveyor layout.

What is the difference between LEKA-LB070S and LEKA-LB070?

LEKA-LB070S includes automatic card or sheet feeding for cartons, film bags, paper boxes, and similar flat products. LEKA-LB070 is a standard automatic flat labeling machine for general flat surface labeling applications.

Which model supports online printing?

LEKA-LB070P is designed for instant printing labeling and can print production date, shelf life, barcode, QR code, batch number, and similar information during labeling.

Can the machine label cartons, bags, and boxes?

Yes. LEKA-LB070S is suitable for paper boxes, film bags, cartons, and other products after paging or feeding. Product samples should be checked to confirm feeding stability and label position.

Can LEKA add visual inspection and reject functions?

Yes. Visual inspection and reject mechanisms can be reviewed for defective product detection and removal according to production and quality-control requirements.

What information is needed before quotation?

Please provide product photos, product size, label width, label length, label roll size, required output, label position, online printing requirement, voltage standard, and whether the machine needs to connect with filling, capping, coding, inspection, or packing equipment.
