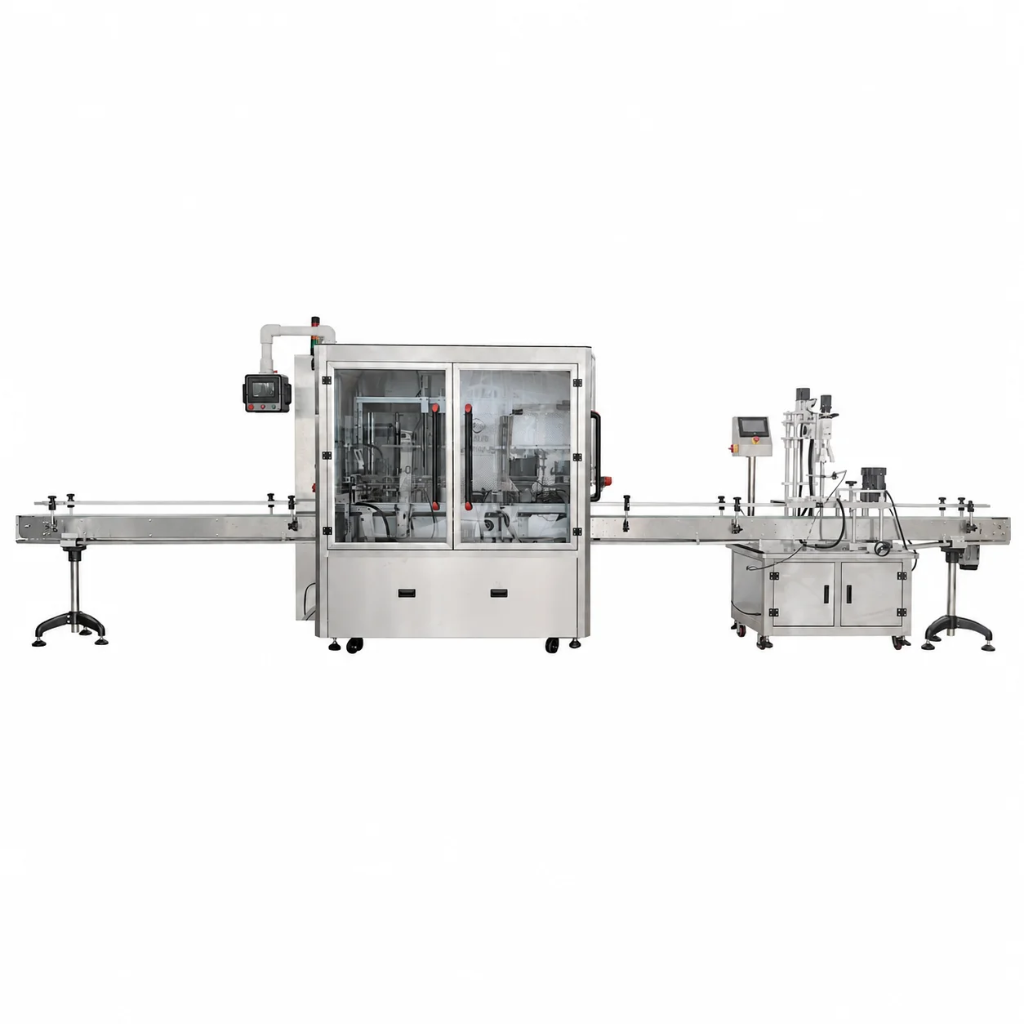

Liquid preparations, viscous liquids and oils requiring 6-head servo filling, anti-drip nozzles and integrated three-claw capping in one automatic line.
Use this section to judge whether the machine fits your product, container, speed target, and line integration plan.
Combines 6-head servo filling with a three-claw servo capping mechanism for projects that need filling and cap closing in one line.
The catalog reference lists 316L high-precision gear pump filling and extended anti-drip pneumatic nozzles for cleaner filling.
Servo lifting helps match bottle height and filling/capping position during automatic production.
Delta 7-inch touchscreen operation is listed, with Siemens or Xinjie options available for project confirmation.
Can connect with sealing, labeling, coding, conveyor and downstream packing equipment according to factory layout.
The template now displays the real compatibility fields from the equipment backend instead of only showing a generic labeling machine layout.
Liquid preparations, viscous liquids and oils requiring 6-head servo filling, anti-drip nozzles and integrated three-claw capping in one automatic line.
Filling and capping stage before sealing, labeling, coding and collection.
Review filling method, filling volume, product viscosity, accuracy, contact material, and optional cleaning requirements before quotation.
Pump Filling
20-1000ml / 500-5000ml
6 heads
Liquid preparations, viscous liquids and oils; final pump and nozzle configuration should be confirmed by sample testing.
Sample Testing Recommended
Supported
Sample Testing Recommended
Sample Testing Recommended
+/-1%
316L stainless steel contact parts according to catalog reference.
Optional
Values are shown from the equipment backend. Final configuration should be confirmed with product samples, container drawings, output target, and destination voltage.
This section uses the fields that were hidden in the old template, so buyers can understand not only the machine, but also daily operation and project support.
Changeover depends on bottle size, filling volume, product viscosity and line connection. For similar containers, operators mainly adjust filling settings, nozzle height, guides and conveyor position.
Clean the hopper or product inlet, piston or pump dosing parts, hoses and filling nozzles after production. Sticky or particle-containing products should be cleaned before drying or settling.
Routine cleaning, nozzle inspection, gear pump maintenance, capping head inspection and conveyor changeover checks should be planned according to product and cap samples.
Recommended spare parts include filling nozzles, piston or pump seals, O-rings, hoses, valves, clamps, sensors and commonly used pneumatic or electrical components.
Usually 1-2 operators depending on bottle feeding, cap supply, product changeover and downstream collection requirements.
Safety configuration can include emergency stop, electrical protection, overload protection and protective covers for moving parts according to the final machine layout.
Filling volume, pump type, nozzle length, capping torque, cap feeding, labeling, coding and conveyor layout can be customized after sample review.
LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.
This machine can be matched with upstream and downstream equipment according to your product, bottle, cap, label, output, and factory layout.
LEKA-BU is a bottle unscrambler and bottle receiving machine for feeding empty bottles into an automatic packaging line. The turntable uses variable-frequency stepless speed control so...
The LEKA-CE cap elevator is used to lift different cap types from the lower hopper to the cap collection or sorting section of an automatic capping...
LEKA-CW is an inline checkweigher for automatic weight detection, upper and lower limit judgment, and overweight or underweight rejection in packaging lines. It can be matched...
Filling and Capping Machine
Liquid preparations, viscous liquids and oils requiring 6-head servo filling, anti-drip nozzles and integrated three-claw capping in one automatic line.
Liquid preparations, viscous liquids and oils requiring 6-head servo filling, anti-drip nozzles and integrated three-claw capping in one automatic line.
| Model | LEKA-FLX-6TSFA |
|---|---|
| Machine Series | Filling and Capping Machine |
| Filling Range | 20-1000ml / 500-5000ml |
| Filling Heads | 6 heads |
| Output Range | 1800-2600 bottles/hour based on 500ml reference volume |
| Filling Method | 316L high-precision gear pump with servo filling control |
| Power | Confirm according to final filling and capping configuration |
| Machine Size | 8000 x 1200 x 1700 mm reference configuration |
| Control System | Delta 7-inch touchscreen with Chinese/English operation; Siemens or Xinjie options can be reviewed. |
| Filling Range | 20-1000ml / 500-5000ml |
| Output Range | 1800-2600 bottles/hour based on 500ml reference volume |
| Applicable Materials | Liquid preparations, viscous liquids, oils |
| Filling Method | Servo filling, customizable to product requirements |
| Capping Method | Three-claw servo capping |
| Electrical Components | Xingchen, Airtac, Xinjie, Panasonic, SICK reference configuration |
| Machine Size | 8000 x 1200 x 1700 mm reference configuration |
LEKA Pack Line can match this equipment with sealing, labeling, coding, conveyor, collection and downstream packing systems according to product samples, container size, cap type, target output and factory layout.
Filling structure depends on viscosity, foaming, particles, corrosiveness, filling volume, accuracy target, container mouth size, and required output. Sample testing is recommended for special liquids.
Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. LEKA can review samples or drawings before quotation.
Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.
Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.
Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
LEKA engineers will review your product, bottle, cap, label, output, automation level, and factory layout, then recommend a suitable machine or complete line configuration.
Used to confirm viscosity, foaming, particles, corrosiveness and suitable filling method.
Used to check filling head spacing, nozzle type, capping structure and conveyor handling.
Used to select filling heads, pump structure, capping method, line speed and labor arrangement.
Used to plan power, machine size, conveyor direction and line integration.
