Chemical liquids, disinfectants, cleaning liquids and corrosive products packed in straight-mouth or slanted-mouth bottles.
Use this section to judge whether the machine fits your product, container, speed target, and line integration plan.
Designed for chemical liquids that require corrosion-resistant contact parts.
Suitable for 50ml-1000ml chemical liquid bottle filling.
Can be reviewed for straight-mouth and slanted-mouth bottle applications.
The template now displays the real compatibility fields from the equipment backend instead of only showing a generic labeling machine layout.
Chemical liquids, disinfectants, cleaning liquids and corrosive products packed in straight-mouth or slanted-mouth bottles.
Filling stage before capping, sealing, labeling, coding and collection.
Review filling method, filling volume, product viscosity, accuracy, contact material, and optional cleaning requirements before quotation.
Anti-Corrosion Filling
50ml-1000ml
2 heads
Low to medium viscosity liquid products; confirm by sample before final quotation.
Sample Testing Recommended
Optional
Sample Testing Recommended
Supported
+/-1%
Anti-corrosion pump and compatible contact parts selected by sample.
Optional
Values are shown from the equipment backend. Final configuration should be confirmed with product samples, container drawings, output target, and destination voltage.
This section uses the fields that were hidden in the old template, so buyers can understand not only the machine, but also daily operation and project support.
Changeover depends on bottle size, filling volume, product viscosity and line connection. For similar containers, operators mainly adjust filling settings, nozzle height, guides and conveyor position.
Clean product-contact parts according to chemical compatibility. Rinse the filling path, hoses and nozzles after production, and confirm cleaning liquid compatibility before final use.
Routine cleaning, nozzle inspection, pump maintenance and changeover checks should be planned according to product viscosity and production frequency.
Recommended spare parts include anti-corrosion filling nozzles, compatible hoses, seals, O-rings, valve parts, sensors and commonly used electrical components.
Usually 1-2 operators depending on bottle feeding, product supply, downstream capping/labeling connection and factory layout.
Safety configuration can include emergency stop, electrical protection, anti-corrosion liquid-contact configuration and protective covers for moving parts according to the final machine layout.
Can be connected with capping, sealing, labeling, coding, conveyor and collection systems according to product, bottle, output and factory layout.
LEKA Pack Line supports each packaging project from early configuration review to after-sales follow-up. Before production, we help review the customer's product type, container samples, filling volume, output target, voltage, cap type, labeling method, automation level and factory layout, so the machine or full line configuration matches real production needs. Before shipment, we can support sample confirmation, factory testing, test videos, export document coordination and spare parts preparation. After the machine arrives, support includes installation and commissioning videos, operator guidance, remote video diagnosis, troubleshooting assistance, spare parts dispatch and after-sales follow-up. Each machine includes a one-year free replacement service for damaged non-consumable spare parts from the date the customer signs for receipt of the machine, excluding normal wear parts, consumables and damage caused by improper operation. When needed, on-site technical service can also be discussed according to the project situation.
This machine can be matched with upstream and downstream equipment according to your product, bottle, cap, label, output, and factory layout.
LEKA-BU is a bottle unscrambler and bottle receiving machine for feeding empty bottles into an automatic packaging line. The turntable uses variable-frequency stepless speed control so...
The LEKA-CE cap elevator is used to lift different cap types from the lower hopper to the cap collection or sorting section of an automatic capping...
LEKA-CW is an inline checkweigher for automatic weight detection, upper and lower limit judgment, and overweight or underweight rejection in packaging lines. It can be matched...

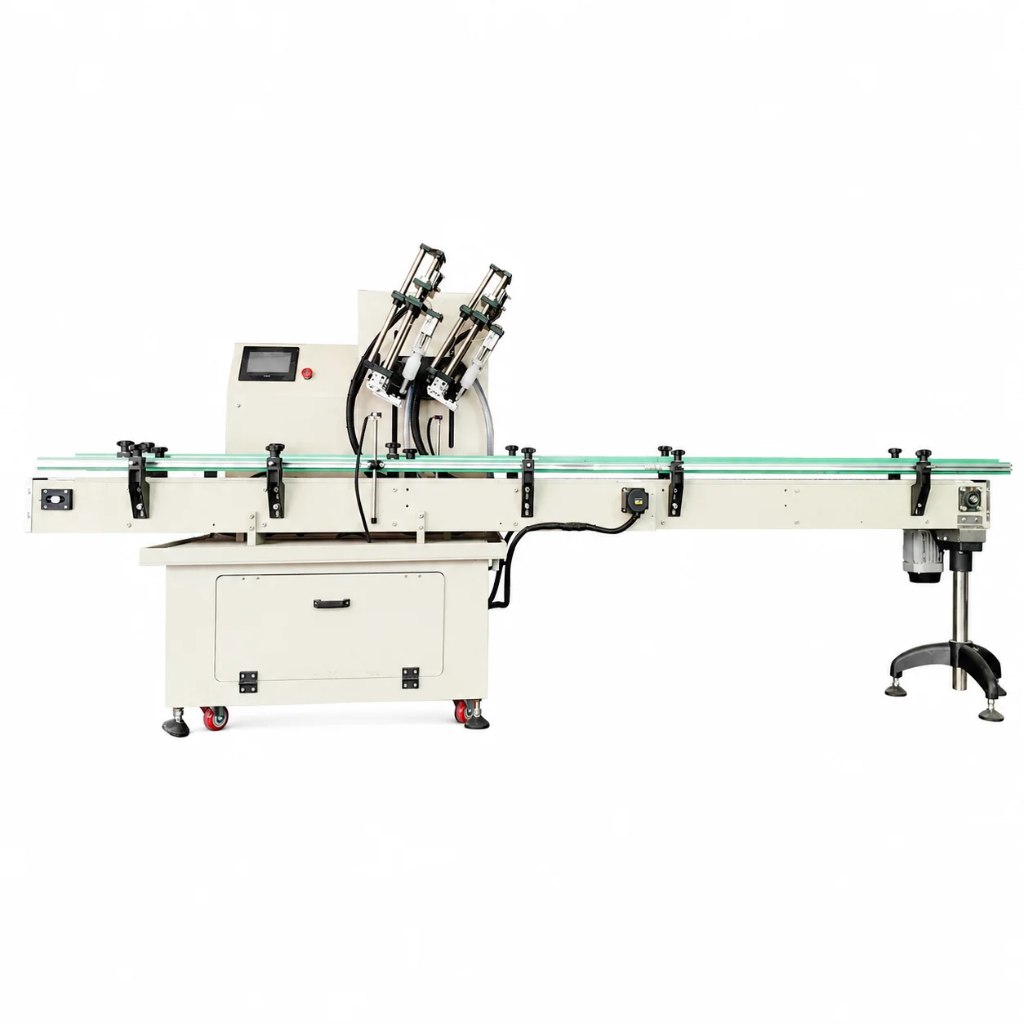

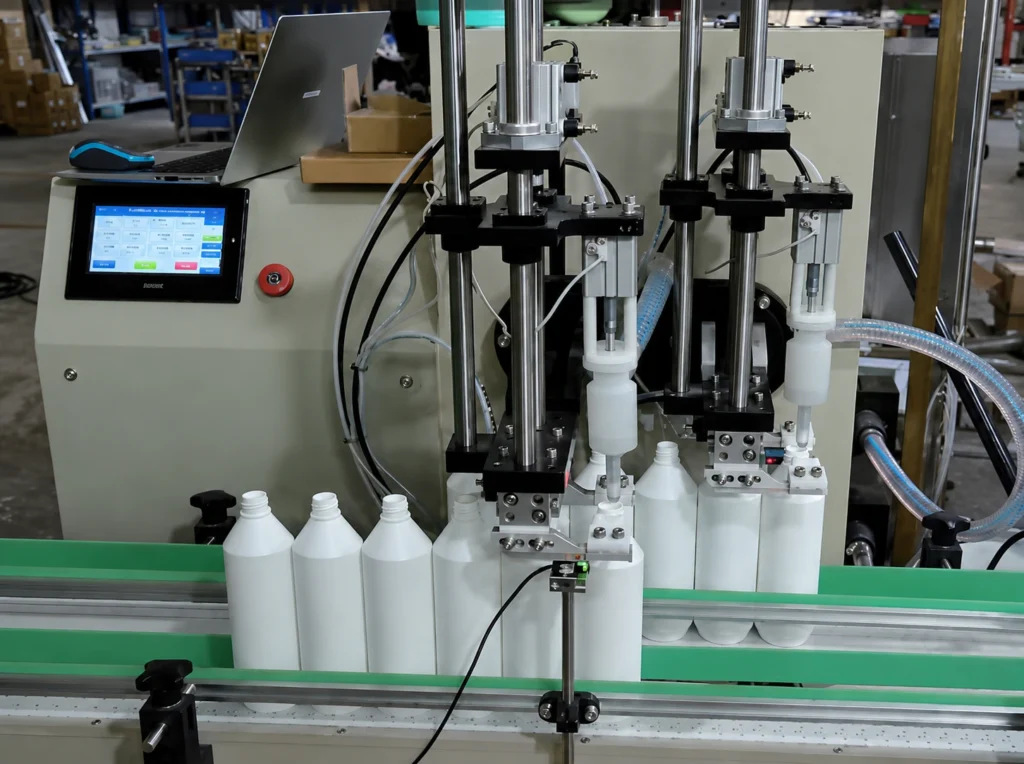

Anti-Corrosion Filling Machine
Chemical liquids, disinfectants, cleaning liquids and corrosive products packed in straight-mouth or slanted-mouth bottles.
Chemical liquids, disinfectants, cleaning liquids and corrosive products packed in straight-mouth or slanted-mouth bottles.
| Model | LEKA-FLFF-02-A |
|---|---|
| Machine Series | Anti-Corrosion Filling Machine |
| Filling Range | 50ml-1000ml |
| Filling Heads | 2 heads |
| Output Range | 1000-1800 bottles/hour |
| Filling Method | Anti-corrosion pump |
| Power | 2.0KW |
| Machine Size | 4000 x 800 x 1600 mm |
| Control System | PLC and touchscreen operation |
| Filling Range | 50ml-1000ml |
| Output Range | 1000-1800 bottles/hour |
| Power | 2.0KW |
| Machine Size | 4000 x 800 x 1600 mm |
LEKA Pack Line can match this filling machine with capping, sealing, labeling, coding, conveyor and collection systems according to product samples, container size, target output and factory layout.
Filling structure depends on viscosity, foaming, particles, corrosiveness, filling volume, accuracy target, container mouth size, and required output. Sample testing is recommended for special liquids.
Suitability should be confirmed with your product type, container shape, size, cap or label requirement, output target, and factory layout. LEKA can review samples or drawings before quotation.
Yes. This equipment can be configured for line integration with filling, capping, labeling, coding, conveying, collection, and end-of-line packaging machines according to the project.
Please send product details, bottle or container photos, size drawings, target output, voltage, automation level, and the process you want to connect before and after this machine.
Yes. Custom options can be reviewed according to samples, required speed, product properties, container size, line direction, available workshop space, and budget.
LEKA engineers will review your product, bottle, cap, label, output, automation level, and factory layout, then recommend a suitable machine or complete line configuration.
Used to confirm viscosity, foaming, particles, corrosiveness and suitable filling method.
Used to check filling head spacing, nozzle type and conveyor handling.
Used to select filling heads, pump structure, line speed and labor arrangement.
Used to plan power, machine size, conveyor direction and line integration.
